General data

  • Manufacturer: Nordex (Allemagne)
  • Model: N117/2400
  • Rated power: 2,400 kW
  • Rotor diameter: 117 m
  • No more available
  • Wind class: IEC IIIa
  • Offshore model: no
  • Swept area: 10,752 m²
  • Specific area: 4.48 m²/kW
  • Number of blades: 3
  • Power control: Pitch
  • Commissioning: 2012

Rotor

  • Minimum rotor speed: 7,5 rd/min
  • Maximum rotor speed: 13,2 rd/min
  • Cut-in wind speed: 3 m/s
  • Rated wind speed: 11 m/s
  • Cut-off wind speed: 20 m/s

Gear box

  • Gear box: yes
  • Stages: 4

Generator

  • Type: ASYNC DF
  • Number: 1
  • Voltage: 660 V

Tower

  • Minimum hub height: 91 m
  • Maximum hub height: 141 m

N117/2400 - Nordex - 2400 kW
Laurent Jobart - Alpha Wind

Power curve




Wind farms in the database


Full list (261 wind farms)



Pictures

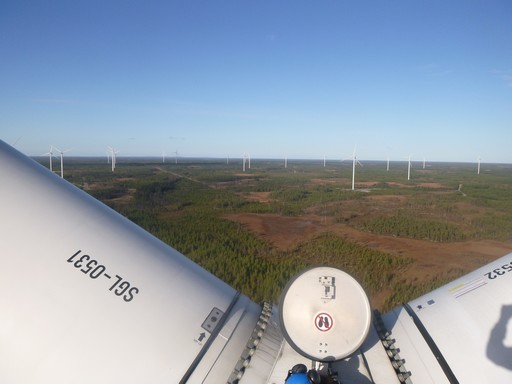

Turbine 12713
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 12713 - Date: 2016

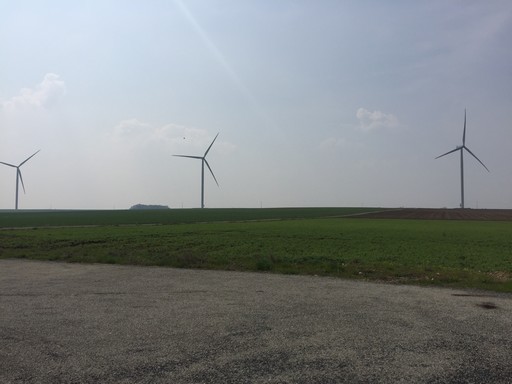

Turbine 12821
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 12821 - Date: 2017

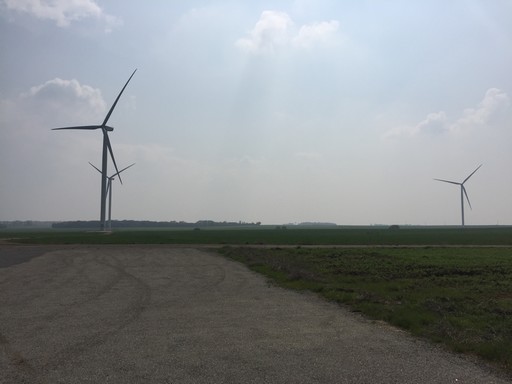

Turbine 12822
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 12822 - Date: 2017

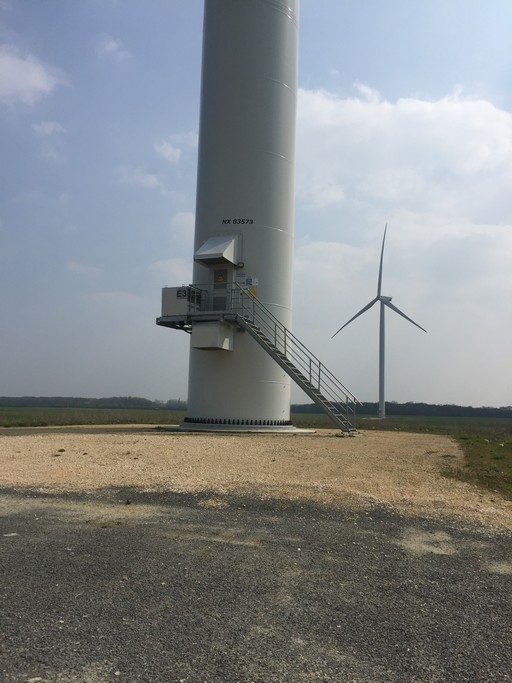

Turbine 12823
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 12823 - Date: 2017

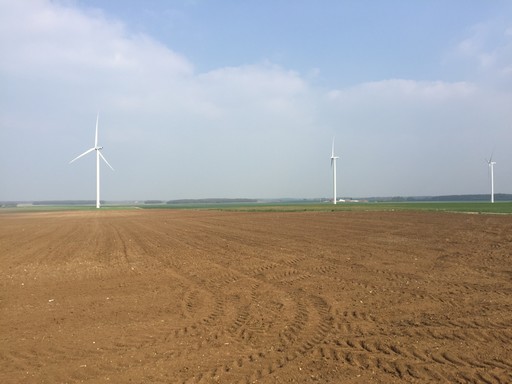

Turbine 12824
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 12824 - Date: 2017

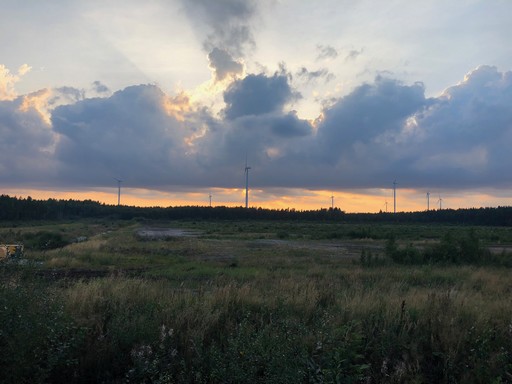

Turbine 13571
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13571 - Date: 2018

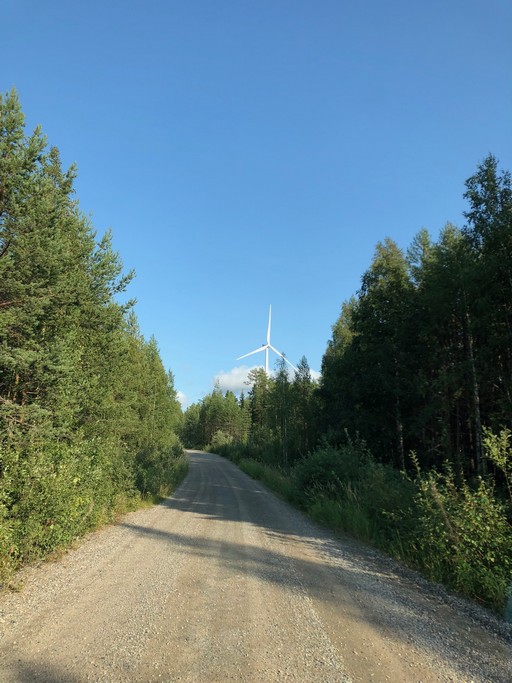

Turbine 13572
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13572 - Date: 2018
Turbine 13573
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13573 - Date: 2018

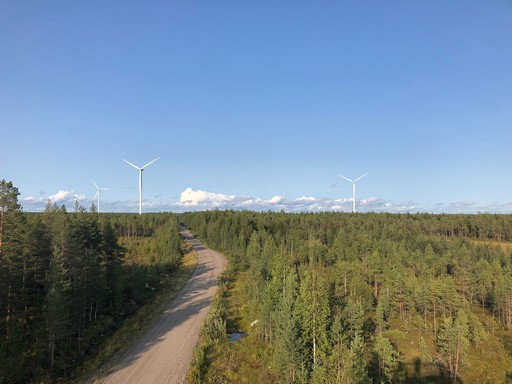

Turbine 13574
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13574 - Date: 2018

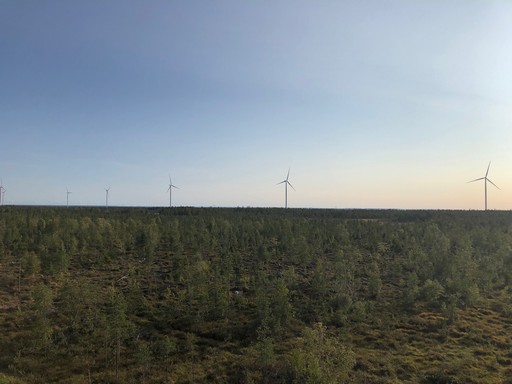

Turbine 13575
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13575 - Date: 2018

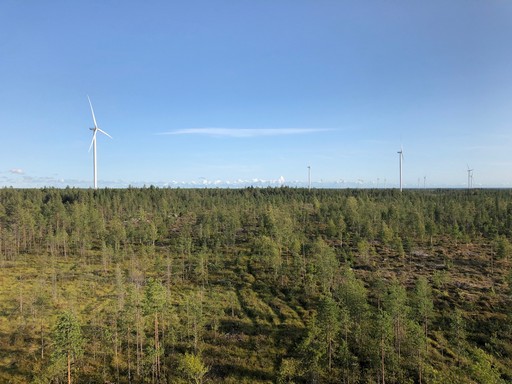

Turbine 13576
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13576 - Date: 2018

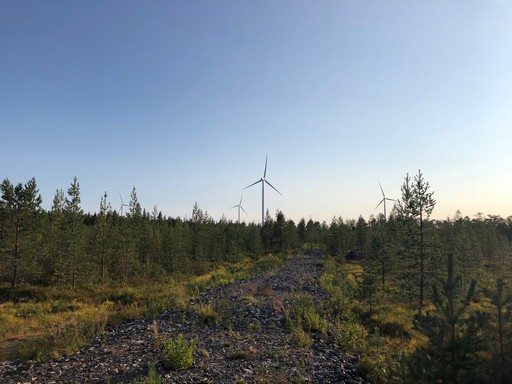

Turbine 13577
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13577 - Date: 2018

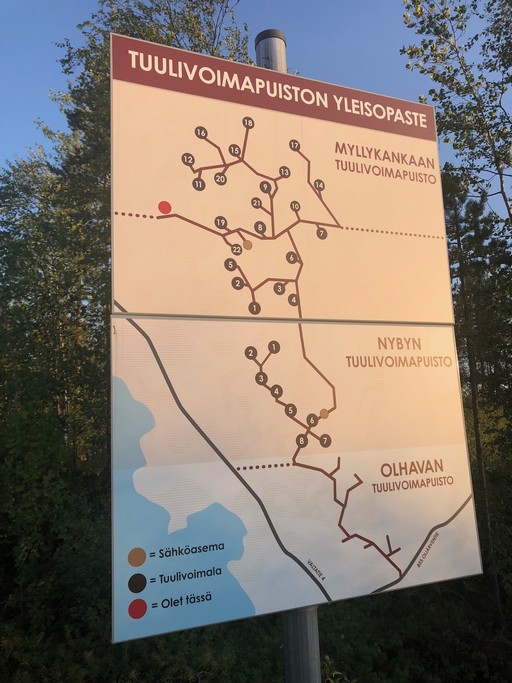

Turbine 13578
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13578 - Date: 2018

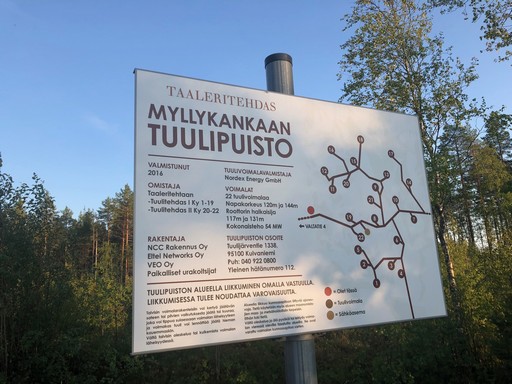

Turbine 13579
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13579 - Date: 2018

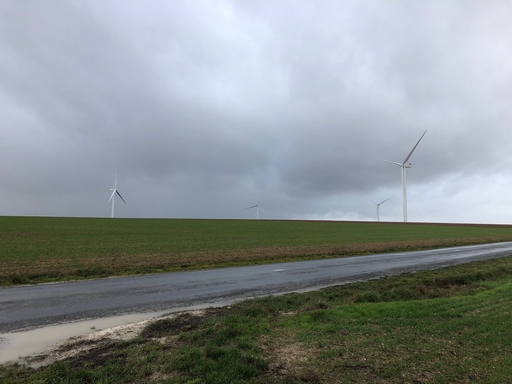

Turbine 13684
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13684 - Date: 2018

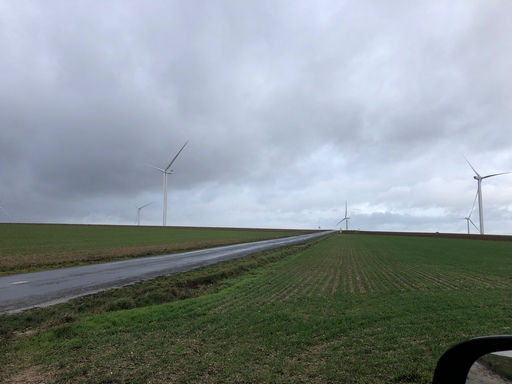

Turbine 13685
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13685 - Date: 2018

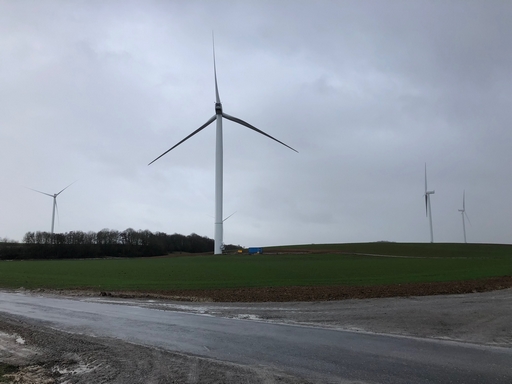

Turbine 13686
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13686 - Date: 2018

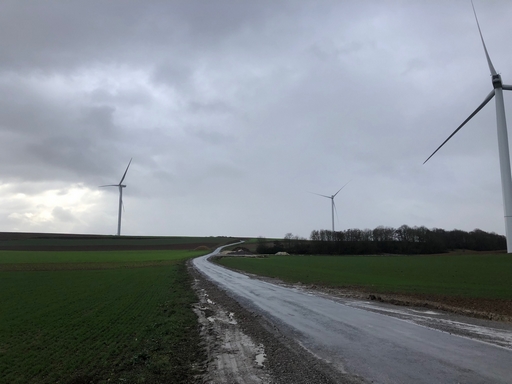

Turbine 13687
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13687 - Date: 2018

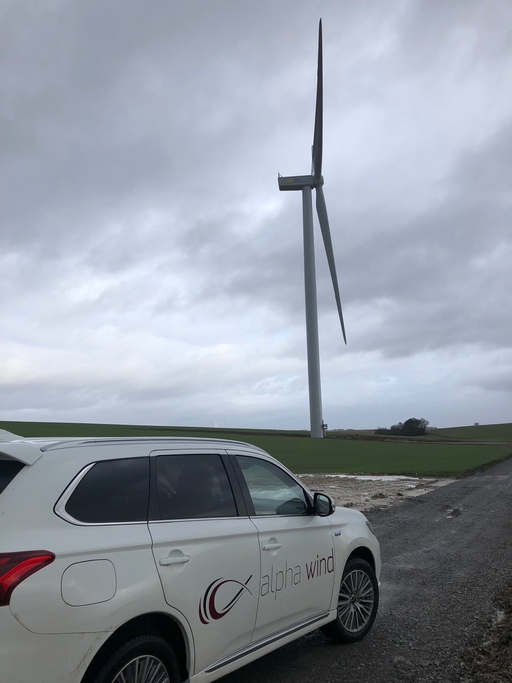

Turbine 13688
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 13688 - Date: 2018

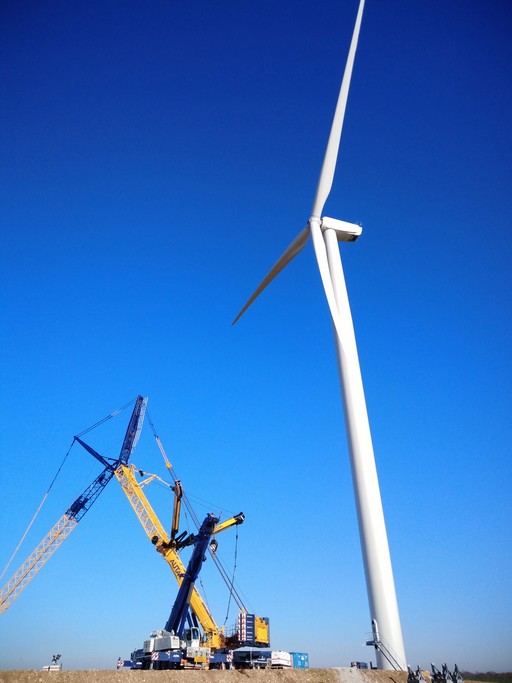

Turbine 14250
Author: Jacky Boireau - License: All right reserved
Picture reference: 14250 - Date: 2020

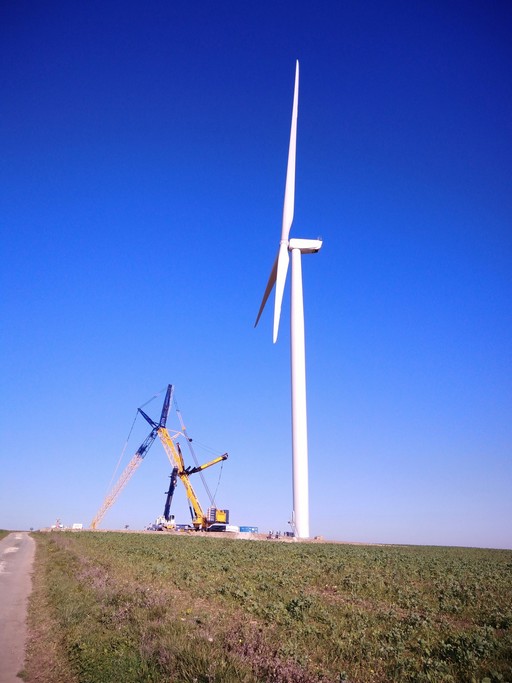

Turbine 14251
Author: Jacky Boireau - License: All right reserved
Picture reference: 14251 - Date: 2020

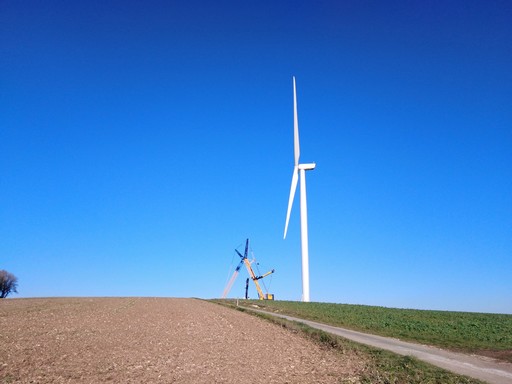

Turbine 14252
Author: Jacky Boireau - License: All right reserved
Picture reference: 14252 - Date: 2020

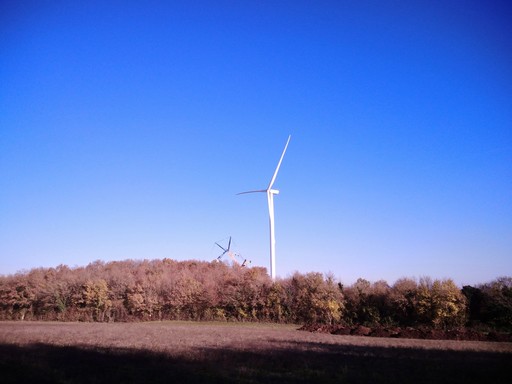

Turbine 14253
Author: Jacky Boireau - License: All right reserved
Picture reference: 14253 - Date: 2020

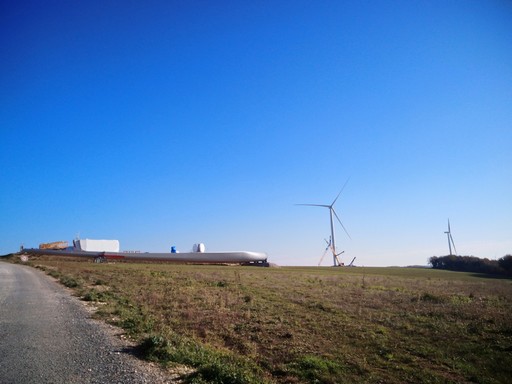

Turbine 14254
Author: Jacky Boireau - License: All right reserved
Picture reference: 14254 - Date: 2020

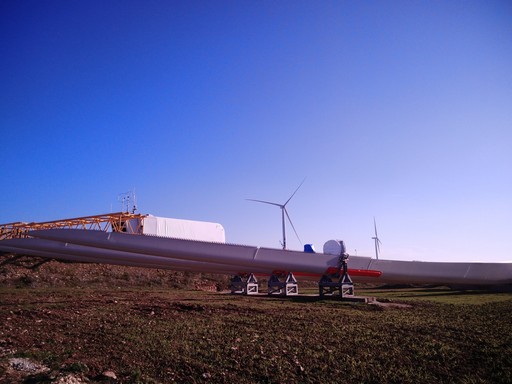

Turbine 14255
Author: Jacky Boireau - License: All right reserved
Picture reference: 14255 - Date: 2020

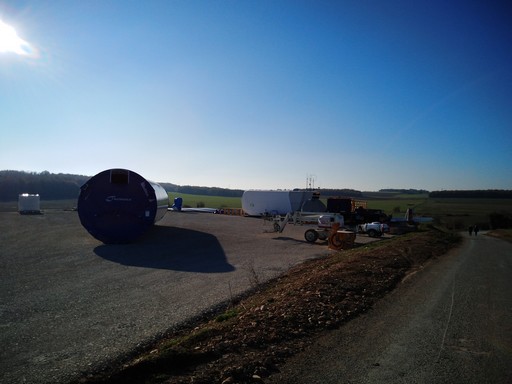

Turbine 14256
Author: Jacky Boireau - License: All right reserved
Picture reference: 14256 - Date: 2020

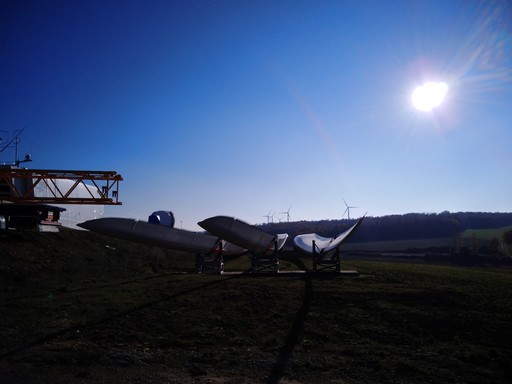

Turbine 14257
Author: Jacky Boireau - License: All right reserved
Picture reference: 14257 - Date: 2020

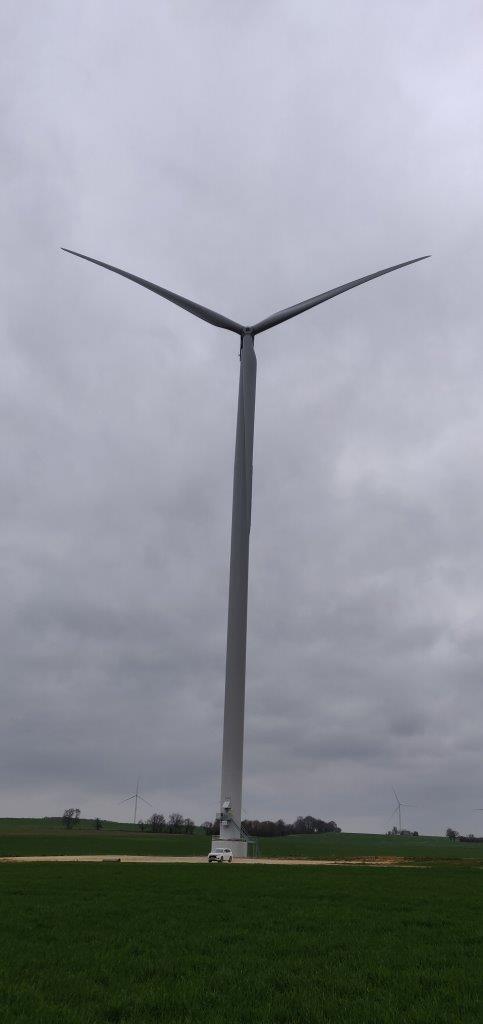

Turbine 14361
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 14361 - Date: 2021
Turbine 14362
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 14362 - Date: 2021

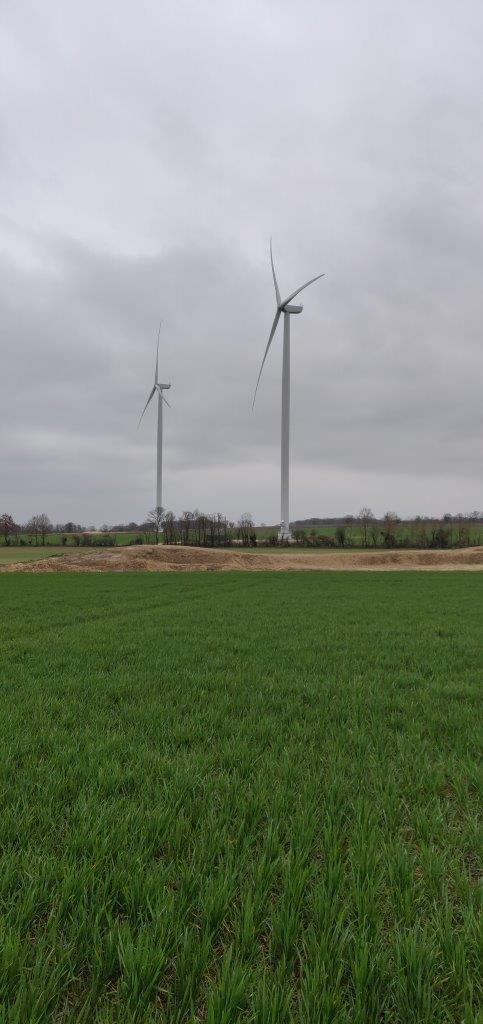

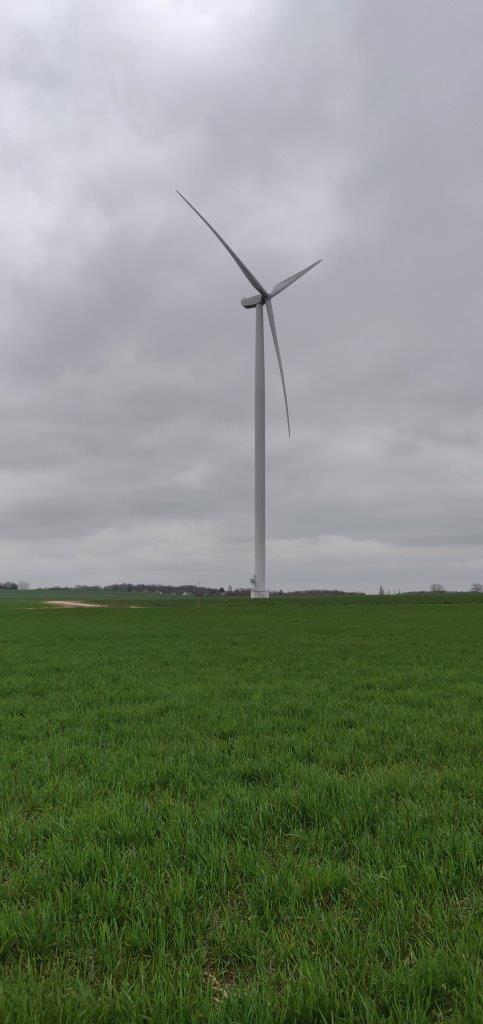

Turbine 14363
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 14363 - Date: 2021
Turbine 14364
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 14364 - Date: 2021

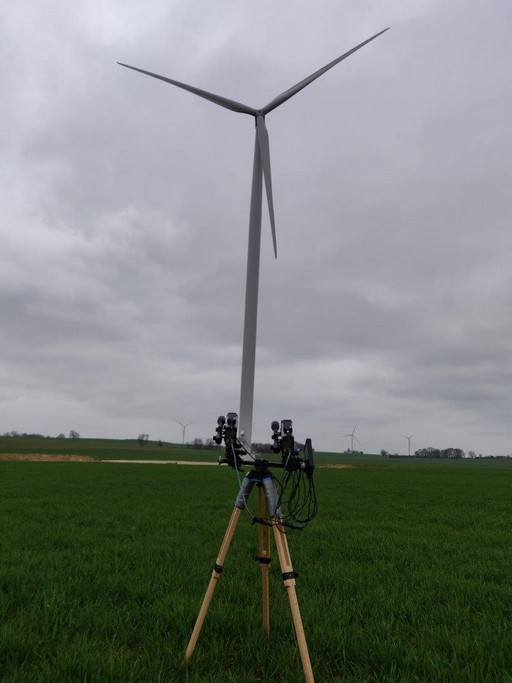

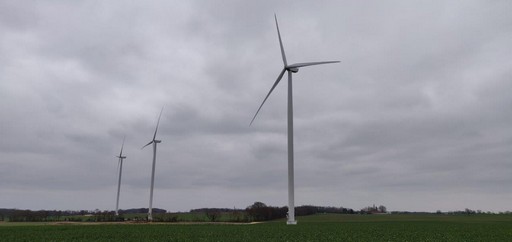

Turbine 14365
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 14365 - Date: 2021

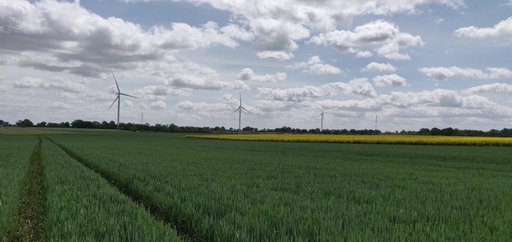

Turbine 14534
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 14534 - Date: 2021

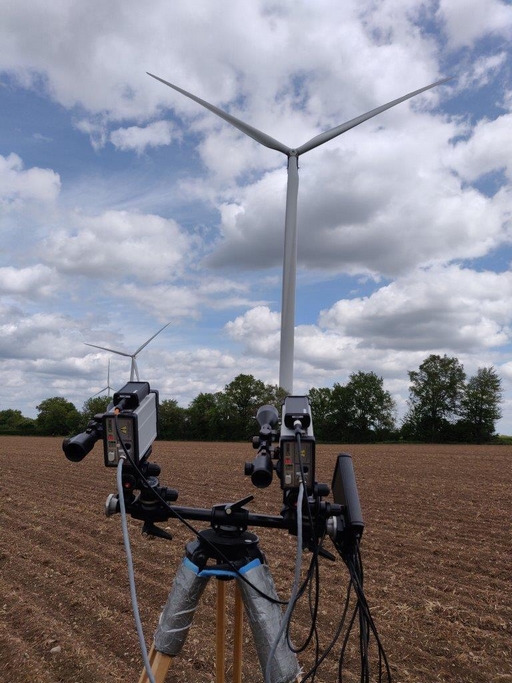

Turbine 14535
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 14535 - Date: 2021

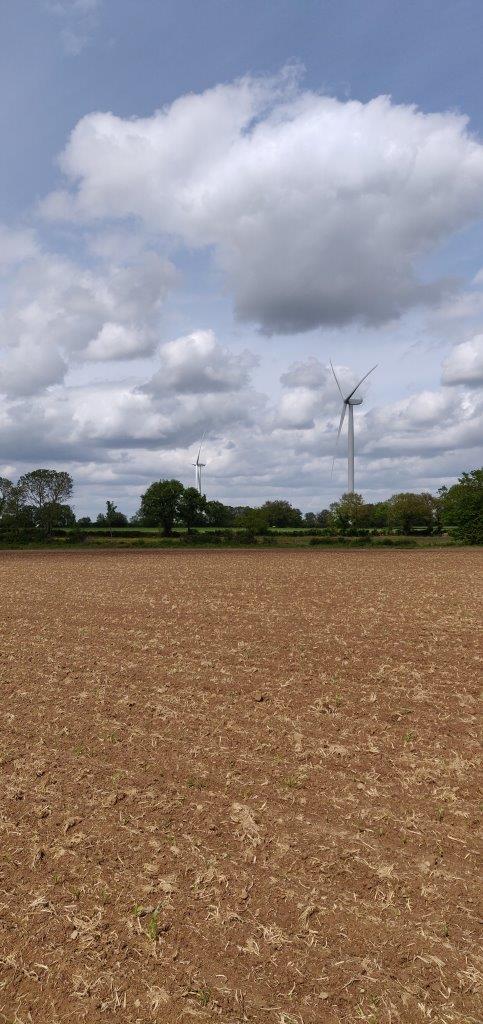

Turbine 14536
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 14536 - Date: 2021

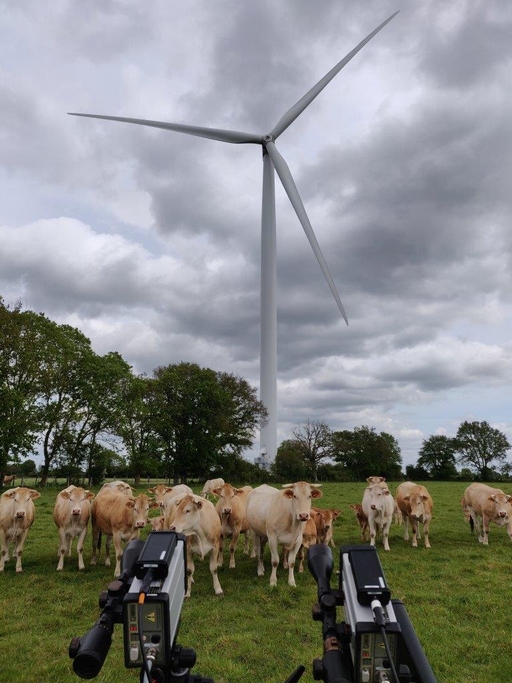

Turbine 14537
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 14537 - Date: 2021

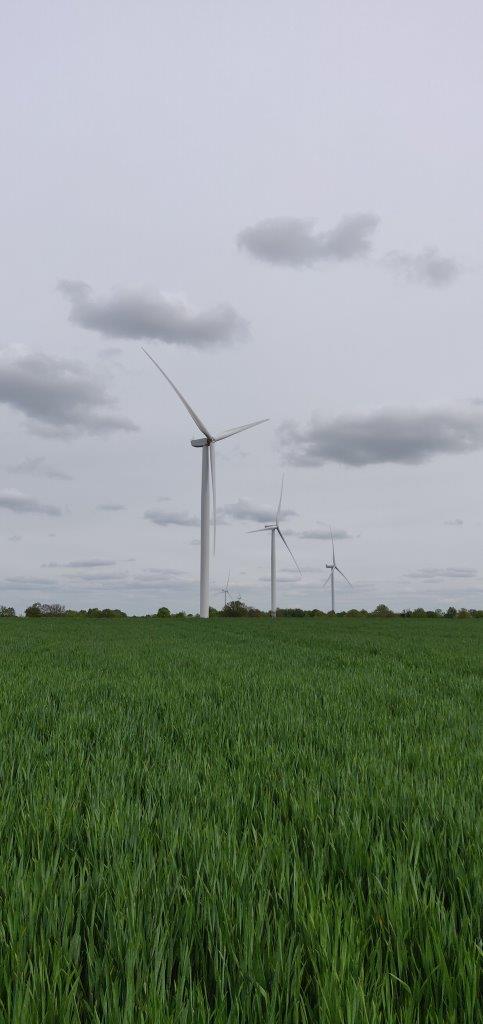

Turbine 14538
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 14538 - Date: 2021

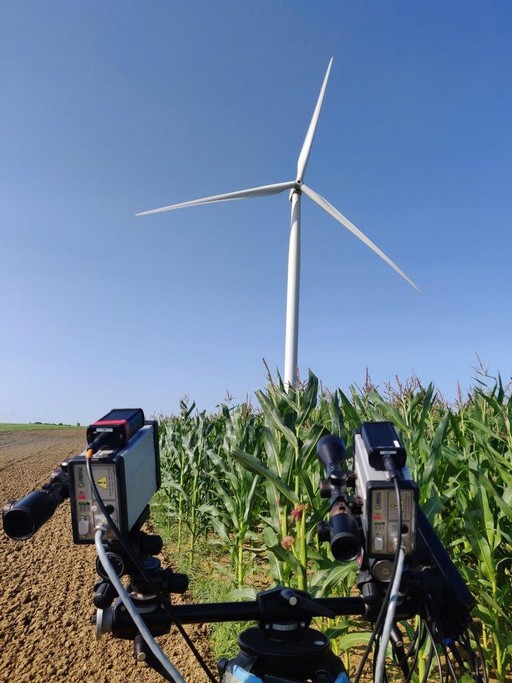

Turbine 14733
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 14733 - Date: 2021

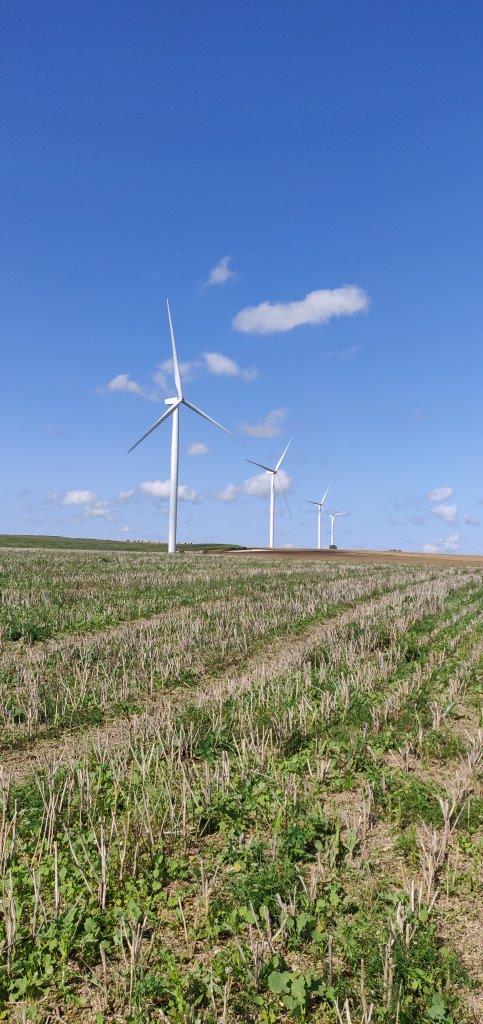

Turbine 14734
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 14734 - Date: 2021

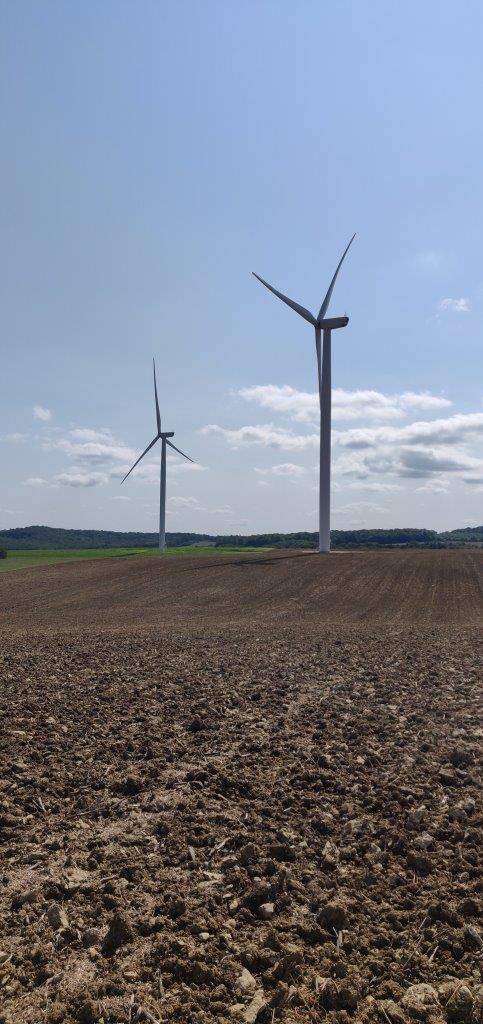

Turbine 14735
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 14735 - Date: 2021

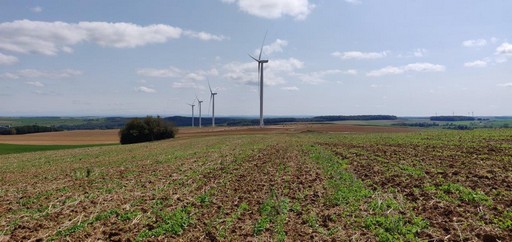

Turbine 14736
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 14736 - Date: 2021

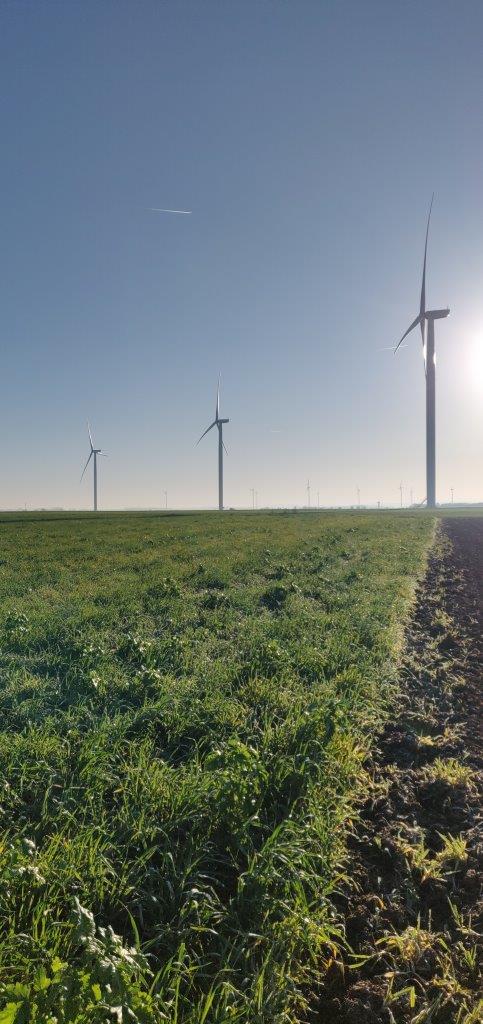

Turbine 14829
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 14829 - Date: 2021

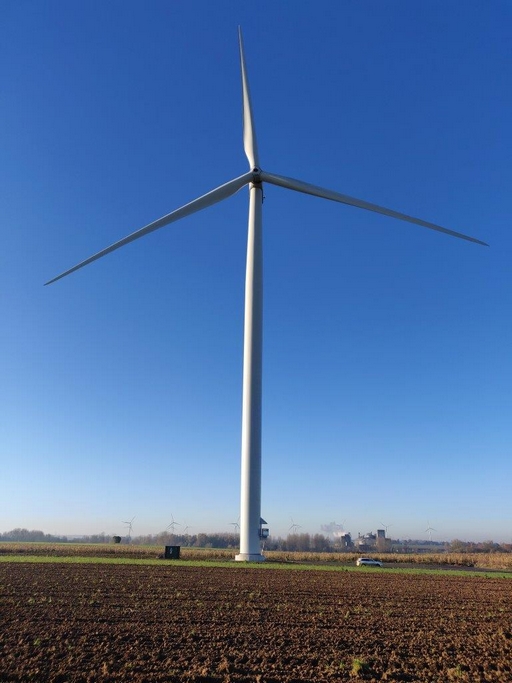

Turbine 14830
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 14830 - Date: 2021
Turbine 14831
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 14831 - Date: 2021

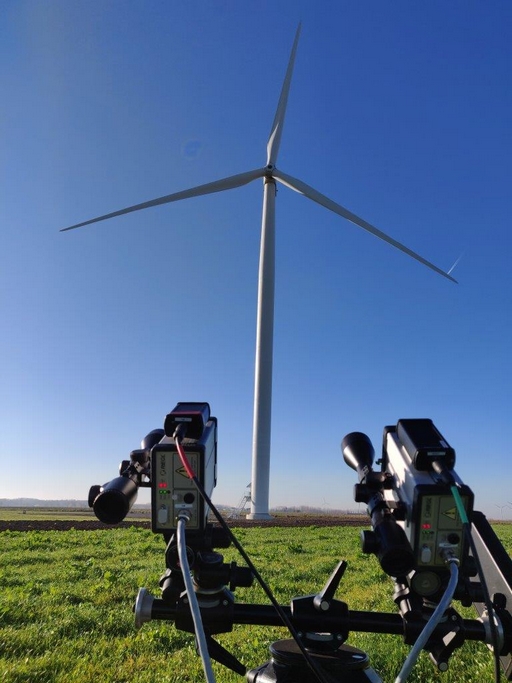

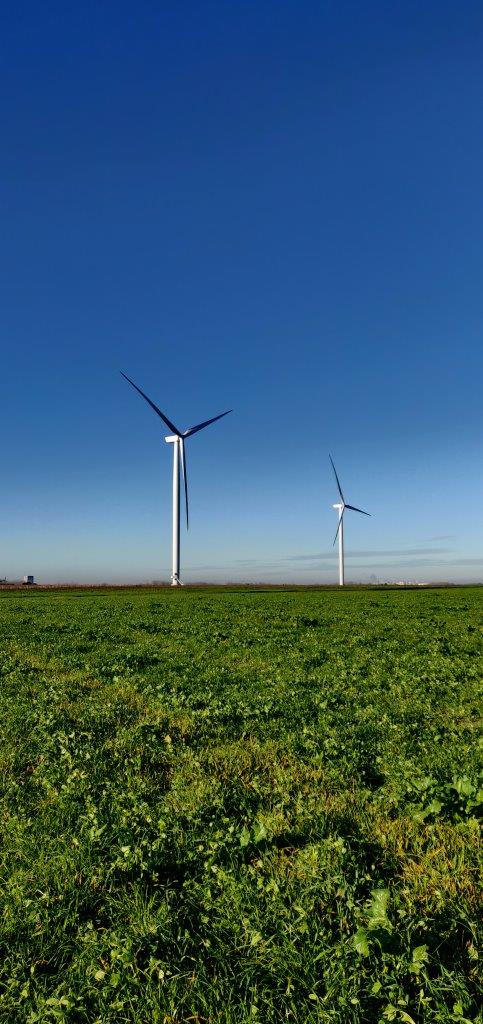

Turbine 14832
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 14832 - Date: 2021

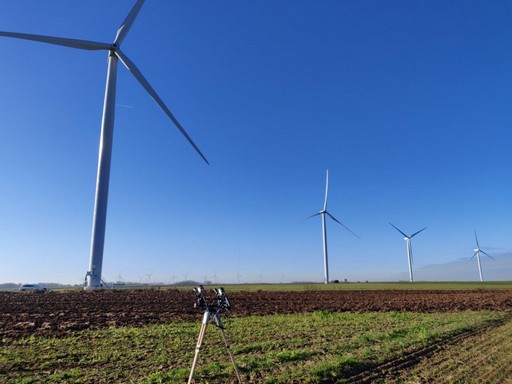

Turbine 14833
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 14833 - Date: 2021

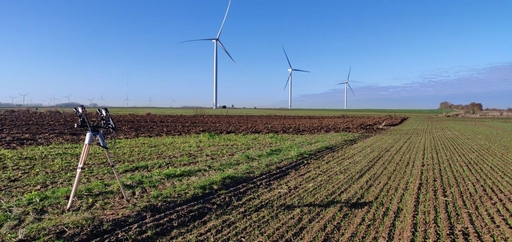

Turbine 14834
Author: Sylvain Fily - Source: Alpha Wind - License: All right reserved
Picture reference: 14834 - Date: 2021

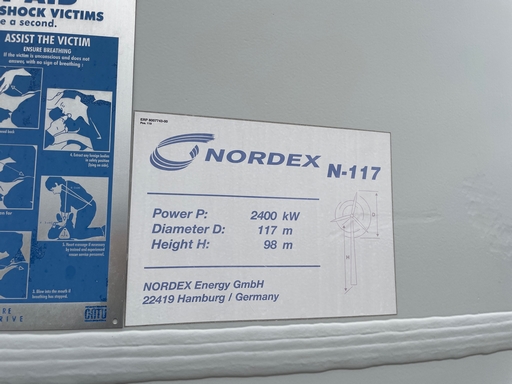

Turbine 15442
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 15442 - Date: 2023
Turbine 15443
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 15443 - Date: 2023

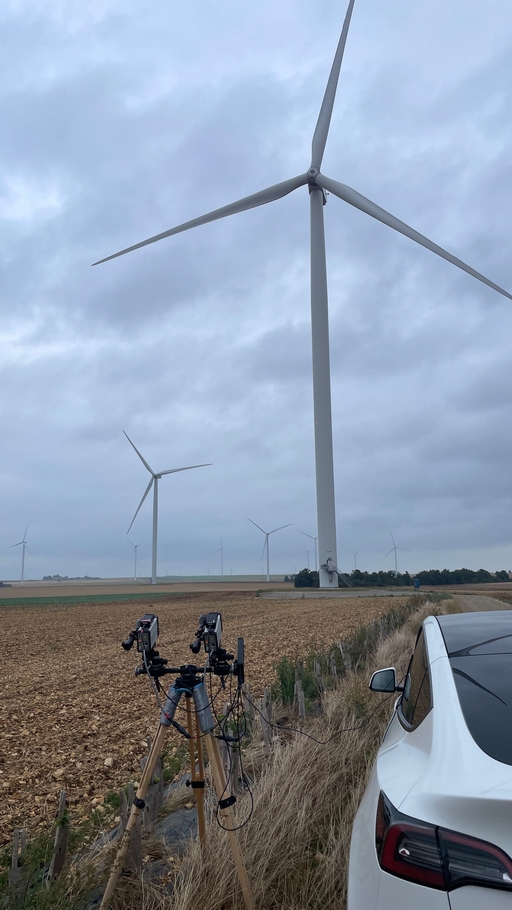

Turbine 15444
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 15444 - Date: 2023

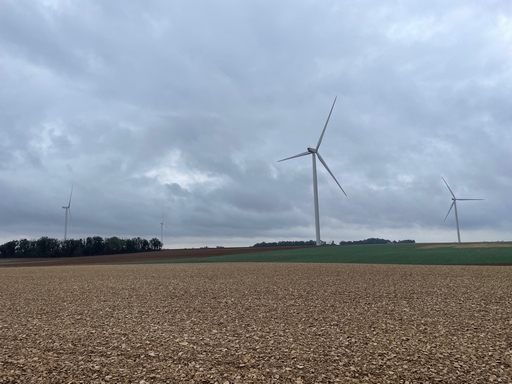

Turbine 15445
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 15445 - Date: 2023

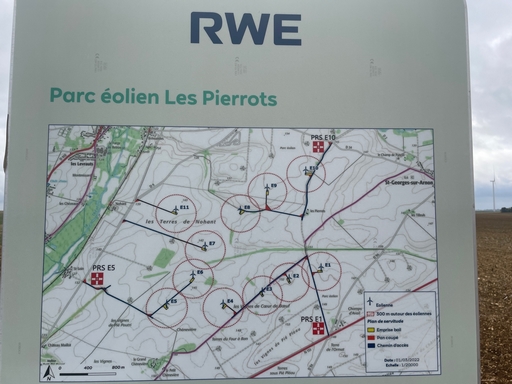

Turbine 15446
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 15446 - Date: 2023
Turbine 15447
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 15447 - Date: 2023

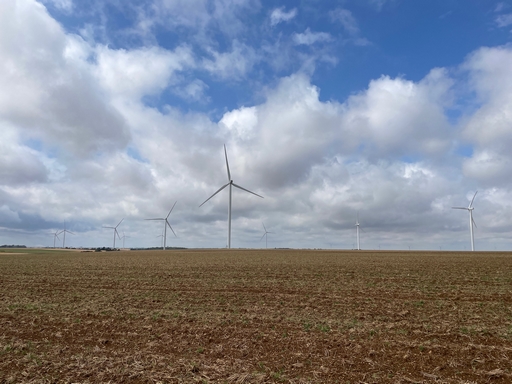

Turbine 15448
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 15448 - Date: 2023
Turbine 15449
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 15449 - Date: 2023


Update for this sheet: 19 July 2023
