General data

  • Manufacturer: Gamesa (Espagne)
  • Model: G90/2000
  • Product page
  • Rated power: 2,000 kW
  • Rotor diameter: 90 m
  • No more available
  • Wind class: IEC IIIa (BIDt II)
  • Offshore model: no
  • Swept area: 6,362 m²
  • Specific area: 3.19 m²/kW
  • Number of blades: 3
  • Power control: Pitch
  • Commissioning: 2005

Weights

  • Nacelle: 65 tons
  • Tower: 153 - 286 tons
  • Rotor + hub: 50 tons
  • Total: 268 - 401 tons

Rotor

  • Minimum rotor speed: 9 rd/min
  • Maximum rotor speed: 19 rd/min
  • Cut-in wind speed: 2,5 m/s
  • Rated wind speed: 12 m/s
  • Cut-off wind speed: 25 m/s
  • Manufacturer: Gamesa

Gear box

  • Gear box: yes
  • Stages: 3
  • Gear ratio: 100,5
  • Manufacturer: Echesa, Fellar, Hansen, Lohman

Generator

  • Type: ASYNC
  • Number: 1
  • Maximum speed: 1900 rounds/minute
  • Voltage: 690 V
  • Manufacturer: Indar, Cantarey, ABB

Tower

  • Minimum hub height: 55 m
  • Maximum hub height: 100 m
  • Manufacturer: Gamesa

G90/2000 - Gamesa - 2000 kW
Mo

Power curve




Wind farms in the database


Full list (210 wind farms)



Pictures

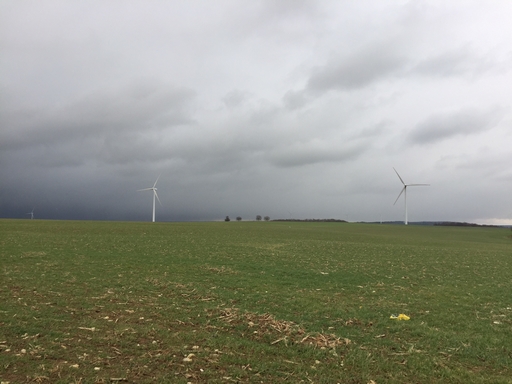

Turbine 186
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 186 - Date: 2017

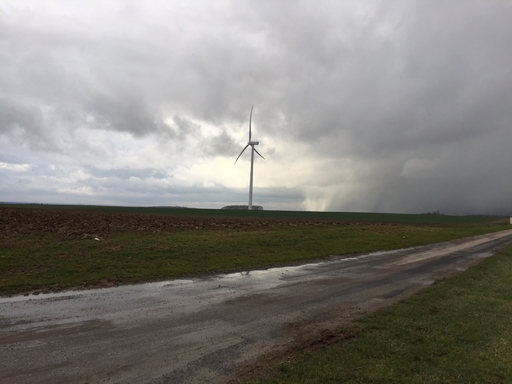

Turbine 187
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 187 - Date: 2017

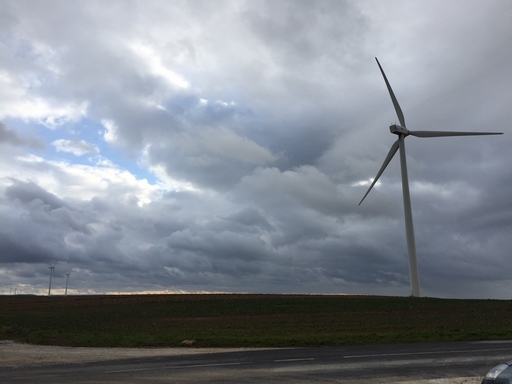

Turbine 188
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 188 - Date: 2017

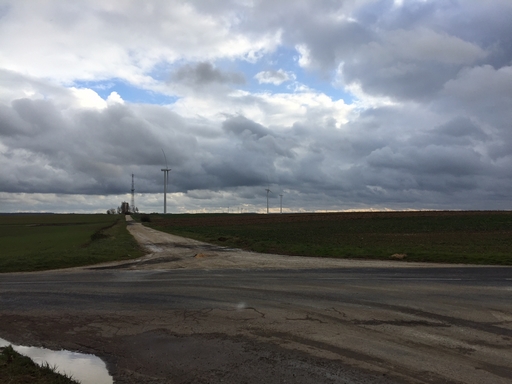

Turbine 189
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 189 - Date: 2017

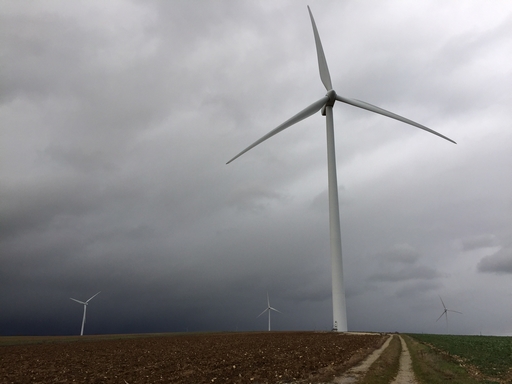

Turbine 190
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 190 - Date: 2017

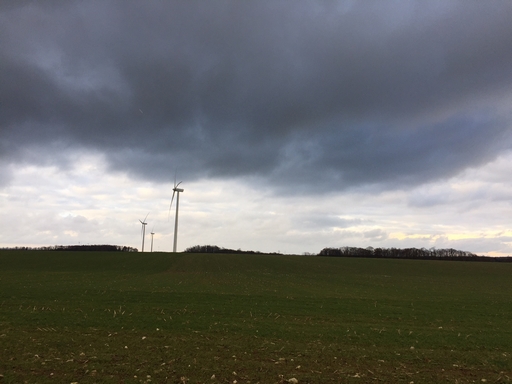

Turbine 191
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 191 - Date: 2017

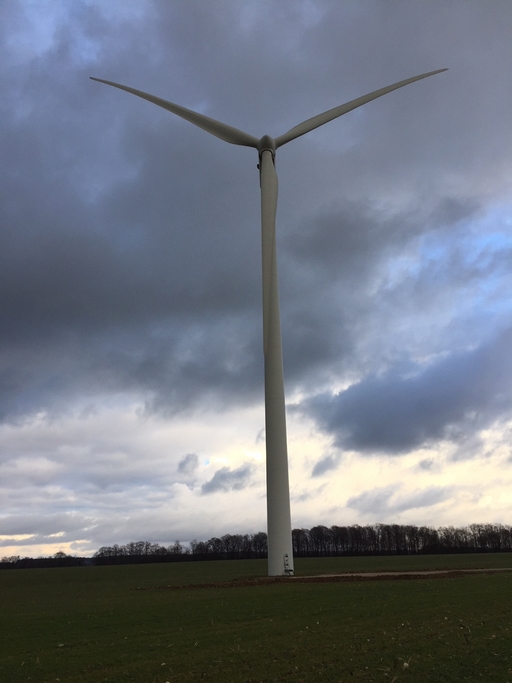

Turbine 192
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 192 - Date: 2017

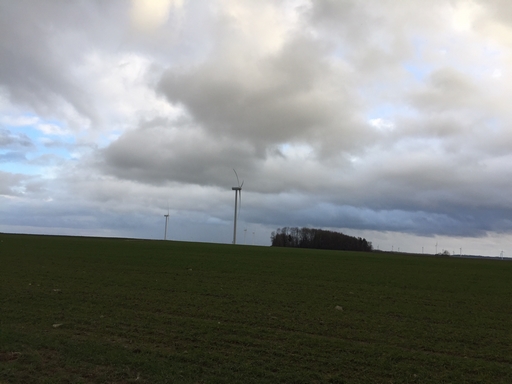

Turbine 193
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 193 - Date: 2017

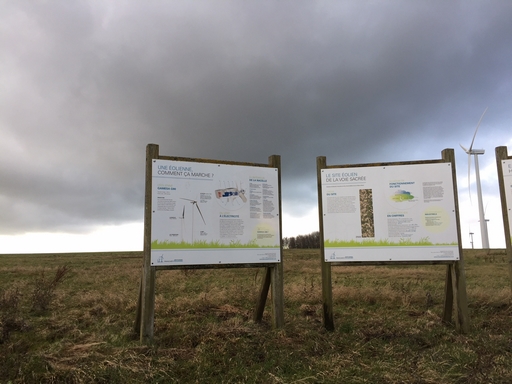

Turbine 194
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 194 - Date: 2017

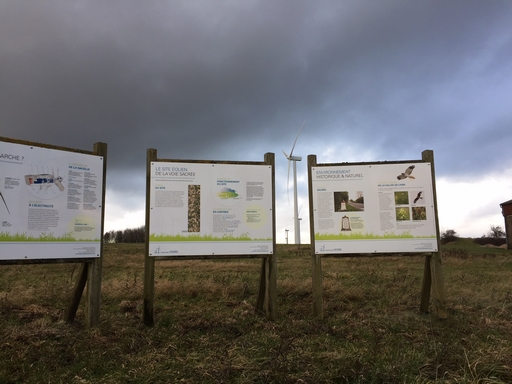

Turbine 195
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 195 - Date: 2017

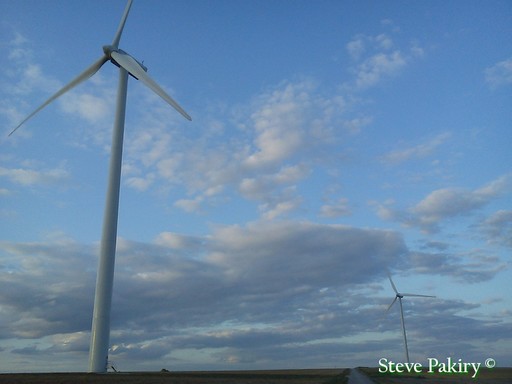

Turbine 601
Author: Steve Pakiry - License: All right reserved
Picture reference: 601 - Date: 2011

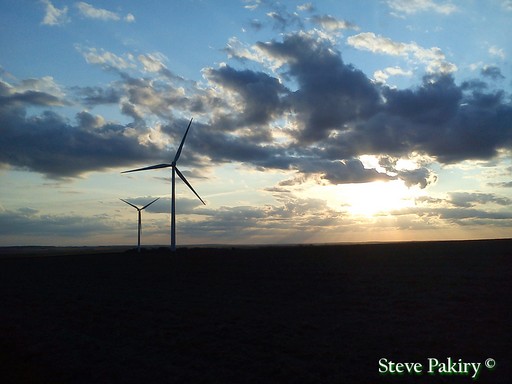

Turbine 602
Author: Steve Pakiry - License: All right reserved
Picture reference: 602 - Date: 2011

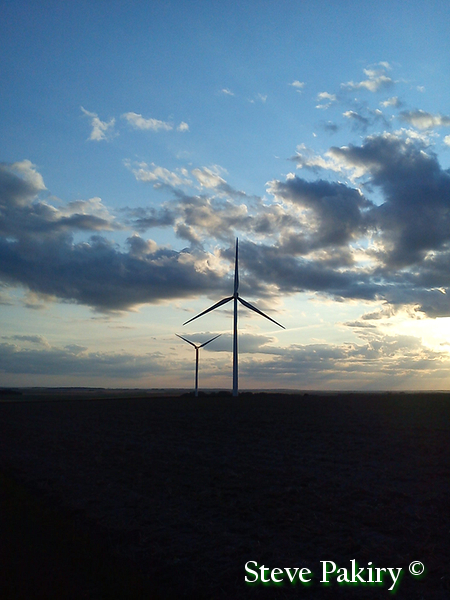

Turbine 603
Author: Steve Pakiry - License: All right reserved
Picture reference: 603 - Date: 2011

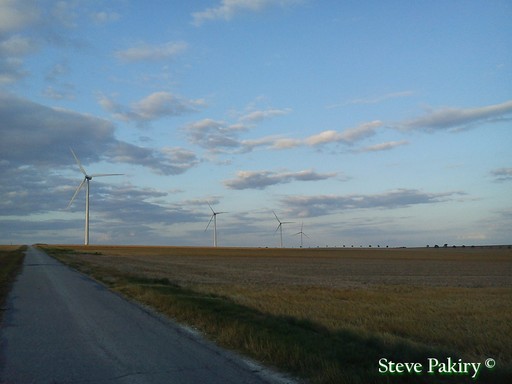

Turbine 604
Author: Steve Pakiry - License: All right reserved
Picture reference: 604 - Date: 2011

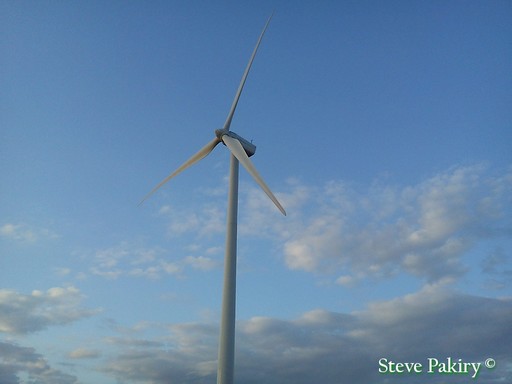

Turbine 605
Author: Steve Pakiry - License: All right reserved
Picture reference: 605 - Date: 2011

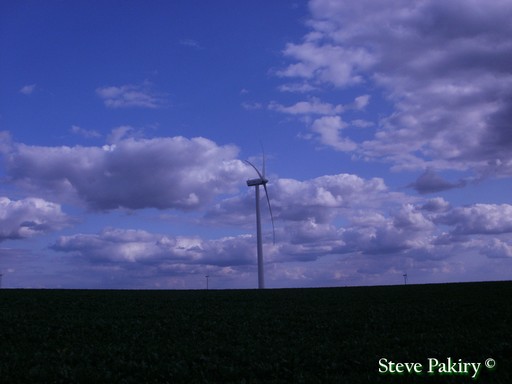

Turbine 620
Author: Steve Pakiry - License: All right reserved
Picture reference: 620 - Date: 2011

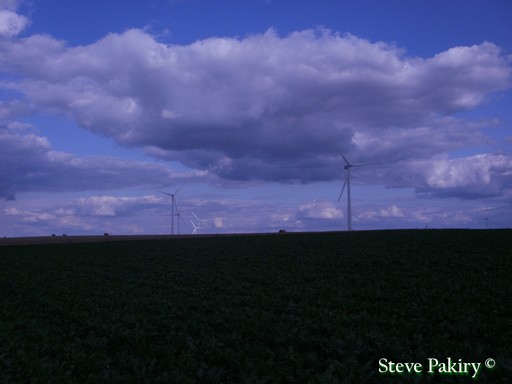

Turbine 621
Author: Steve Pakiry - License: All right reserved
Picture reference: 621 - Date: 2011

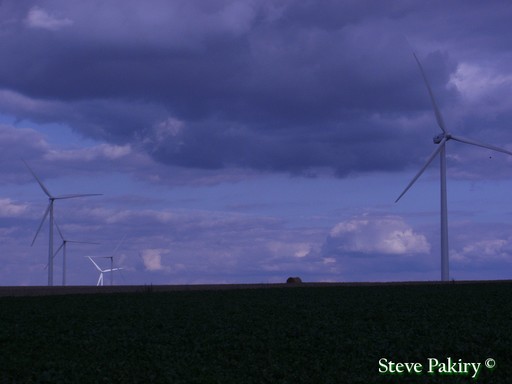

Turbine 622
Author: Steve Pakiry - License: All right reserved
Picture reference: 622 - Date: 2011

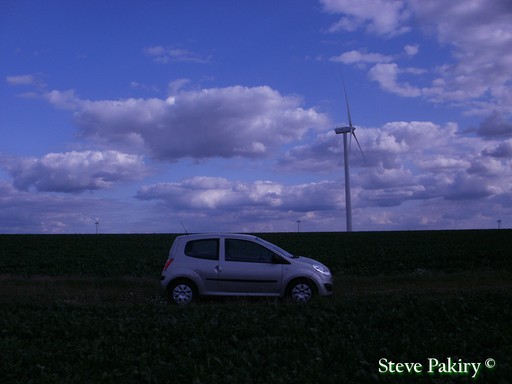

Turbine 623
Author: Steve Pakiry - License: All right reserved
Picture reference: 623 - Date: 2011

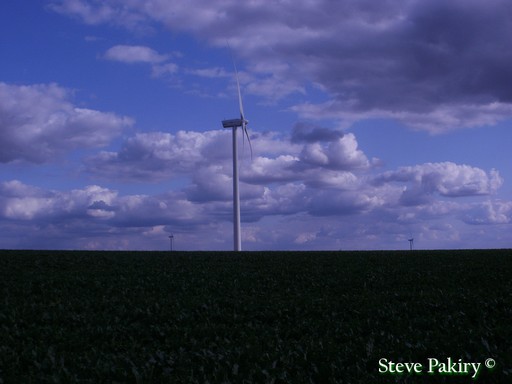

Turbine 624
Author: Steve Pakiry - License: All right reserved
Picture reference: 624 - Date: 2011

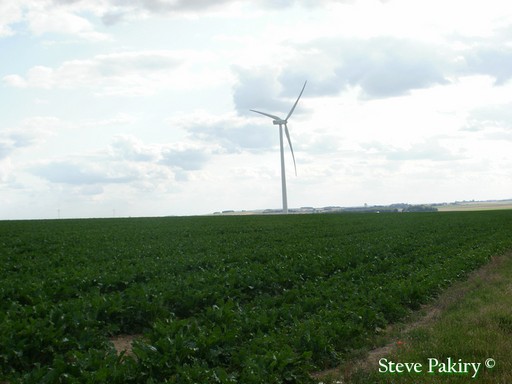

Turbine 625
Author: Steve Pakiry - License: All right reserved
Picture reference: 625 - Date: 2011

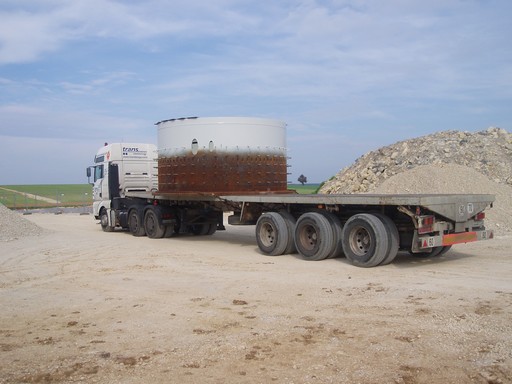

Turbine 2119
Source: Eole Meuse - License: All right reserved
Picture reference: 2119

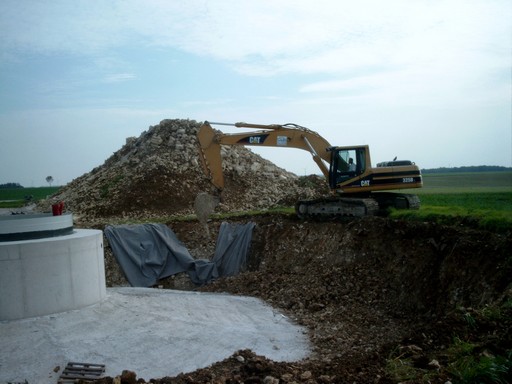

Turbine 2120
Source: Eole Meuse - License: All right reserved
Picture reference: 2120

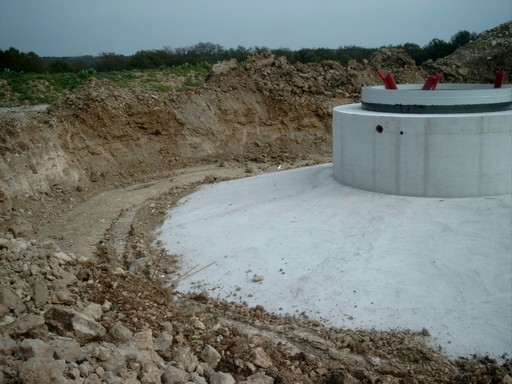

Turbine 2121
Source: Eole Meuse - License: All right reserved
Picture reference: 2121

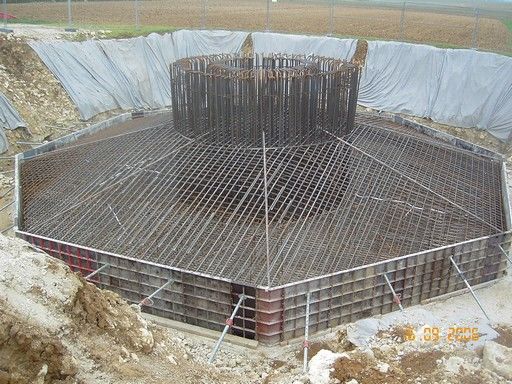

Turbine 2122
Source: Eole Meuse - License: All right reserved
Picture reference: 2122

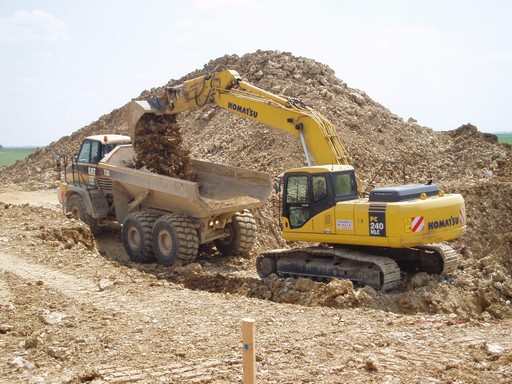

Turbine 2123
Source: Eole Meuse - License: All right reserved
Picture reference: 2123

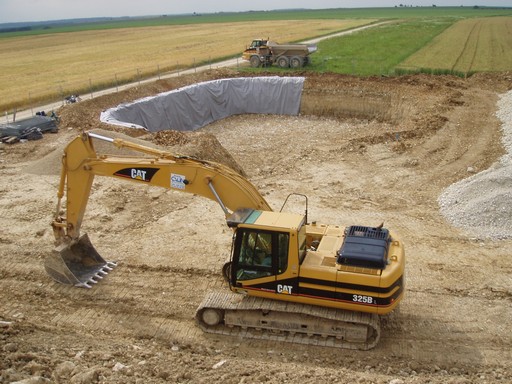

Turbine 2124
Source: Eole Meuse - License: All right reserved
Picture reference: 2124

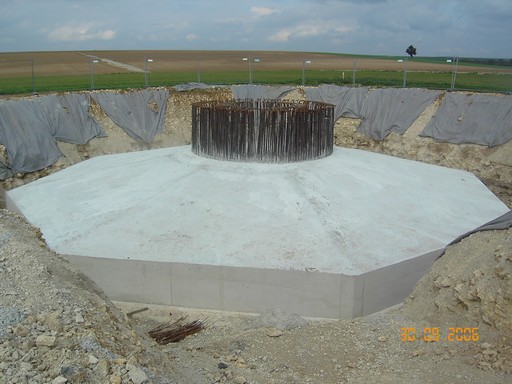

Turbine 2125
Source: Eole Meuse - License: All right reserved
Picture reference: 2125

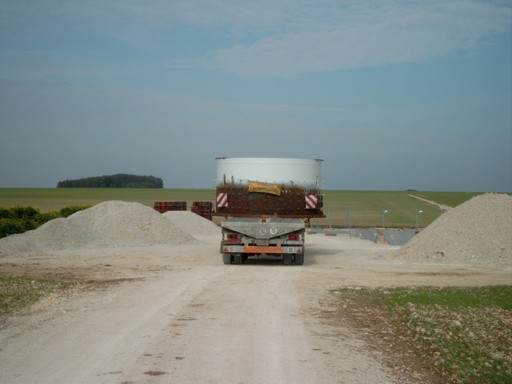

Turbine 2126
Source: Eole Meuse - License: All right reserved
Picture reference: 2126

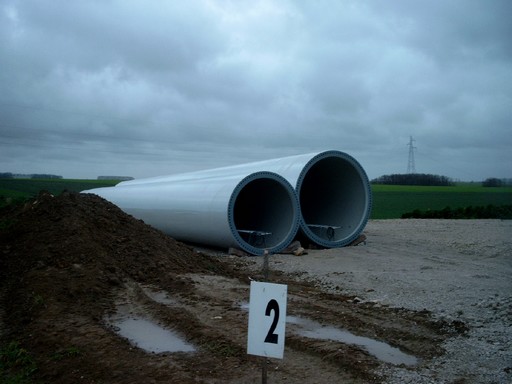

Turbine 2274
Source: Eole Meuse - License: All right reserved
Picture reference: 2274

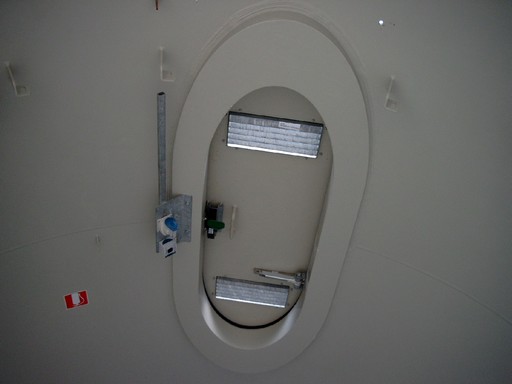

Turbine 2275
Source: Eole Meuse - License: All right reserved
Picture reference: 2275

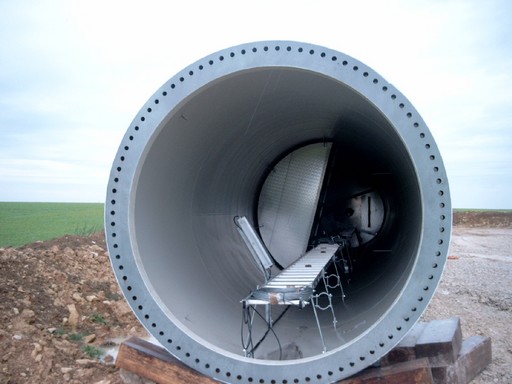

Turbine 2276
Source: Eole Meuse - License: All right reserved
Picture reference: 2276

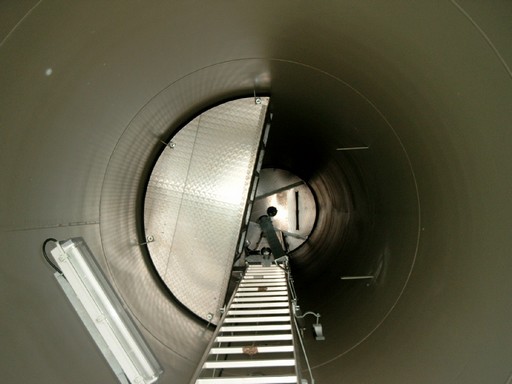

Turbine 2277
Source: Eole Meuse - License: All right reserved
Picture reference: 2277

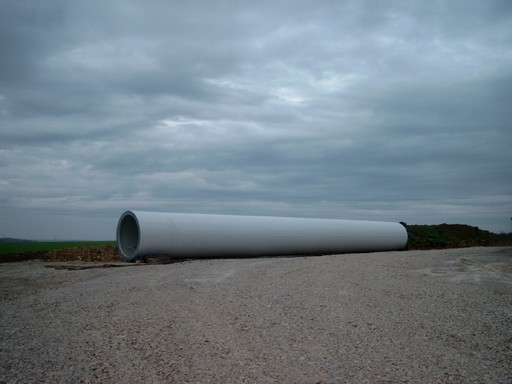

Turbine 2278
Source: Eole Meuse - License: All right reserved
Picture reference: 2278

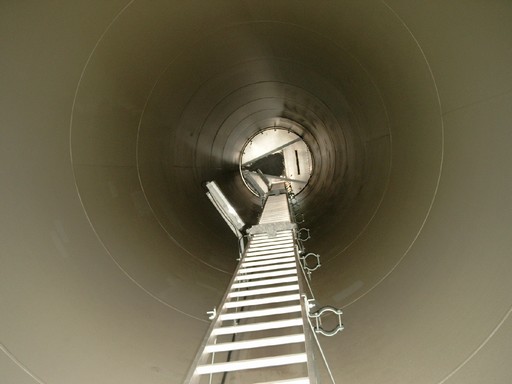

Turbine 2279
Source: Eole Meuse - License: All right reserved
Picture reference: 2279

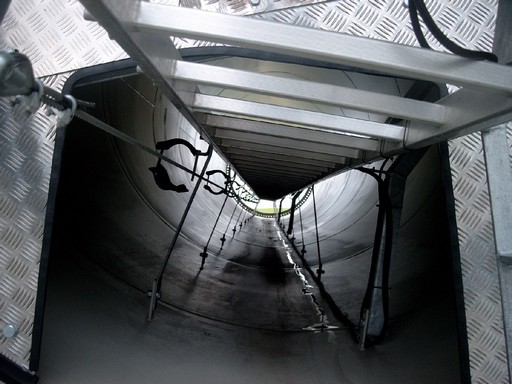

Turbine 2280
Source: Eole Meuse - License: All right reserved
Picture reference: 2280

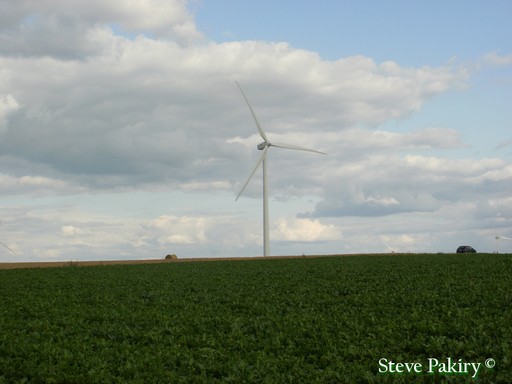

Turbine 2799
Author: Steve Pakiry - License: All right reserved
Picture reference: 2799 - Date: 2011

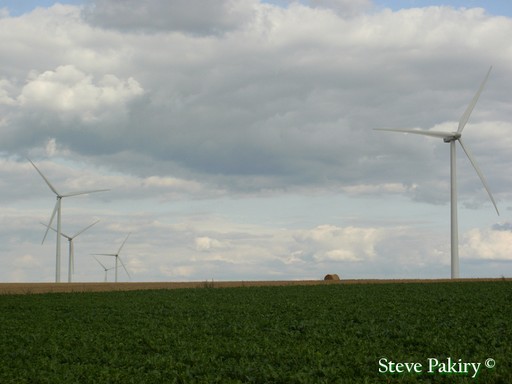

Turbine 2800
Author: Steve Pakiry - License: All right reserved
Picture reference: 2800 - Date: 2011

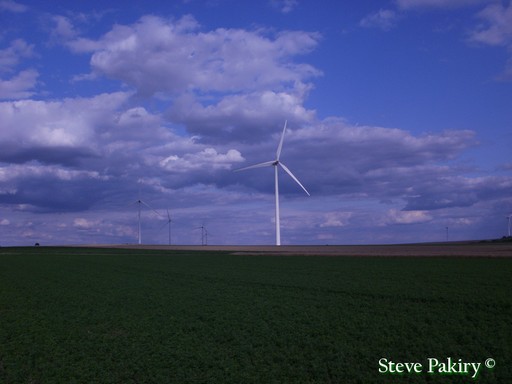

Turbine 2801
Author: Steve Pakiry - License: All right reserved
Picture reference: 2801 - Date: 2011

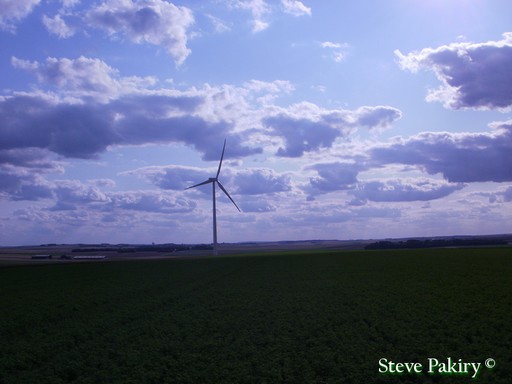

Turbine 2802
Author: Steve Pakiry - License: All right reserved
Picture reference: 2802 - Date: 2011

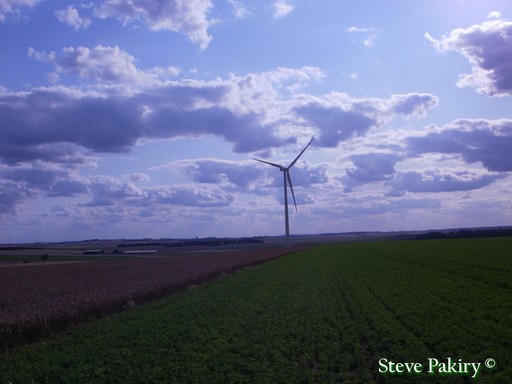

Turbine 2803
Author: Steve Pakiry - License: All right reserved
Picture reference: 2803 - Date: 2011

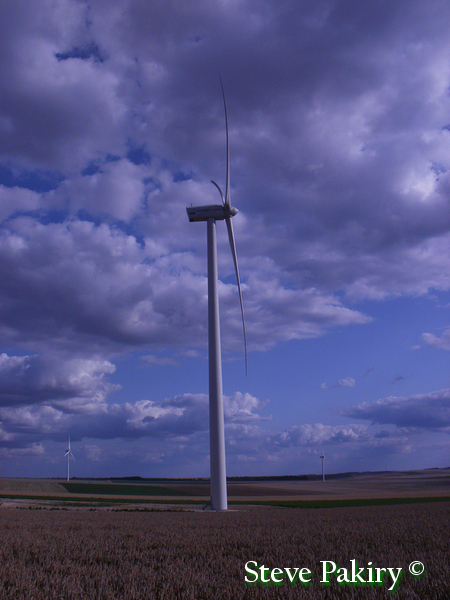

Turbine 2804
Author: Steve Pakiry - License: All right reserved
Picture reference: 2804 - Date: 2011

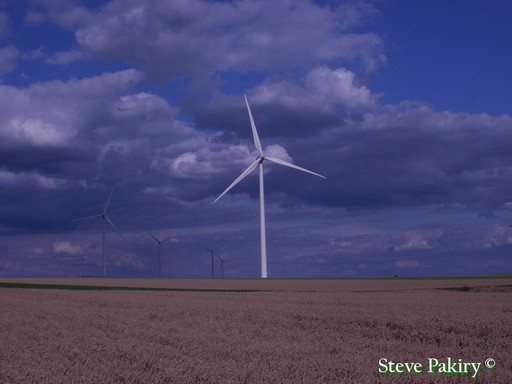

Turbine 3863
Author: Steve Pakiry - License: All right reserved
Picture reference: 3863 - Date: 2011

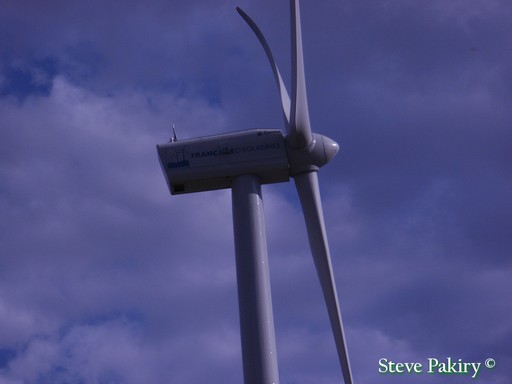

Turbine 3864
Author: Steve Pakiry - License: All right reserved
Picture reference: 3864 - Date: 2011

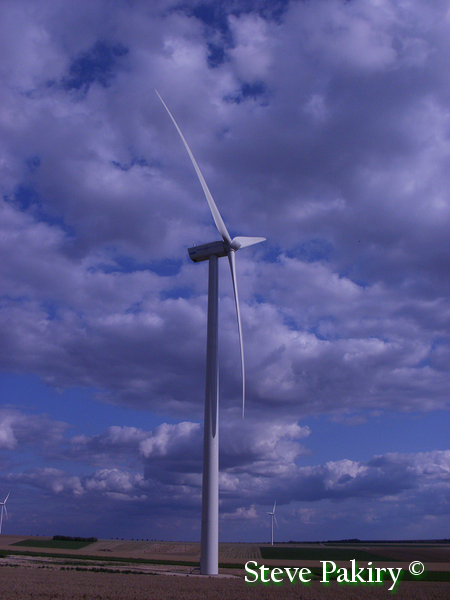

Turbine 3865
Author: Steve Pakiry - License: All right reserved
Picture reference: 3865 - Date: 2011

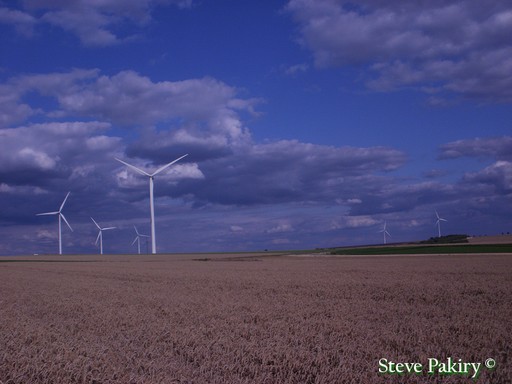

Turbine 3866
Author: Steve Pakiry - License: All right reserved
Picture reference: 3866 - Date: 2011

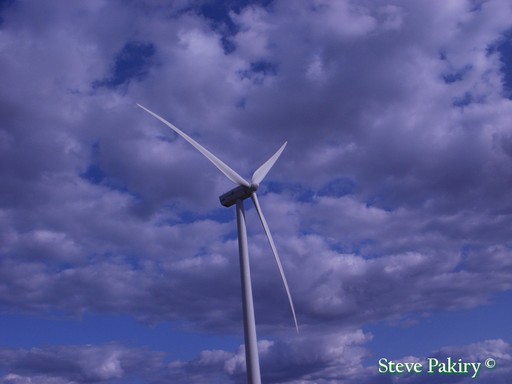

Turbine 3867
Author: Steve Pakiry - License: All right reserved
Picture reference: 3867 - Date: 2011

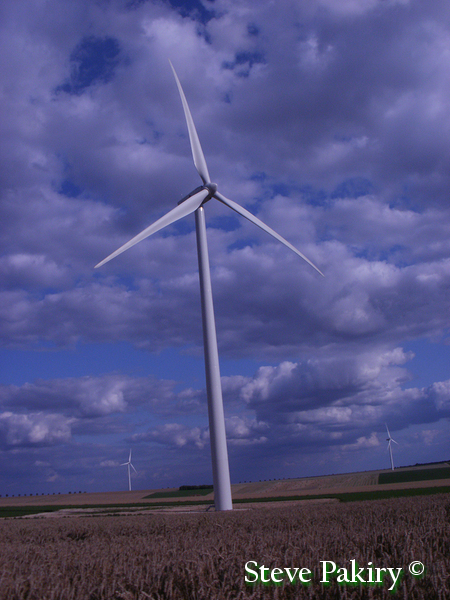

Turbine 3868
Author: Steve Pakiry - License: All right reserved
Picture reference: 3868 - Date: 2011

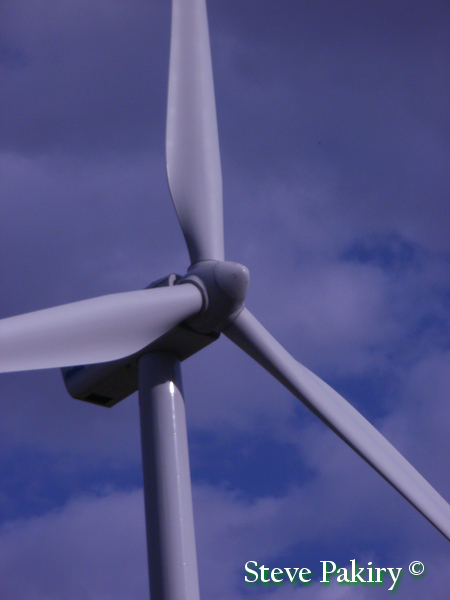

Turbine 3869
Author: Steve Pakiry - License: All right reserved
Picture reference: 3869 - Date: 2011

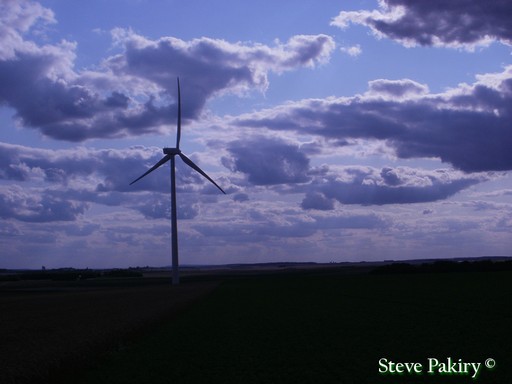

Turbine 3870
Author: Steve Pakiry - License: All right reserved
Picture reference: 3870 - Date: 2011

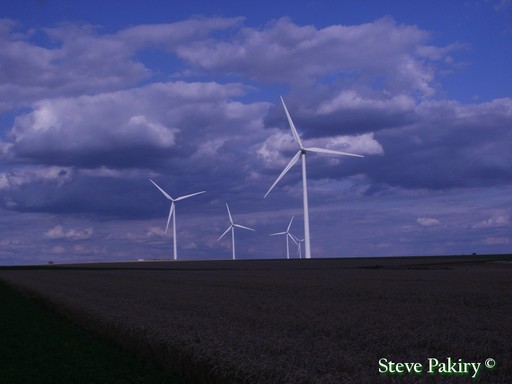

Turbine 3871
Author: Steve Pakiry - License: All right reserved
Picture reference: 3871 - Date: 2011

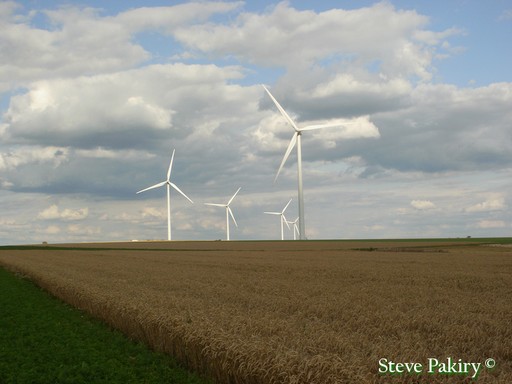

Turbine 3872
Author: Steve Pakiry - License: All right reserved
Picture reference: 3872 - Date: 2011

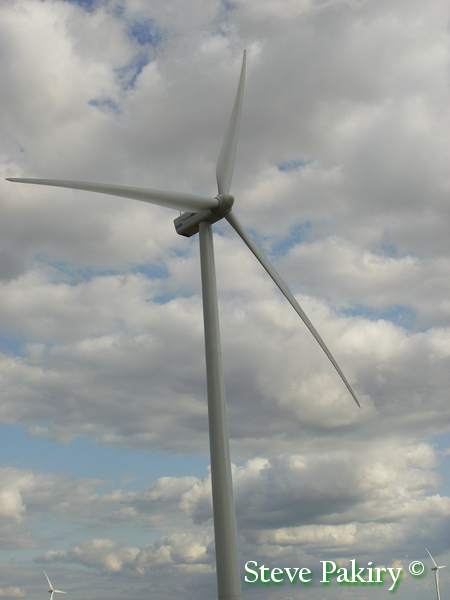

Turbine 3873
Author: Steve Pakiry - License: All right reserved
Picture reference: 3873 - Date: 2011

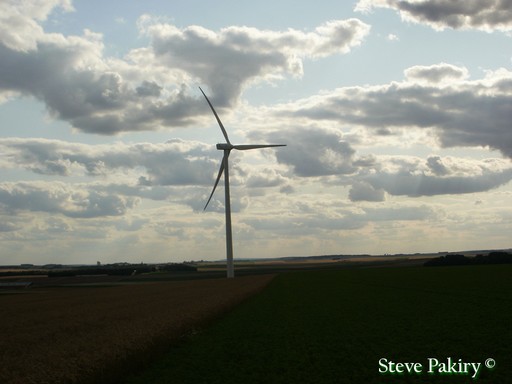

Turbine 3874
Author: Steve Pakiry - License: All right reserved
Picture reference: 3874 - Date: 2011

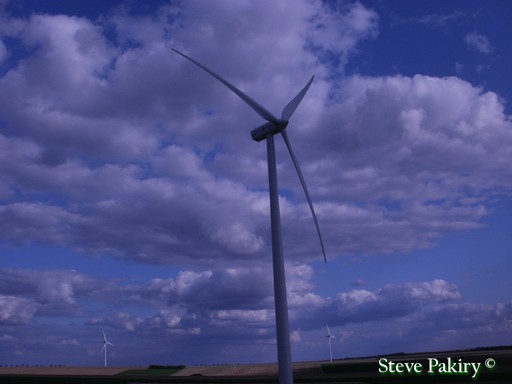

Turbine 3875
Author: Steve Pakiry - License: All right reserved
Picture reference: 3875 - Date: 2011

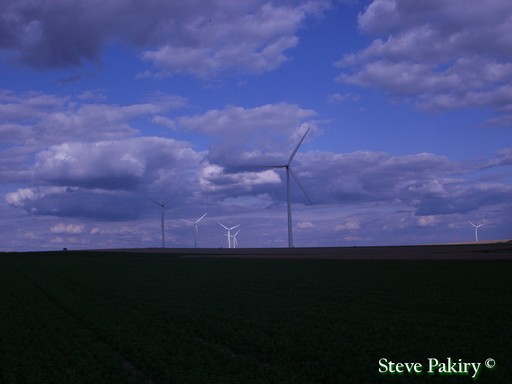

Turbine 3876
Author: Steve Pakiry - License: All right reserved
Picture reference: 3876 - Date: 2011

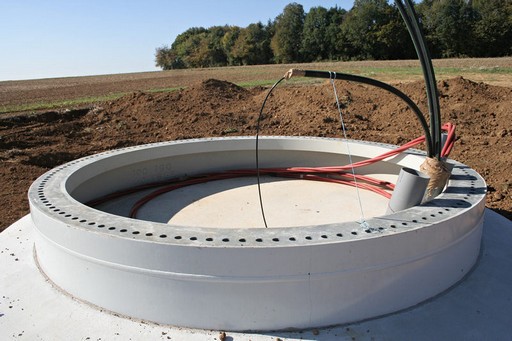

Turbine 4112
Author: Palo - License: All right reserved
Picture reference: 4112

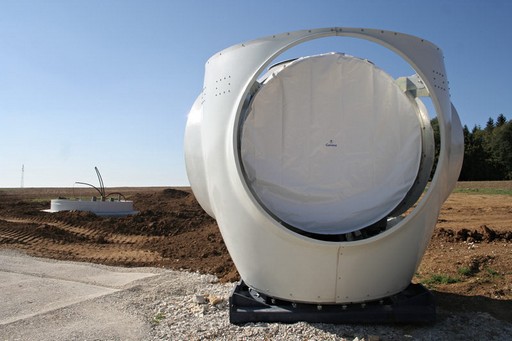

Turbine 4113
Author: Palo - License: All right reserved
Picture reference: 4113

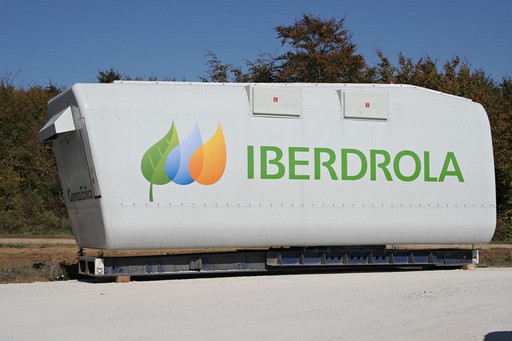

Turbine 4114
Author: Palo - License: All right reserved
Picture reference: 4114

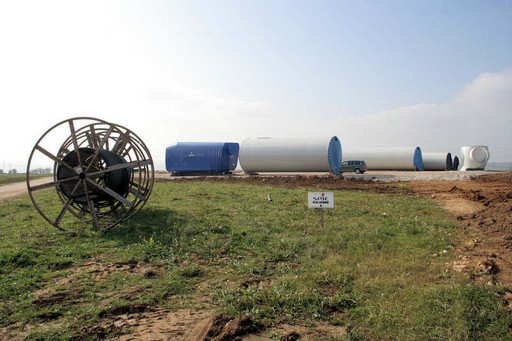

Turbine 4247
Author: Palo - License: All right reserved
Picture reference: 4247

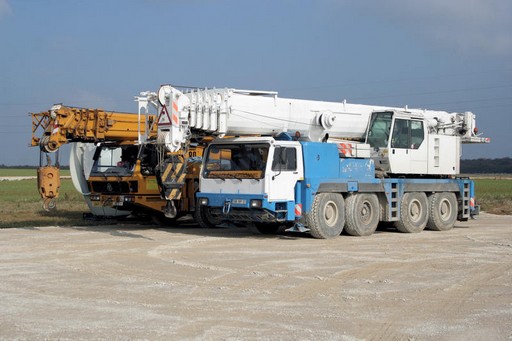

Turbine 4248
Author: Palo - License: All right reserved
Picture reference: 4248

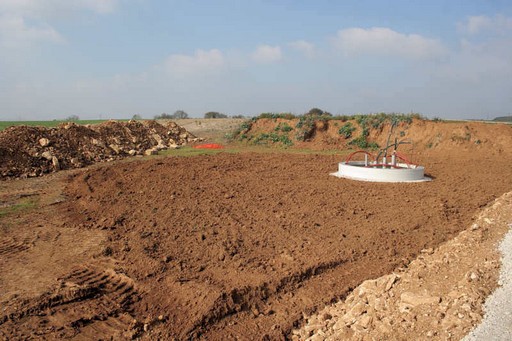

Turbine 4249
Author: Palo - License: All right reserved
Picture reference: 4249

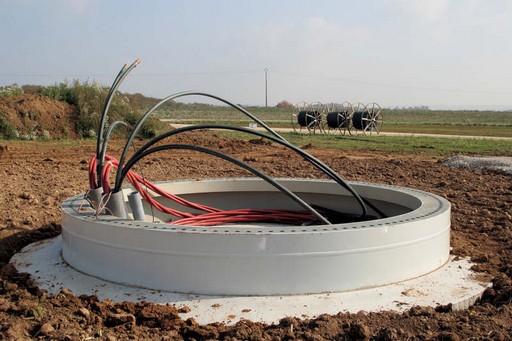

Turbine 4250
Author: Palo - License: All right reserved
Picture reference: 4250

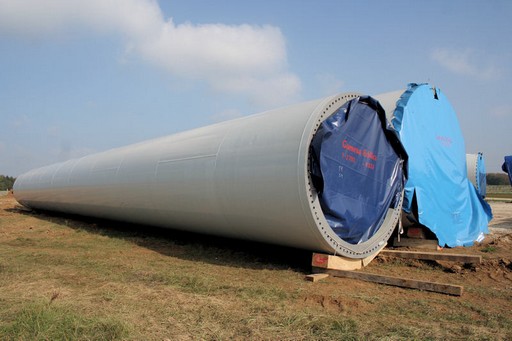

Turbine 4251
Author: Palo - License: All right reserved
Picture reference: 4251

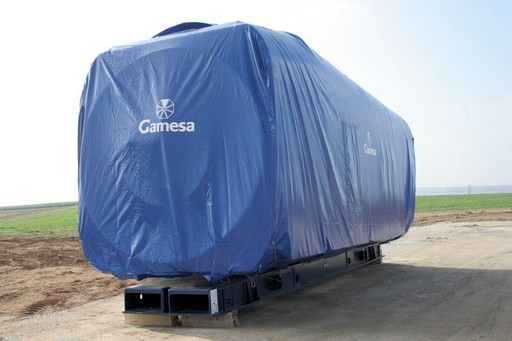

Turbine 4252
Author: Palo - License: All right reserved
Picture reference: 4252

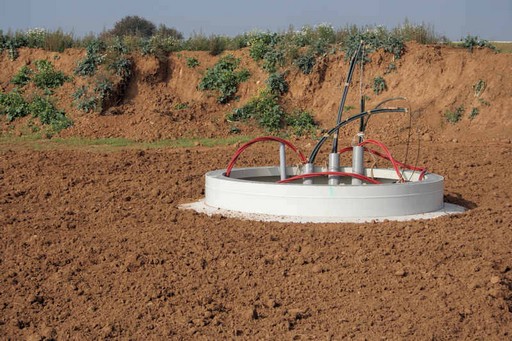

Turbine 4253
Author: Palo - License: All right reserved
Picture reference: 4253

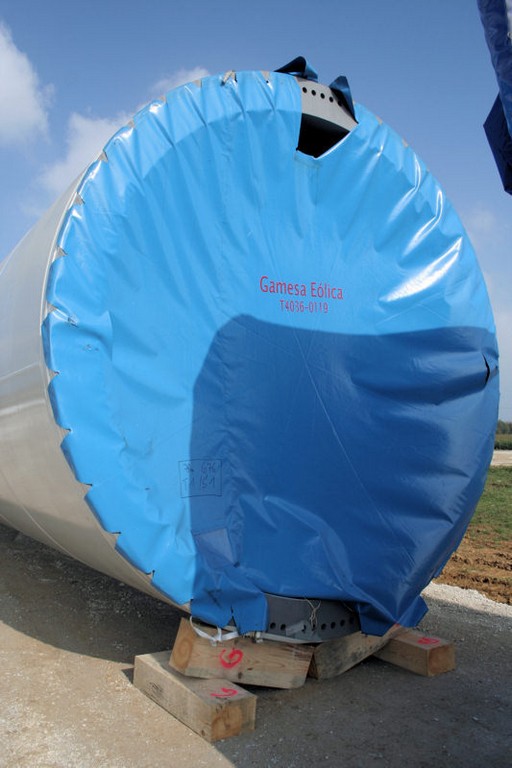

Turbine 4254
Author: Palo - License: All right reserved
Picture reference: 4254

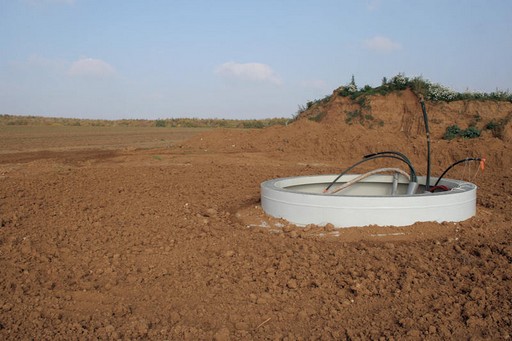

Turbine 4255
Author: Palo - License: All right reserved
Picture reference: 4255

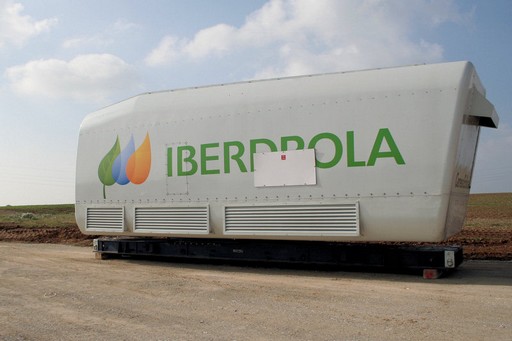

Turbine 4256
Author: Palo - License: All right reserved
Picture reference: 4256

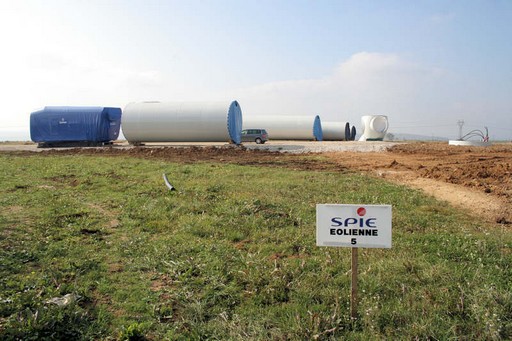

Turbine 4257
Author: Palo - License: All right reserved
Picture reference: 4257

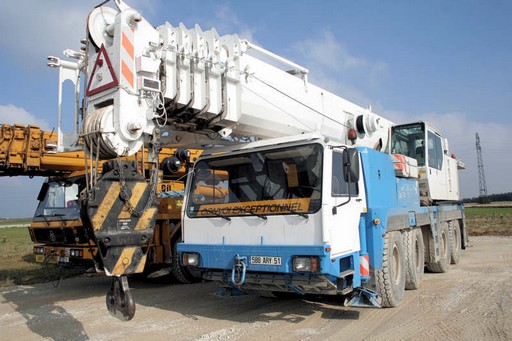

Turbine 4258
Author: Palo - License: All right reserved
Picture reference: 4258

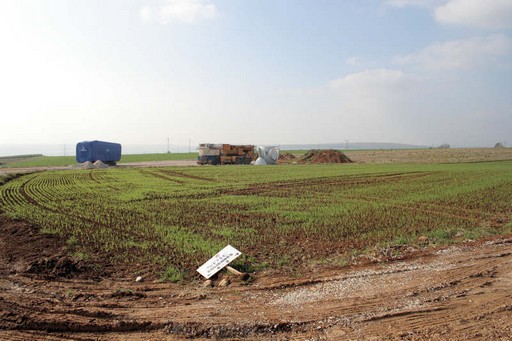

Turbine 4259
Author: Palo - License: All right reserved
Picture reference: 4259

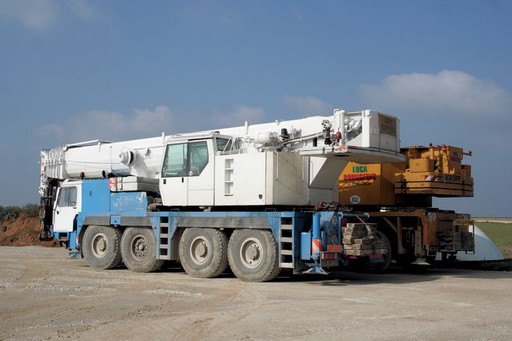

Turbine 4260
Author: Palo - License: All right reserved
Picture reference: 4260

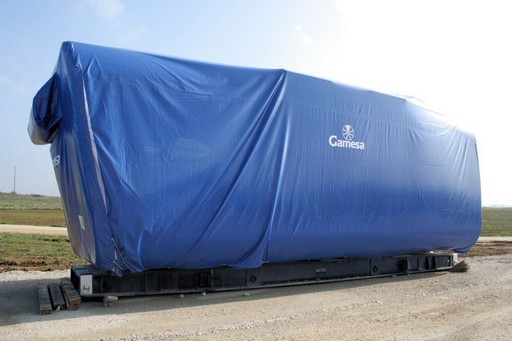

Turbine 4261
Author: Palo - License: All right reserved
Picture reference: 4261

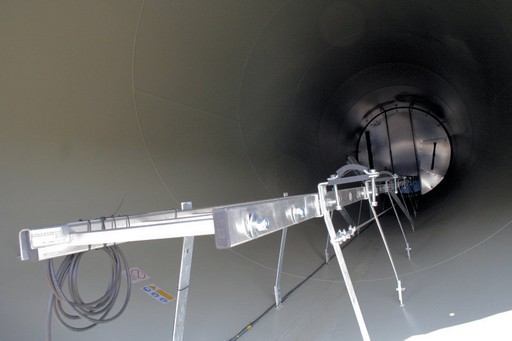

Turbine 4262
