General data

  • Manufacturer: Gamesa (Espagne)
  • Model: G58/850
  • Rated power: 850 kW
  • Rotor diameter: 58 m
  • No more available
  • Wind class: IEC IIIb/IIa
  • Offshore model: no
  • Swept area: 2,643 m²
  • Specific area: 3.11 m²/kW
  • Number of blades: 3
  • Power control: Pitch
  • Commissioning: 2001

Weights

  • Nacelle: 47 tons
  • Tower: 40 - 91 tons
  • Rotor + hub: 11,5 tons
  • Total: 99 - 150 tons

Rotor

  • Minimum rotor speed: 19,44 rd/min
  • Maximum rotor speed: 30,8 rd/min
  • Cut-in wind speed: 3 m/s
  • Rated wind speed: 14,5 m/s
  • Cut-off wind speed: 25 m/s
  • Manufacturer: Gamesa

Gear box

  • Gear box: yes
  • Stages: 3
  • Gear ratio: 61,74
  • Manufacturer: Echesa, Fellar, Hansen, Lohman

Generator

  • Type: ASYNC
  • Number: 1
  • Maximum speed: 1900 rounds/minute
  • Voltage: 690 V
  • Manufacturer: Indar, Cantarey

Tower

  • Minimum hub height: 44 m
  • Maximum hub height: 74 m
  • Manufacturer: Gamesa

G58/850 - Gamesa - 850 kW
Michaël Pierrot - The Wind Power

Power curve




Wind farms in the database


Full list (179 wind farms)



Pictures

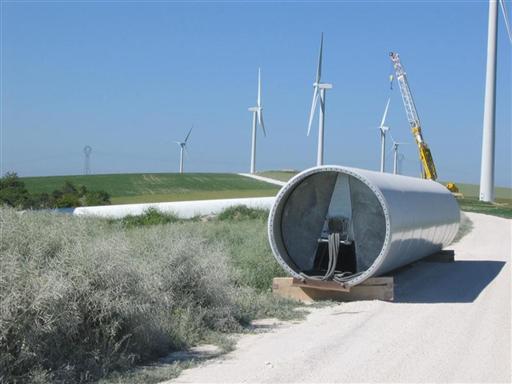

Turbine 100
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 100
Turbine 101
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 101

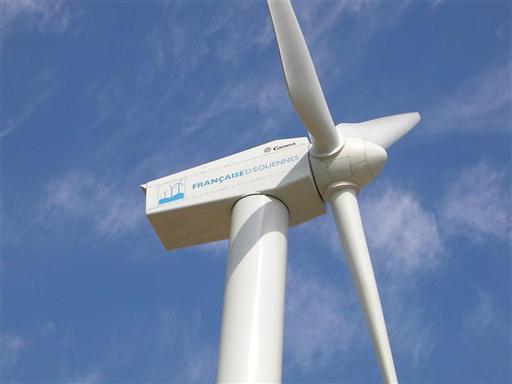

Turbine 102
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 102

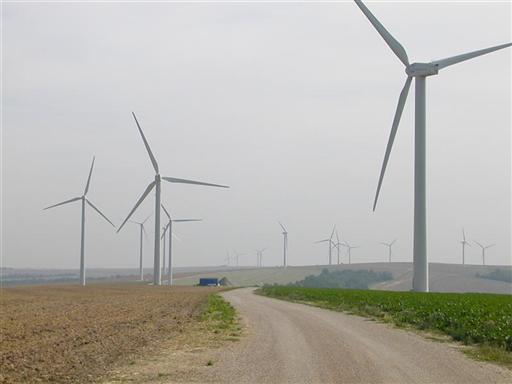

Turbine 103
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 103

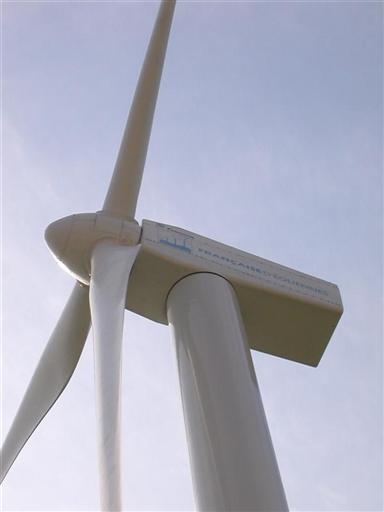

Turbine 104
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 104

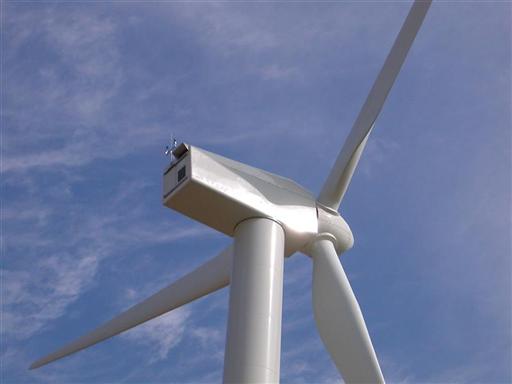

Turbine 105
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 105

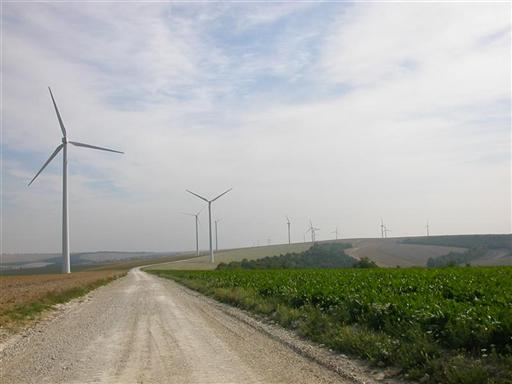

Turbine 106
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 106

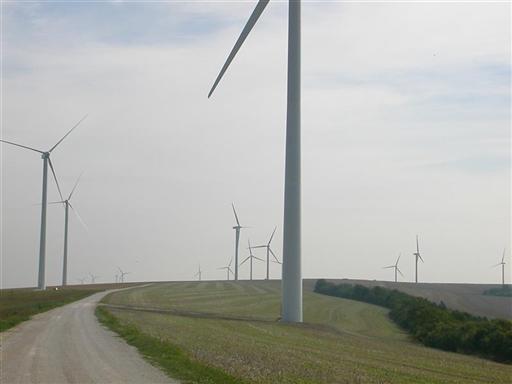

Turbine 107
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 107

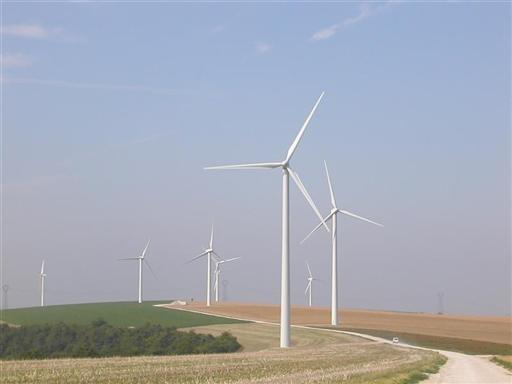

Turbine 108
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 108

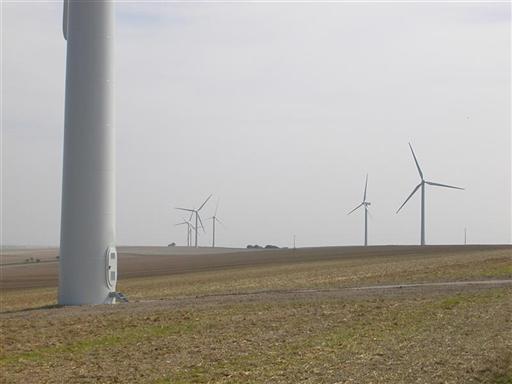

Turbine 109
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 109

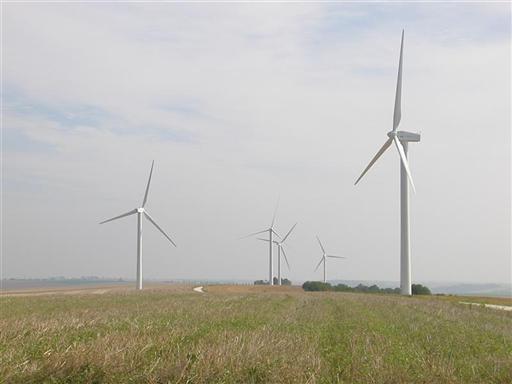

Turbine 110
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 110

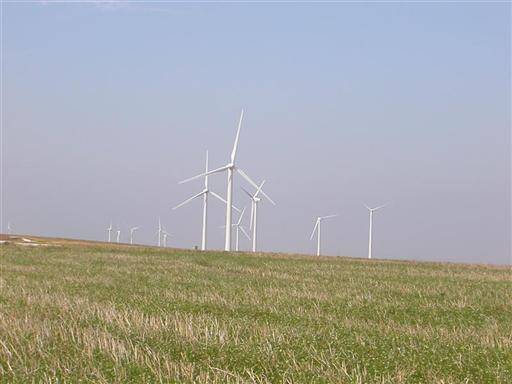

Turbine 111
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 111

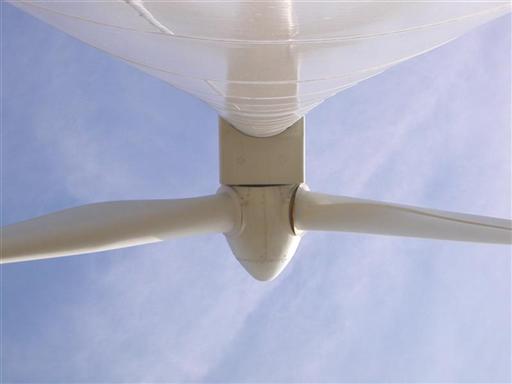

Turbine 112
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 112

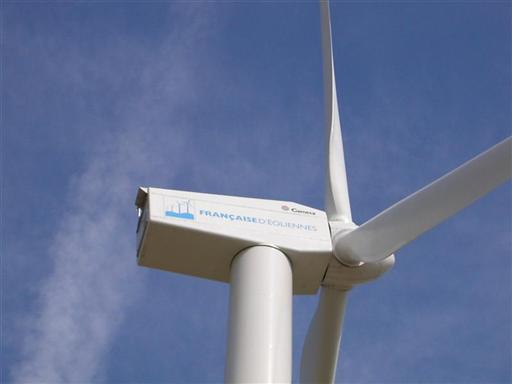

Turbine 113
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 113

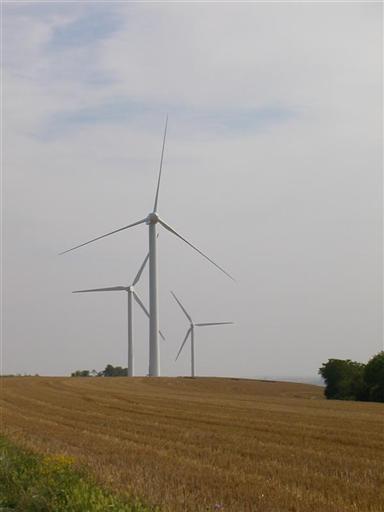

Turbine 114
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 114

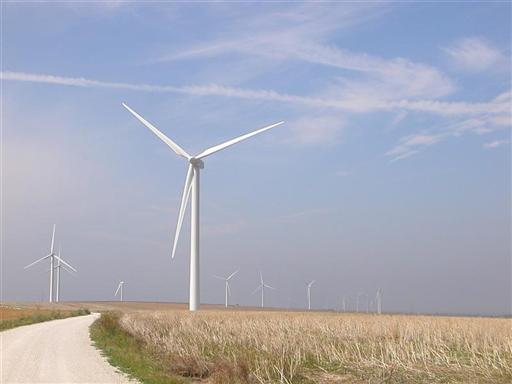

Turbine 115
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 115

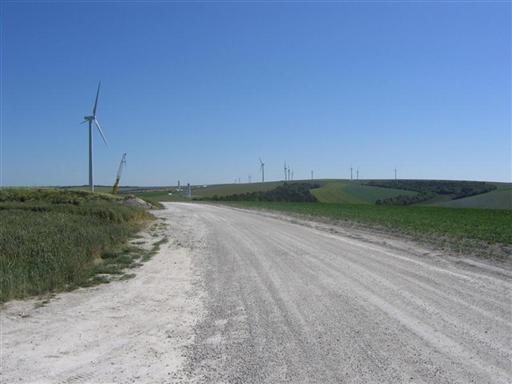

Turbine 116
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 116

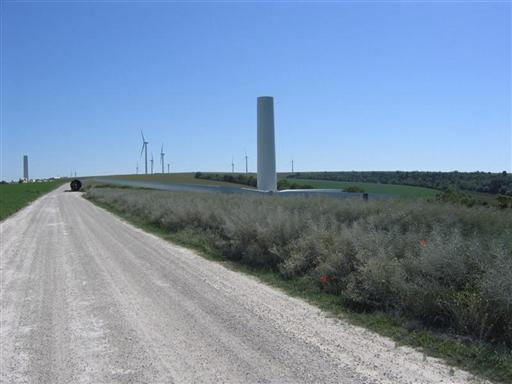

Turbine 117
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 117

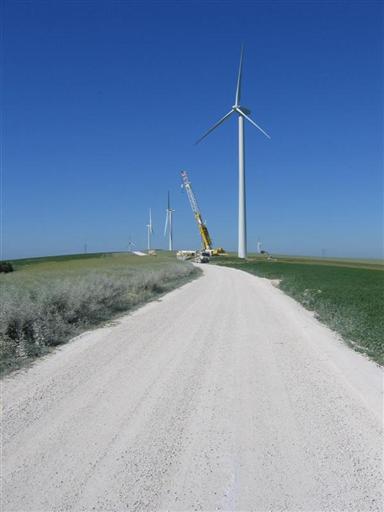

Turbine 118
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 118

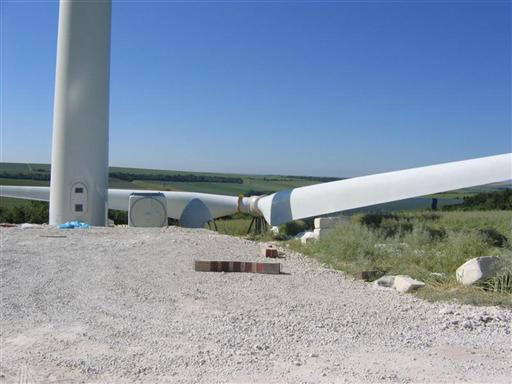

Turbine 119
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 119

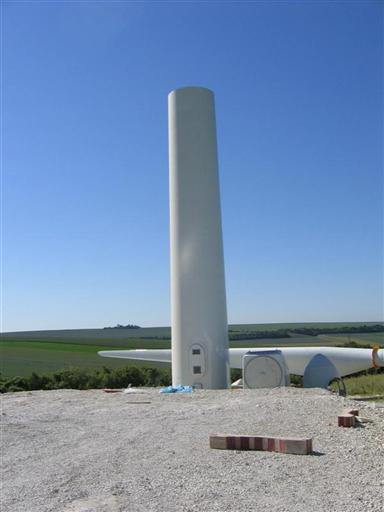

Turbine 120
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 120

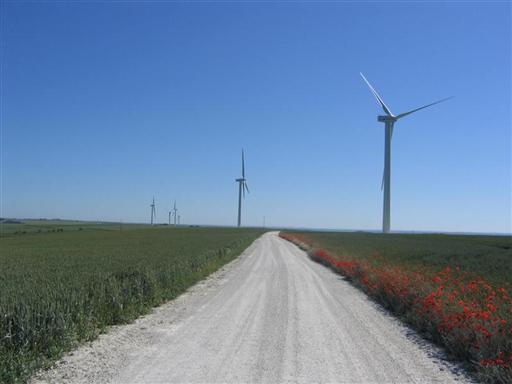

Turbine 121
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 121

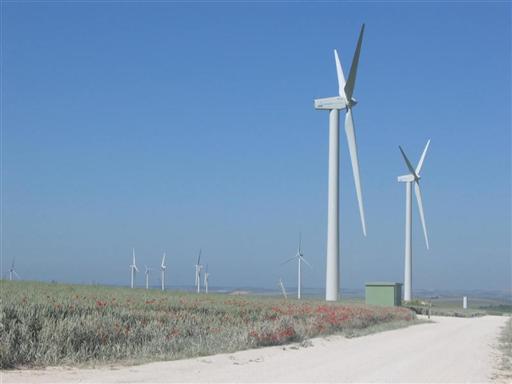

Turbine 122
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 122

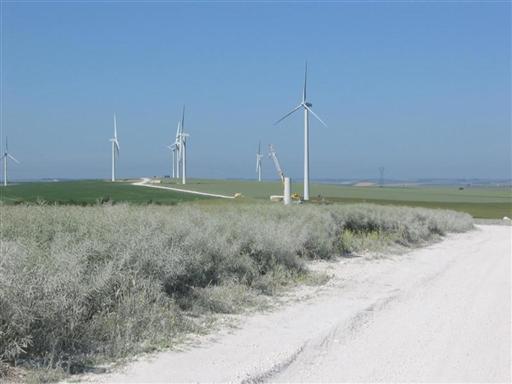

Turbine 123
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 123

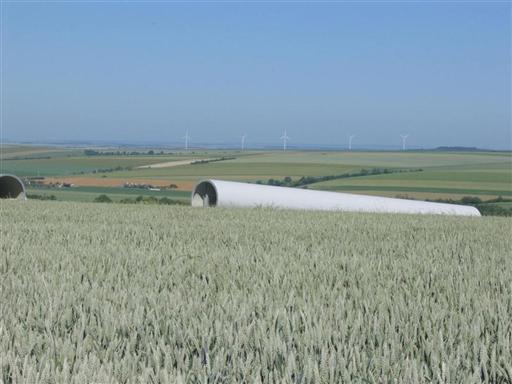

Turbine 124
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 124

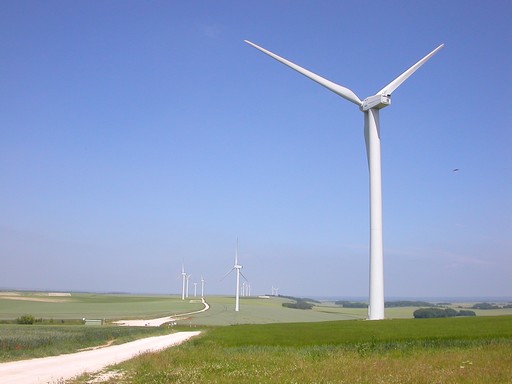

Turbine 1050
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1050

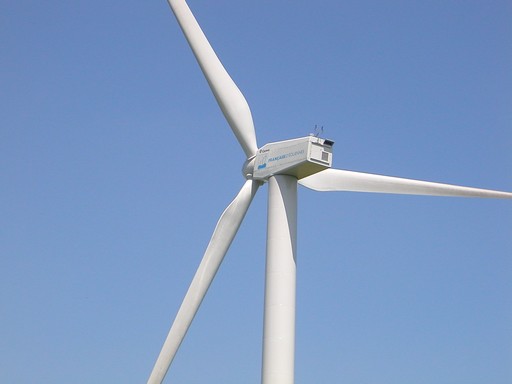

Turbine 1051
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1051

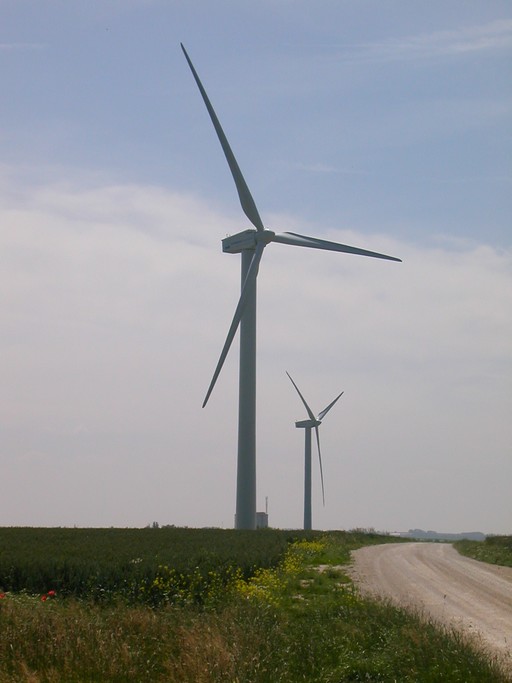

Turbine 1052
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1052

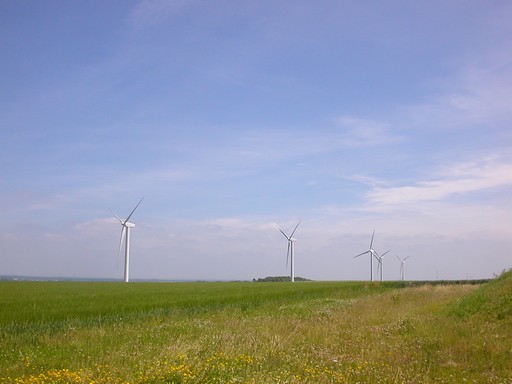

Turbine 1053
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1053

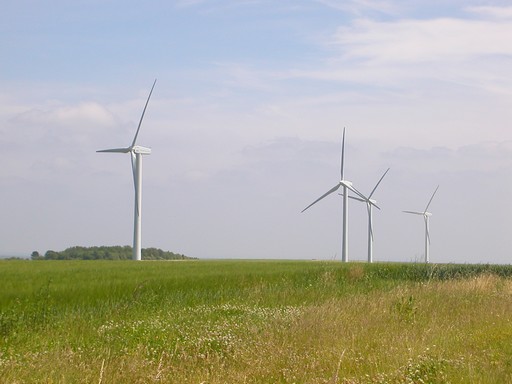

Turbine 1054
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1054

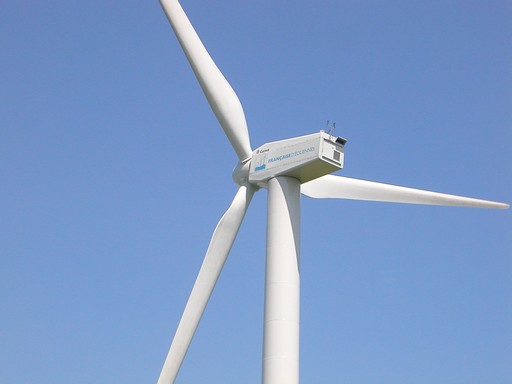

Turbine 1055
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1055

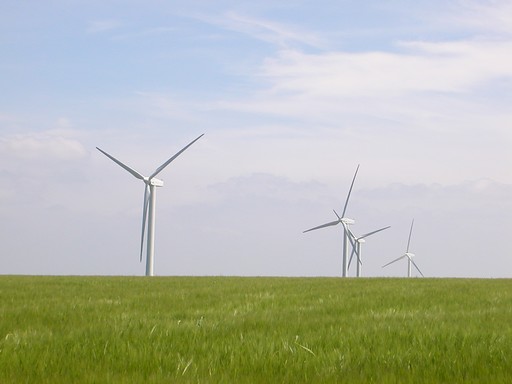

Turbine 1056
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1056
Turbine 1057
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1057

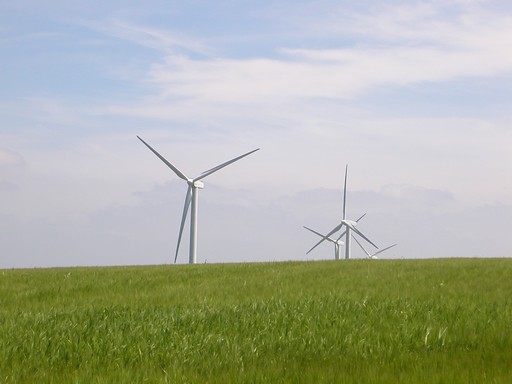

Turbine 1058
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1058

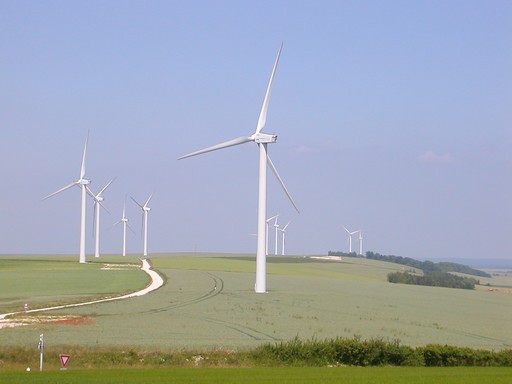

Turbine 1059
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1059

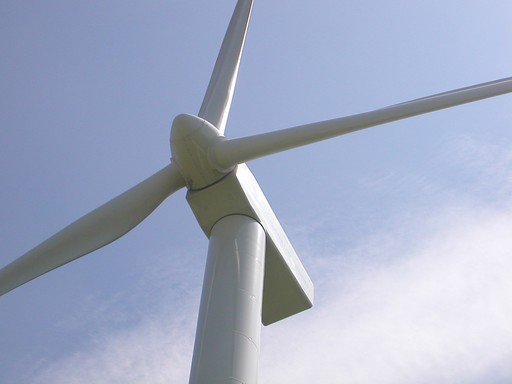

Turbine 1060
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1060

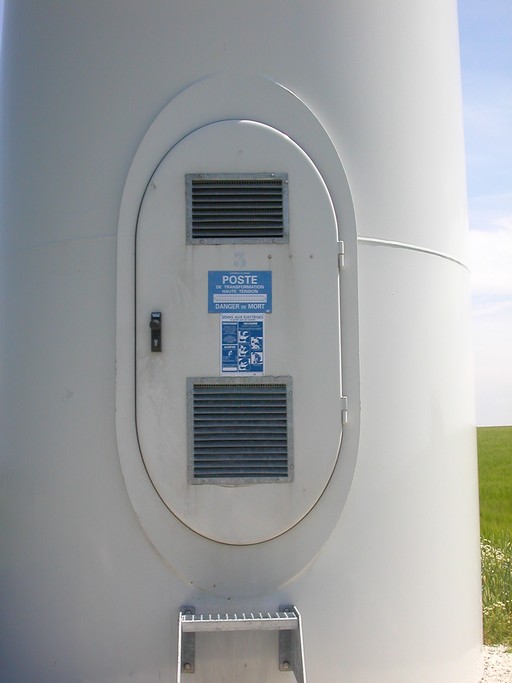

Turbine 1061
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1061

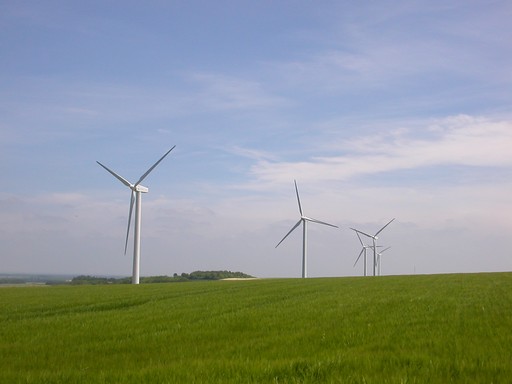

Turbine 1062
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1062

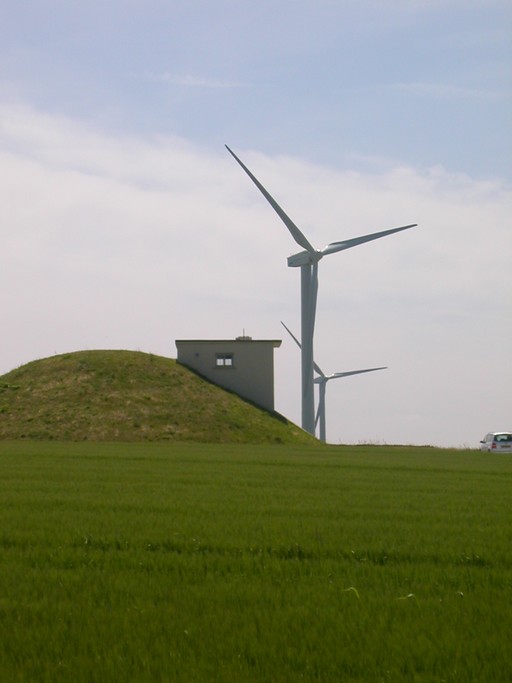

Turbine 1063
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1063
Turbine 1064
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1064

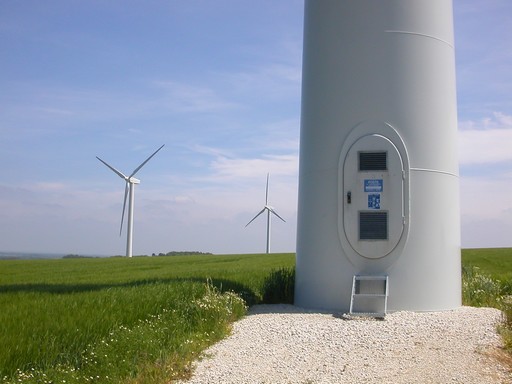

Turbine 1065
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1065

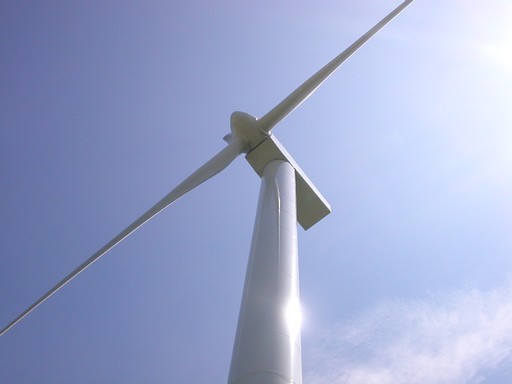

Turbine 1066
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1066

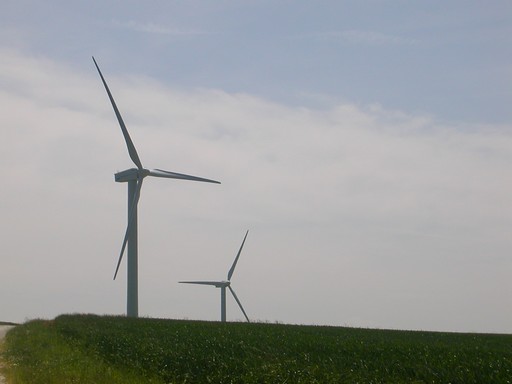

Turbine 1067
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1067

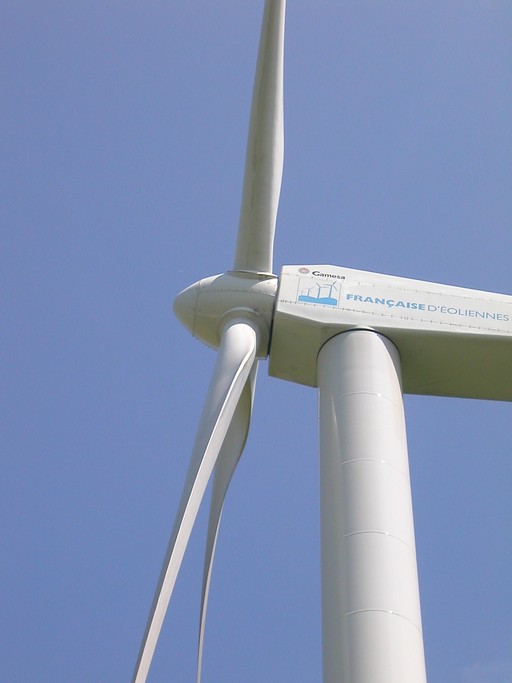

Turbine 1068
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1068

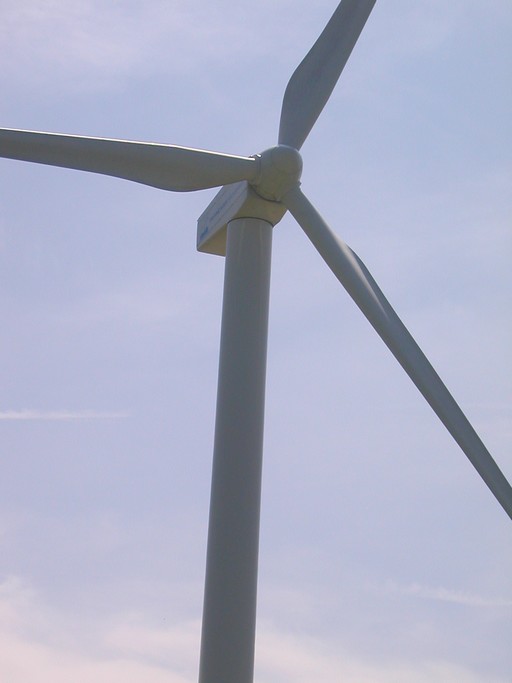

Turbine 1069
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1069

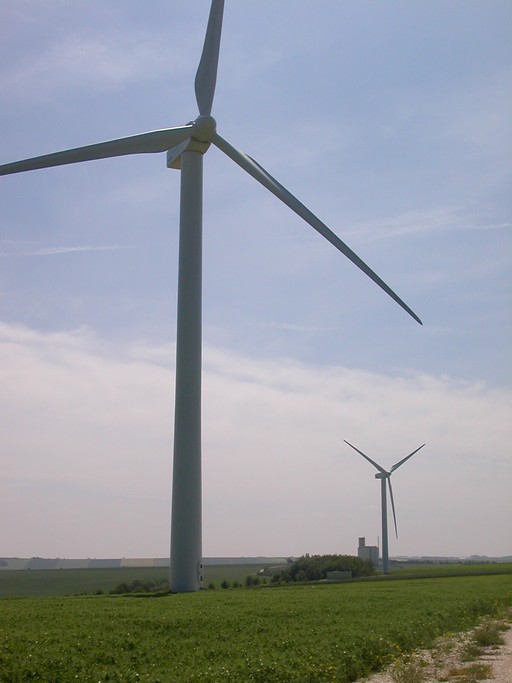

Turbine 1070
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1070

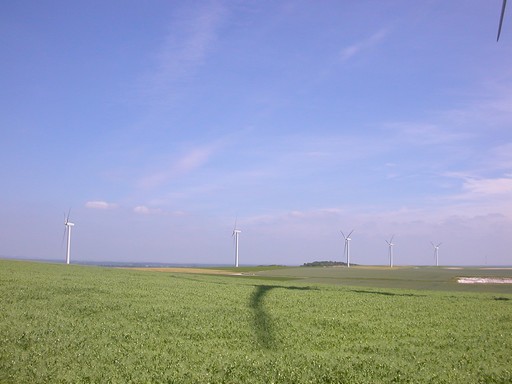

Turbine 1071
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1071

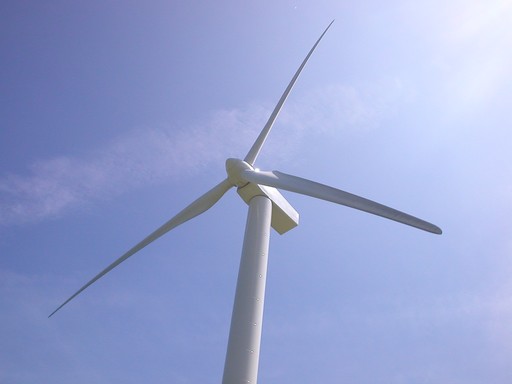

Turbine 1072
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1072

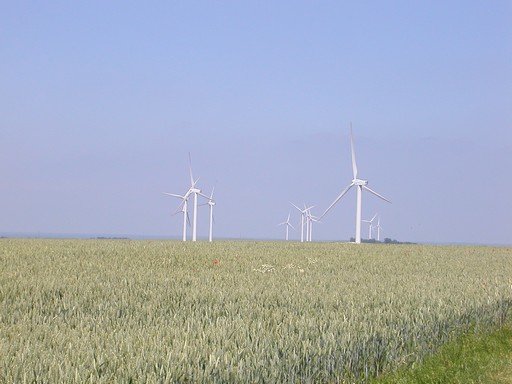

Turbine 1073
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1073

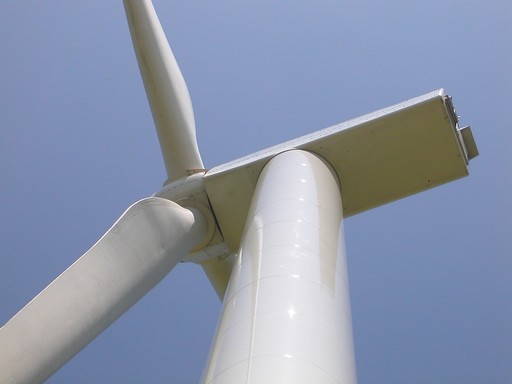

Turbine 1074
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1074

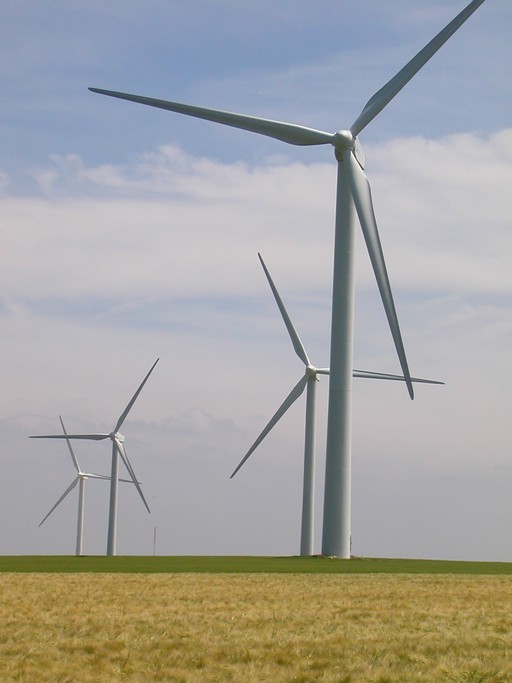

Turbine 1075
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1075

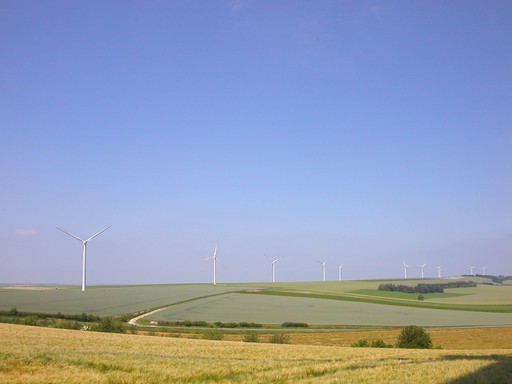

Turbine 1076
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1076

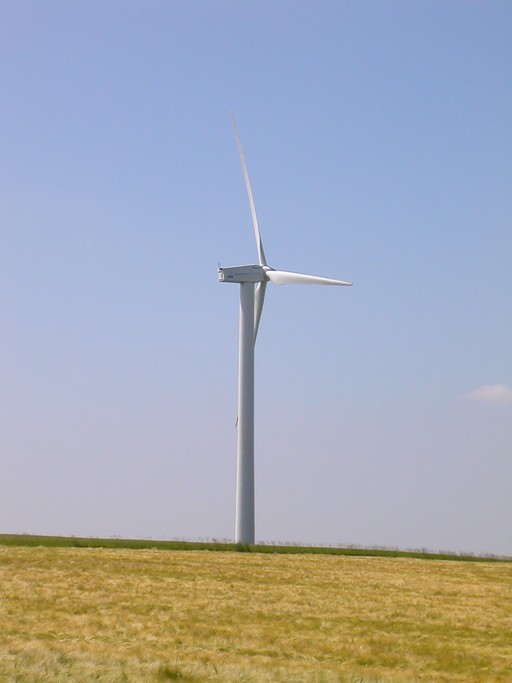

Turbine 1077
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1077

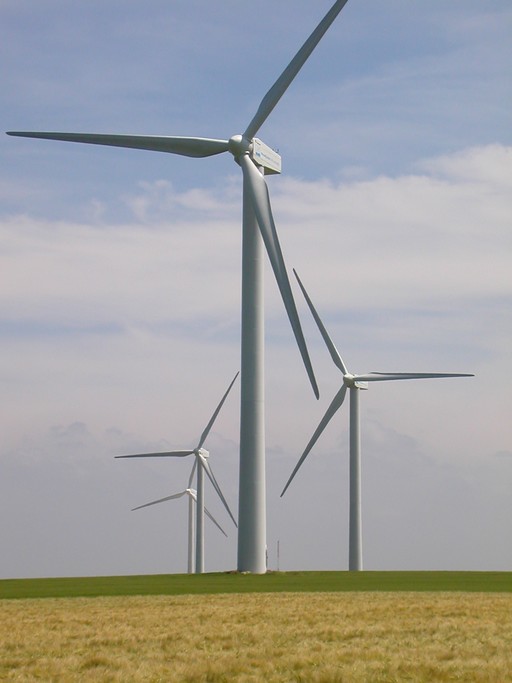

Turbine 1078
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1078

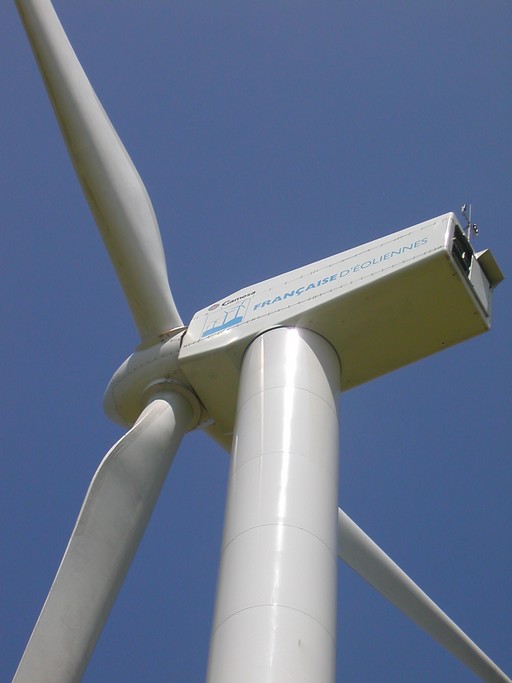

Turbine 1079
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1079

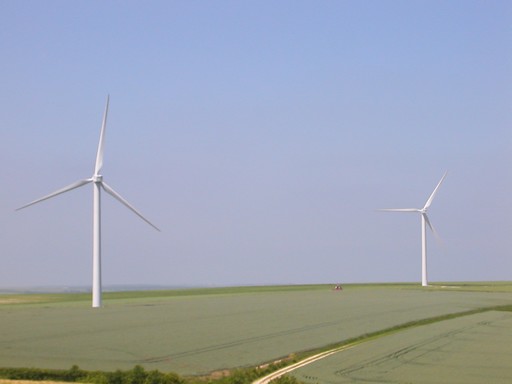

Turbine 1080
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1080

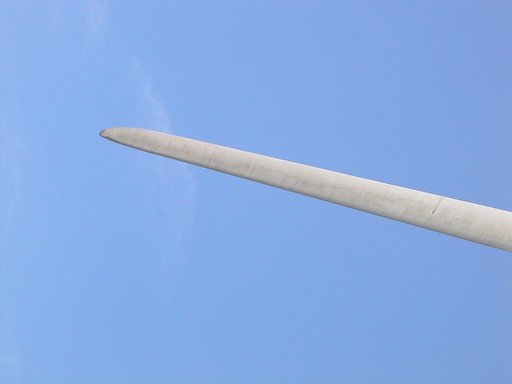

Turbine 1081
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1081

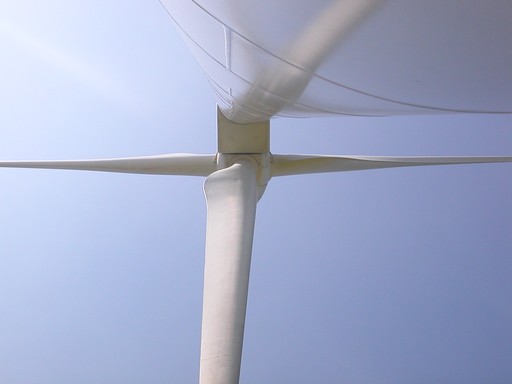

Turbine 1082
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1082

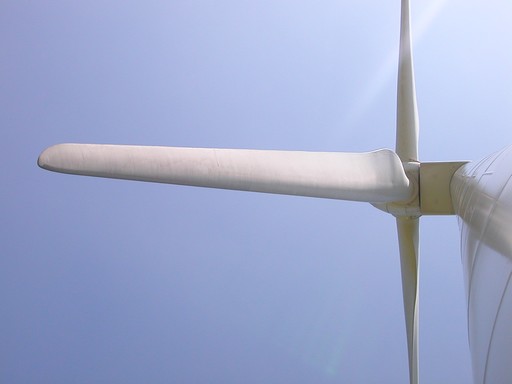

Turbine 1083
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1083

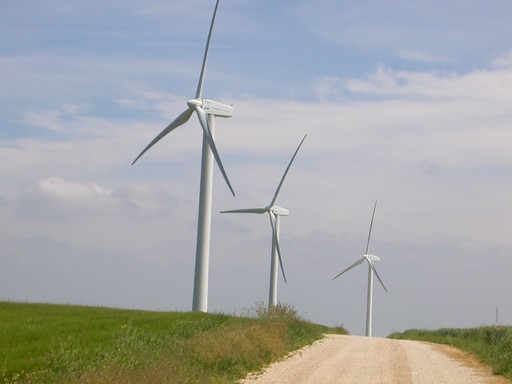

Turbine 1084
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1084

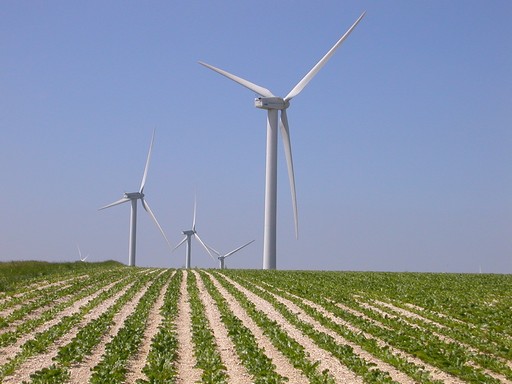

Turbine 1085
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1085

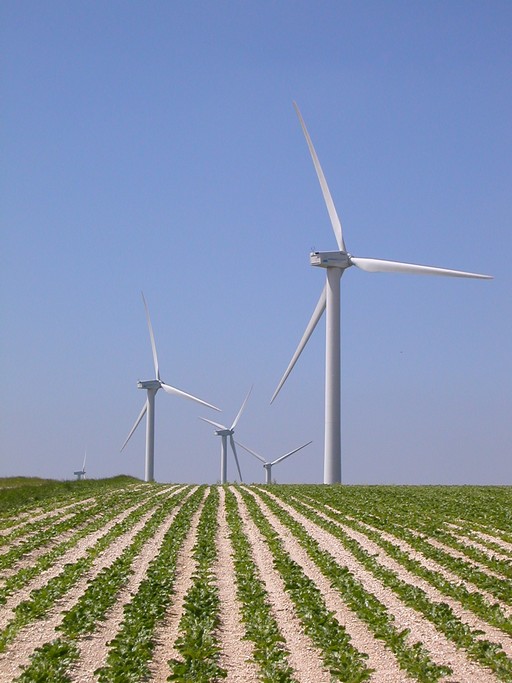

Turbine 1086
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1086

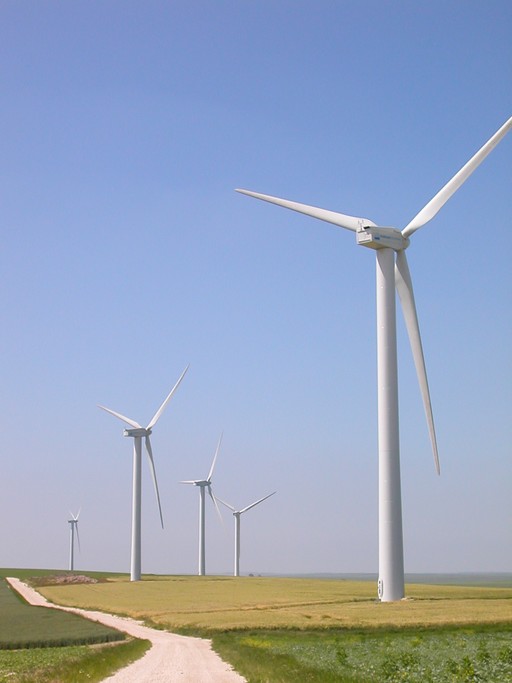

Turbine 1087
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1087

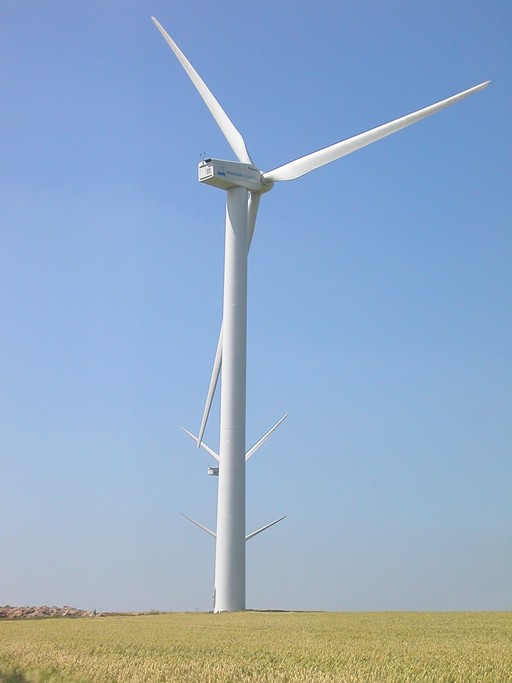

Turbine 1088
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1088

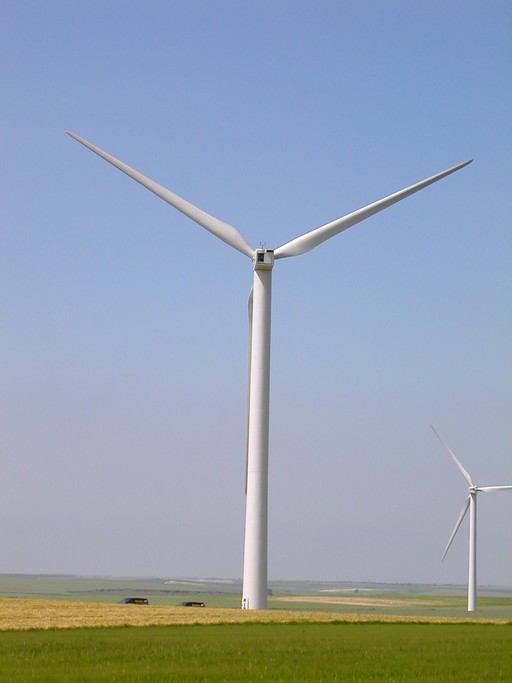

Turbine 1089
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1089

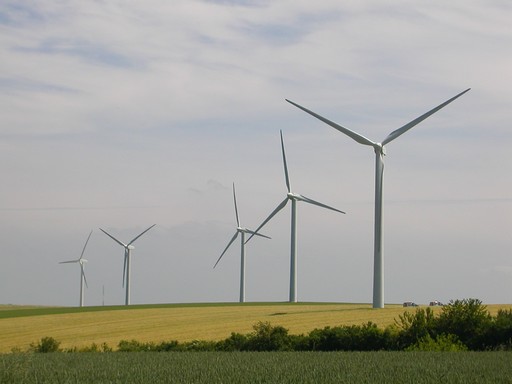

Turbine 1090
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1090

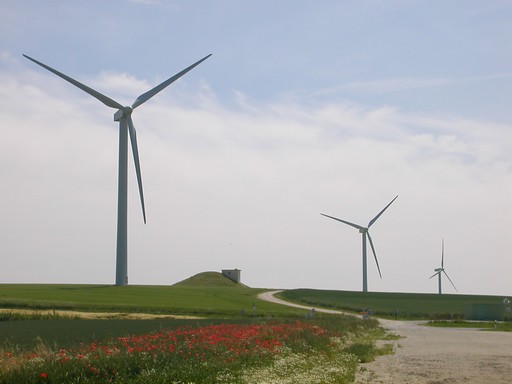

Turbine 1091
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1091

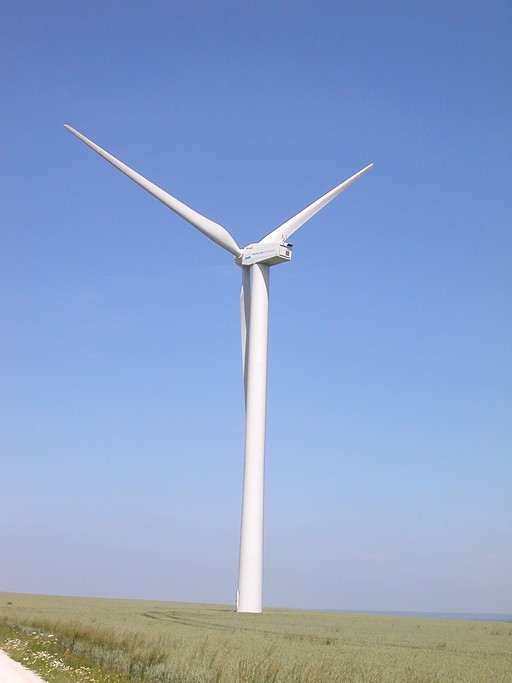

Turbine 1092
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1092

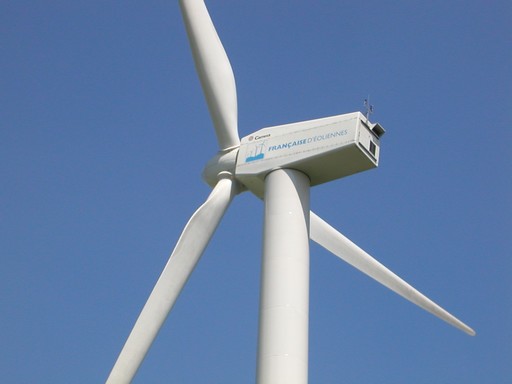

Turbine 1093
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1093

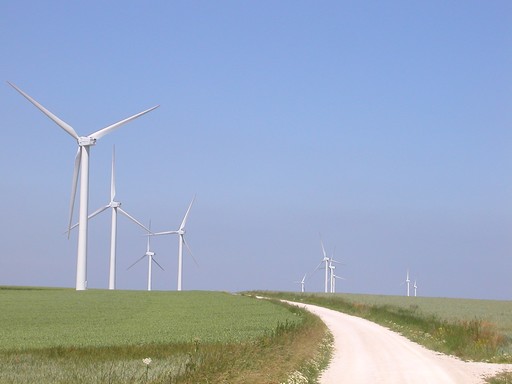

Turbine 1094
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1094

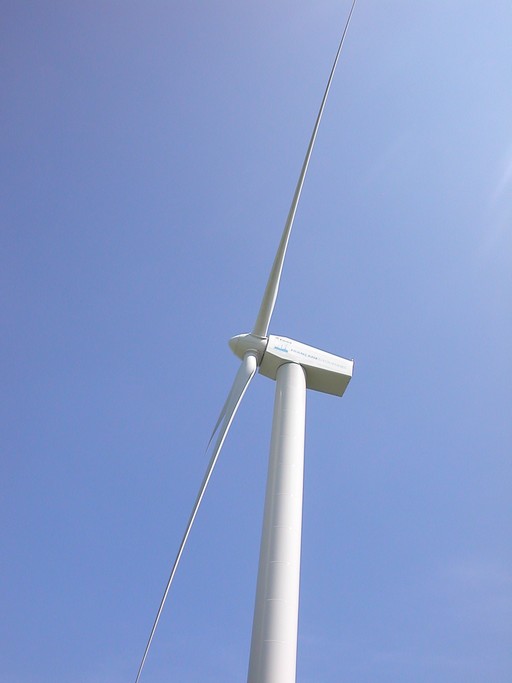

Turbine 1095
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1095

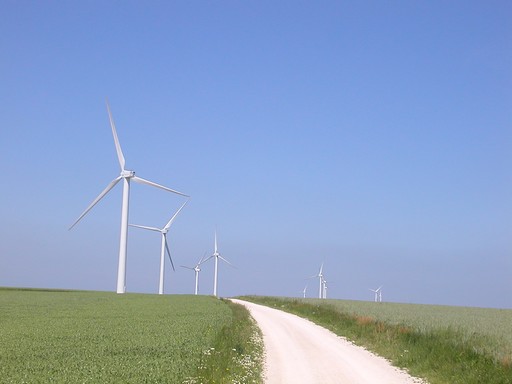

Turbine 1096
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1096

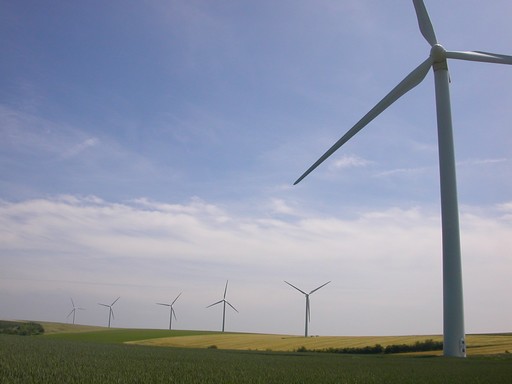

Turbine 1097
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1097

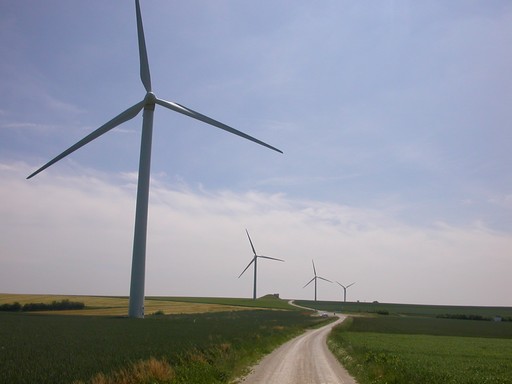

Turbine 1098
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1098

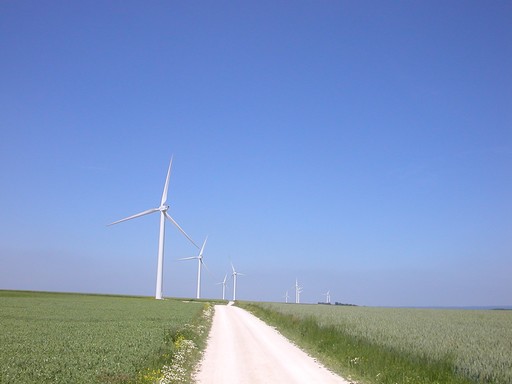

Turbine 1099
