General data

  • Manufacturer: Ecotecnia (Espagne)
  • Model: 80 1.6
  • Rated power: 1,670 kW
  • Rotor diameter: 80 m
  • No more available
  • Wind class: IEC IIIa
  • Offshore model: no
  • Swept area: 5,027 m²
  • Specific area: 3.01 m²/kW
  • Number of blades: 3
  • Power control: Pitch

Weights

  • Nacelle: 63 tons
  • Tower: 126 tons
  • Rotor + hub: 18 tons
  • Total: 207 tons

Rotor

  • Minimum rotor speed: 9,7 rd/min
  • Maximum rotor speed: 18,4 rd/min
  • Cut-in wind speed: 3 m/s
  • Rated wind speed: 12,5 m/s
  • Cut-off wind speed: 25 m/s
  • Manufacturer: LM Glasfiber

Gear box

  • Gear box: yes
  • Stages: 3
  • Gear ratio: 98,07
  • Manufacturer: Flender

Generator

  • Type: ASYNC
  • Number: 1
  • Voltage: 690 V

Tower

  • Minimum hub height: 60 m
  • Maximum hub height: 80 m

80 1.6 - Ecotecnia - 1670 kW
Wim

Power curve



(Air density: 1,225 kg/m3 - Altitude: 0 m - Temperature: 15°C)


Wind farms in the database


Full list (34 wind farms)



Pictures

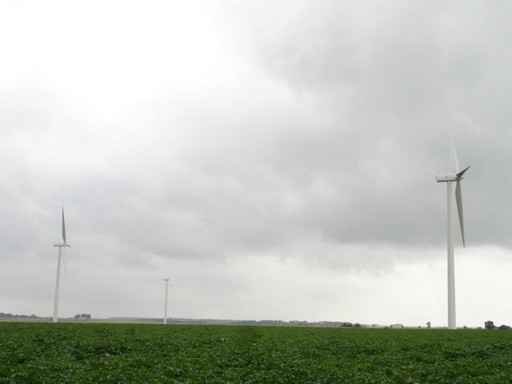

Turbine 4093
Author: Wim - License: All right reserved
Picture reference: 4093

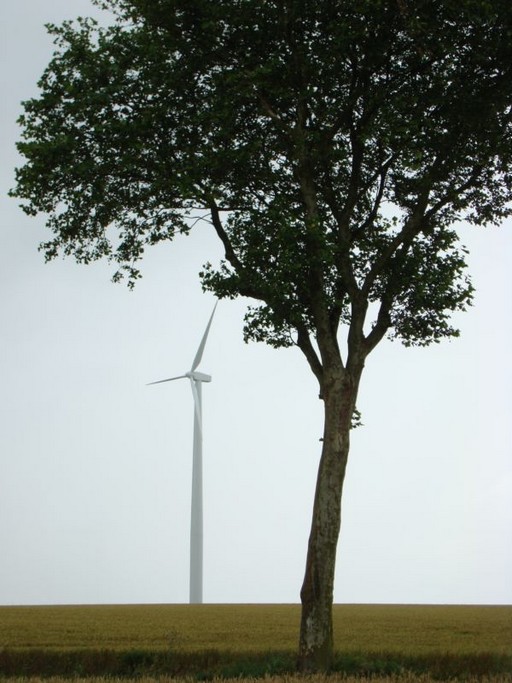

Turbine 4094
Author: Wim - License: All right reserved
Picture reference: 4094

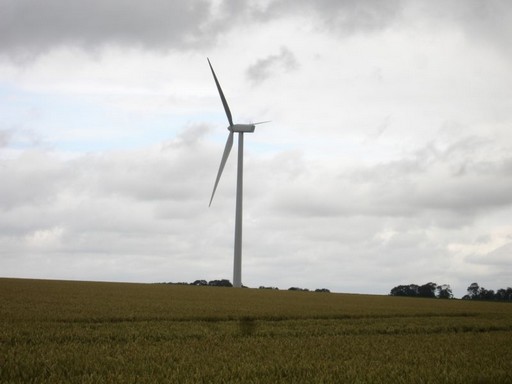

Turbine 4095
Author: Wim - License: All right reserved
Picture reference: 4095

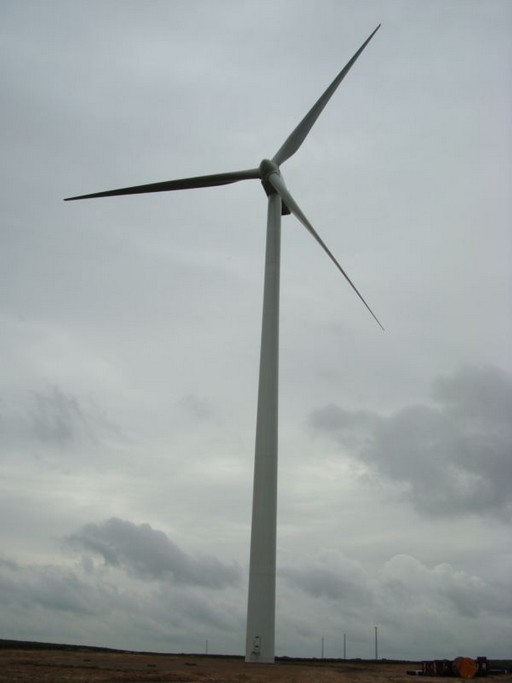

Turbine 4096
Author: Wim - License: All right reserved
Picture reference: 4096

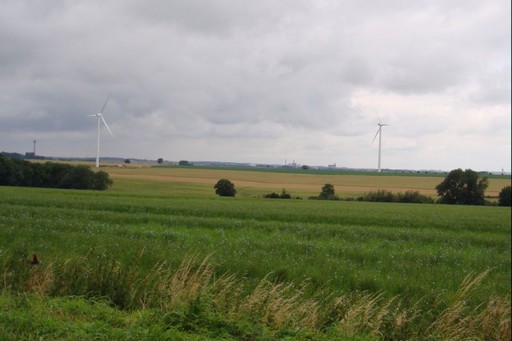

Turbine 4097
