General data

  • Manufacturer: Vestas (Danemark)
  • Model: V90/3000
  • Rated power: 3,000 kW
  • Rotor diameter: 90 m
  • No more available
  • Wind class: IEC Ia/IIa
  • Offshore model: no
  • Swept area: 6,362 m²
  • Specific area: 2.13 m²/kW
  • Number of blades: 3
  • Power control: Pitch
  • Commissioning: 2002

Weights

  • Nacelle: 68 tons
  • Tower: 155 - 235 tons
  • Rotor + hub: 28 tons
  • Total: 251 - 331 tons

Rotor

  • Minimum rotor speed: 8,6 rd/min
  • Maximum rotor speed: 18,4 rd/min
  • Cut-in wind speed: 3,5 m/s
  • Rated wind speed: 16,5 m/s
  • Cut-off wind speed: 25 m/s
  • Manufacturer: Vestas

Gear box

  • Gear box: yes
  • Stages: 3
  • Gear ratio: 104,5

Generator

  • Type: ASYNC
  • Number: 1
  • Maximum speed: 1680 rounds/minute
  • Voltage: 1000 V

Tower

  • Minimum hub height: 65 m
  • Maximum hub height: 105 m
  • Manufacturer: Vestas

V90/3000 - Vestas - 3000 kW
Patrick Lafforgue

Power curve



(Air density: 1,225 kg/m3)


Wind farms in the database


Full list (222 wind farms)



Pictures

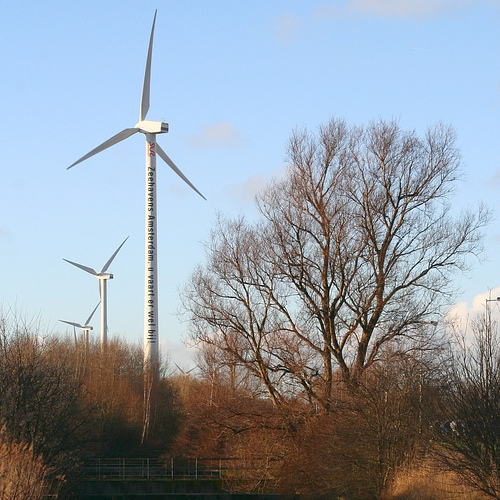

Turbine 5253
Author: Aloxe - License: Creative Commons BY-SA 2.0
Picture reference: 5253

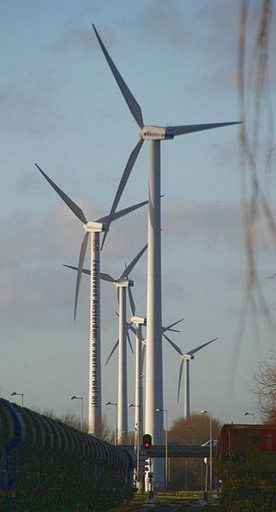

Turbine 5254
Author: Aloxe - License: Creative Commons BY-SA 2.0
Picture reference: 5254

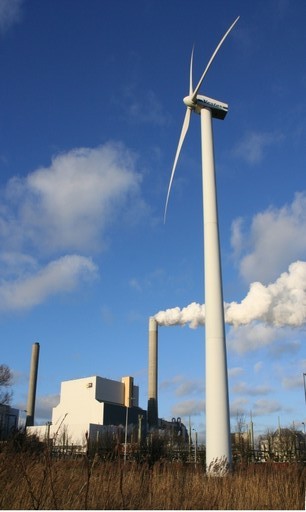

Turbine 5255
Author: Aloxe - License: Creative Commons BY-SA 2.0
Picture reference: 5255
Turbine 8197
Author: Ptitluis - License: All right reserved
Picture reference: 8197 - Date: 2009
Turbine 8198
Author: Ptitluis - License: All right reserved
Picture reference: 8198 - Date: 2009
Turbine 8199
Author: Ptitluis - License: All right reserved
Picture reference: 8199 - Date: 2009
Turbine 8200
Author: Ptitluis - License: All right reserved
Picture reference: 8200 - Date: 2009
Turbine 8201
Author: Ptitluis - License: All right reserved
Picture reference: 8201 - Date: 2009
Turbine 8400
Author: Rico - License: All right reserved
Picture reference: 8400 - Date: 2009
Turbine 8401
Author: Rico - License: All right reserved
Picture reference: 8401 - Date: 2009
Turbine 8402
Author: Rico - License: All right reserved
Picture reference: 8402 - Date: 2009
Turbine 8403
Author: Rico - License: All right reserved
Picture reference: 8403 - Date: 2009
Turbine 8404
Author: Rico - License: All right reserved
Picture reference: 8404 - Date: 2009
Turbine 8405
Author: Rico - License: All right reserved
Picture reference: 8405 - Date: 2009
Turbine 8406
Author: Rico - License: All right reserved
Picture reference: 8406 - Date: 2009
Turbine 8407
Author: Rico - License: All right reserved
Picture reference: 8407 - Date: 2009
Turbine 8408
Author: Rico - License: All right reserved
Picture reference: 8408 - Date: 2009
Turbine 8409
Author: Rico - License: All right reserved
Picture reference: 8409 - Date: 2009
Turbine 8410
Author: Rico - License: All right reserved
Picture reference: 8410 - Date: 2009
Turbine 8411
Author: Rico - License: All right reserved
Picture reference: 8411 - Date: 2009
Turbine 8412
Author: Rico - License: All right reserved
Picture reference: 8412 - Date: 2009
Turbine 8413
Author: Rico - License: All right reserved
Picture reference: 8413 - Date: 2009
Turbine 8414
Author: Rico - License: All right reserved
Picture reference: 8414 - Date: 2009
Turbine 8415
Author: Rico - License: All right reserved
Picture reference: 8415 - Date: 2009
Turbine 8416
Author: Rico - License: All right reserved
Picture reference: 8416 - Date: 2009
Turbine 8417
Author: Rico - License: All right reserved
Picture reference: 8417 - Date: 2009
Turbine 8418
Author: Rico - License: All right reserved
Picture reference: 8418 - Date: 2009
Turbine 8419
Author: Rico - License: All right reserved
Picture reference: 8419 - Date: 2009

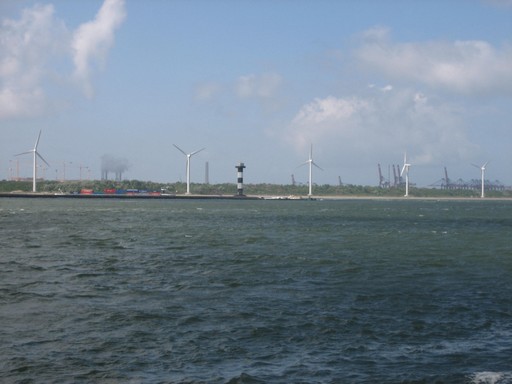

Turbine 8420
Author: Jérôme Fernandez - License: All right reserved
Picture reference: 8420

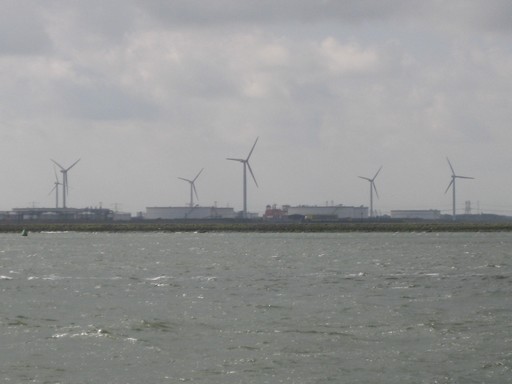

Turbine 8421
Author: Jérôme Fernandez - License: All right reserved
Picture reference: 8421

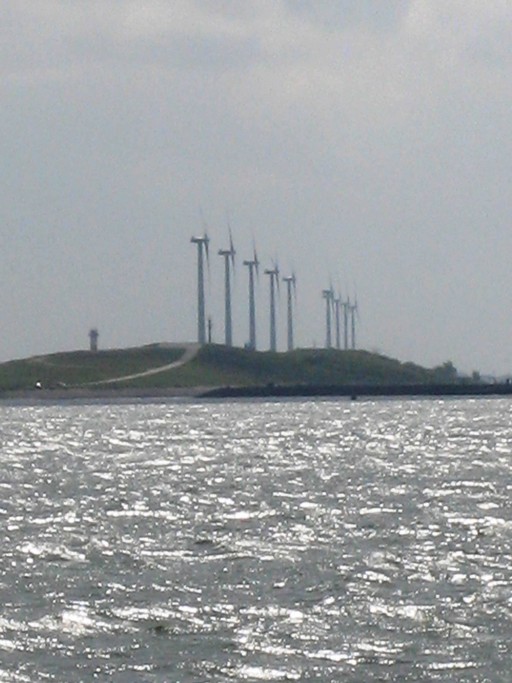

Turbine 8422
Author: Jérôme Fernandez - License: All right reserved
Picture reference: 8422
Turbine 8573
Author: François Bonnenfant - License: All right reserved
Picture reference: 8573 - Date: 2009
Turbine 8574
Author: François Bonnenfant - License: All right reserved
Picture reference: 8574 - Date: 2009
Turbine 8575
Author: François Bonnenfant - License: All right reserved
Picture reference: 8575 - Date: 2009
Turbine 8576
Author: François Bonnenfant - License: All right reserved
Picture reference: 8576 - Date: 2009
Turbine 8577
Author: François Bonnenfant - License: All right reserved
Picture reference: 8577 - Date: 2009
Turbine 8578
Author: François Bonnenfant - License: All right reserved
Picture reference: 8578 - Date: 2009
Turbine 8579
Author: François Bonnenfant - License: All right reserved
Picture reference: 8579 - Date: 2009
Turbine 8580
Author: François Bonnenfant - License: All right reserved
Picture reference: 8580 - Date: 2009
Turbine 8581
Author: François Bonnenfant - License: All right reserved
Picture reference: 8581 - Date: 2009
Turbine 8582
Author: François Bonnenfant - License: All right reserved
Picture reference: 8582 - Date: 2009
Turbine 8583
Author: François Bonnenfant - License: All right reserved
Picture reference: 8583 - Date: 2009
Turbine 8584
Author: François Bonnenfant - License: All right reserved
Picture reference: 8584 - Date: 2009
Turbine 8585
Author: François Bonnenfant - License: All right reserved
Picture reference: 8585 - Date: 2009
Turbine 8586
Author: François Bonnenfant - License: All right reserved
Picture reference: 8586 - Date: 2009
Turbine 8587
Author: François Bonnenfant - License: All right reserved
Picture reference: 8587 - Date: 2009
Turbine 8588
Author: François Bonnenfant - License: All right reserved
Picture reference: 8588 - Date: 2009
Turbine 8589
Author: François Bonnenfant - License: All right reserved
Picture reference: 8589 - Date: 2009
Turbine 8590
Author: François Bonnenfant - License: All right reserved
Picture reference: 8590 - Date: 2009
Turbine 8591
Author: François Bonnenfant - License: All right reserved
Picture reference: 8591 - Date: 2009
Turbine 8592
Author: François Bonnenfant - License: All right reserved
Picture reference: 8592 - Date: 2009
Turbine 8593
Author: François Bonnenfant - License: All right reserved
Picture reference: 8593 - Date: 2009
Turbine 8608
Author: François Bonnenfant - License: All right reserved
Picture reference: 8608 - Date: 2009
Turbine 8609
Author: François Bonnenfant - License: All right reserved
Picture reference: 8609 - Date: 2009
Turbine 8610
Author: François Bonnenfant - License: All right reserved
Picture reference: 8610 - Date: 2009
Turbine 8611
Author: François Bonnenfant - License: All right reserved
Picture reference: 8611 - Date: 2009
Turbine 8612
Author: François Bonnenfant - License: All right reserved
Picture reference: 8612 - Date: 2009
Turbine 8613
Author: François Bonnenfant - License: All right reserved
Picture reference: 8613 - Date: 2009
Turbine 8614
Author: François Bonnenfant - License: All right reserved
Picture reference: 8614 - Date: 2009
Turbine 8615
Author: François Bonnenfant - License: All right reserved
Picture reference: 8615 - Date: 2009
Turbine 8616
Author: François Bonnenfant - License: All right reserved
Picture reference: 8616 - Date: 2009
Turbine 8617
Author: François Bonnenfant - License: All right reserved
Picture reference: 8617 - Date: 2009
Turbine 8618
Author: François Bonnenfant - License: All right reserved
Picture reference: 8618 - Date: 2009

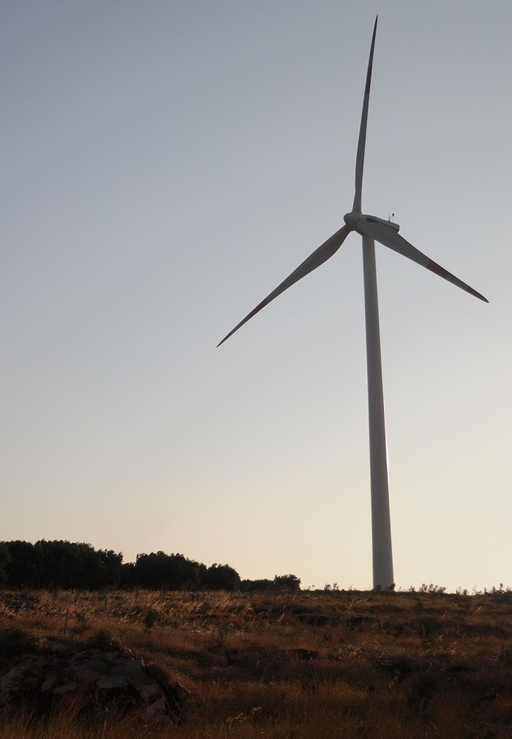

Turbine 9849
Author: Tefirom Group - License: All right reserved
Picture reference: 9849 - Date: 2010

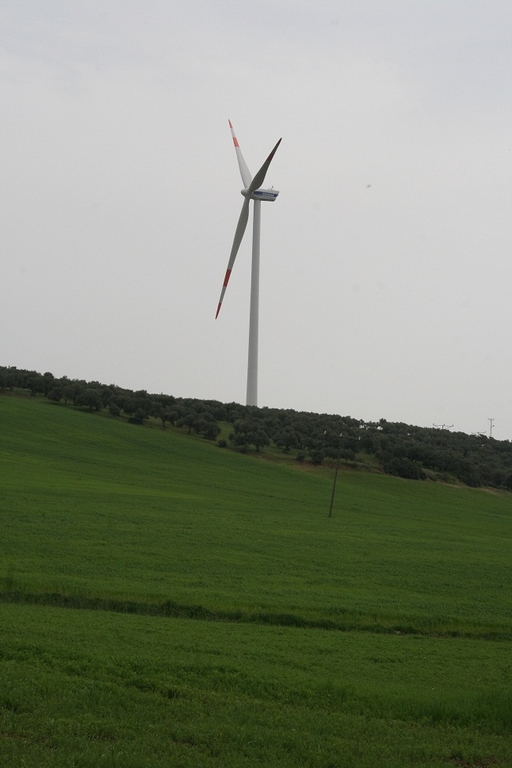

Turbine 9850
Author: Tefirom Group - License: All right reserved
Picture reference: 9850 - Date: 2010

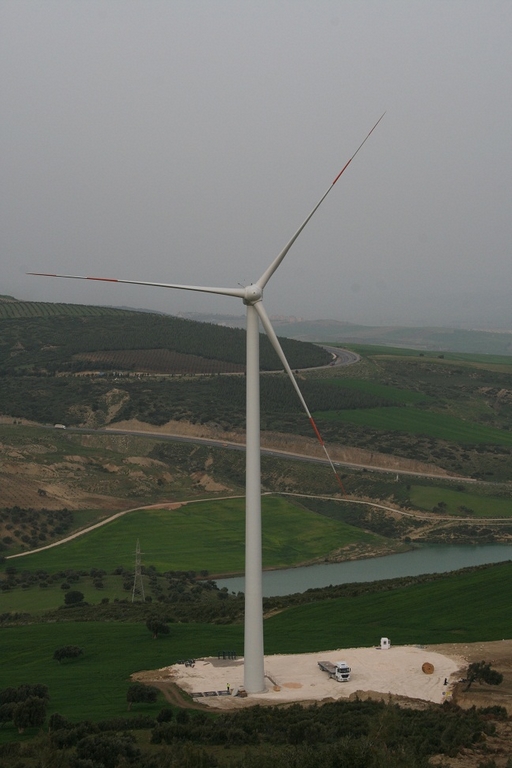

Turbine 9851
Author: Tefirom Group - License: All right reserved
Picture reference: 9851 - Date: 2010

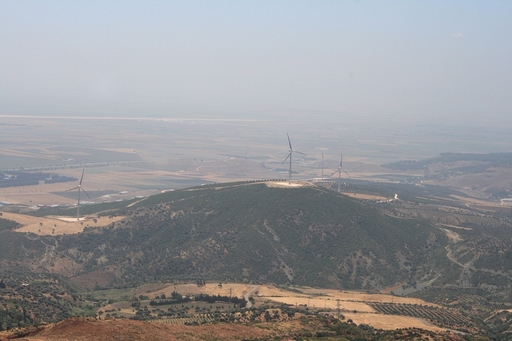

Turbine 9852
Author: Tefirom Group - License: All right reserved
Picture reference: 9852 - Date: 2010

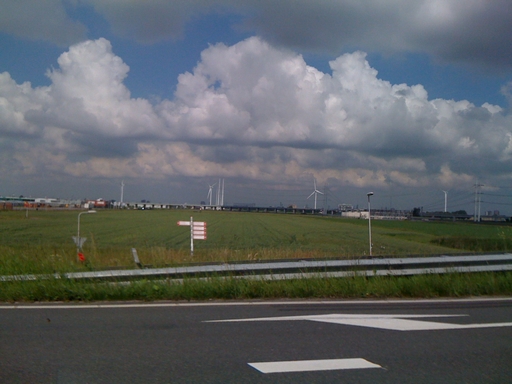

Turbine 10494
