General data

  • Manufacturer: Südwind (Allemagne)
  • Model: S70/1500
  • Rated power: 1,500 kW
  • Rotor diameter: 70 m
  • No more available
  • Offshore model: no
  • Swept area: 3,849 m²
  • Specific area: 2.57 m²/kW
  • Number of blades: 3

Weights

  • Nacelle: 56 tons
  • Tower: 260 tons
  • Rotor + hub: 32 tons
  • Total: 348 tons

Rotor

  • Maximum rotor speed: 19 rd/min
  • Cut-in wind speed: 4 m/s
  • Rated wind speed: 13 m/s
  • Cut-off wind speed: 25 m/s
  • Manufacturer: LM Glasfiber/SSP Technology

Gear box

  • Gear box: yes
  • Stages: 3
  • Gear ratio: 94

Generator

  • Type: ASYNC DF
  • Number: 1
  • Maximum speed: 1800 rounds/minute
  • Voltage: 690 V

Tower

  • Minimum hub height: 65 m
  • Maximum hub height: 114,5 m

Power curve




Wind farms in the database


Full list (41 wind farms)

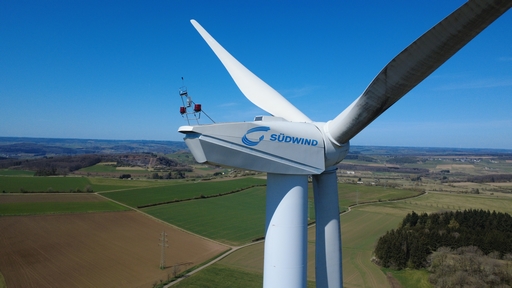

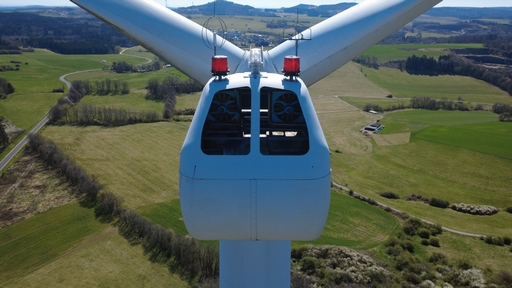

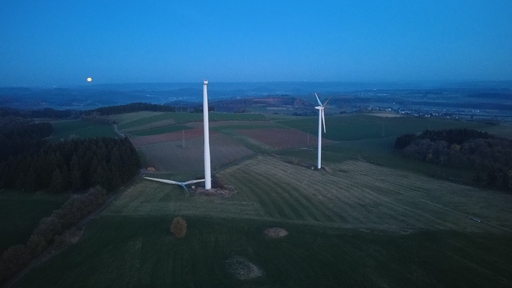

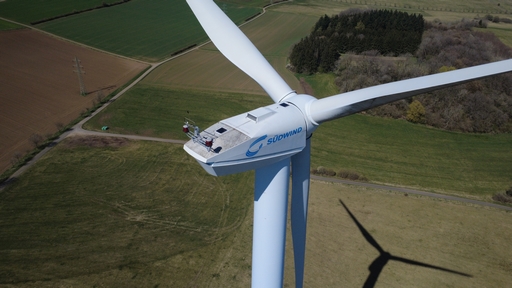

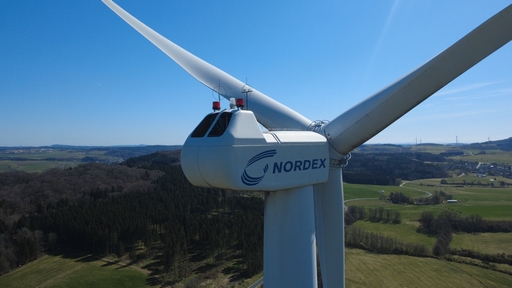

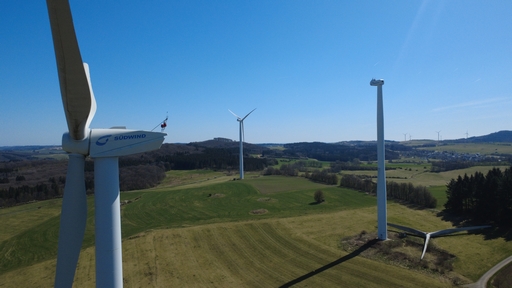

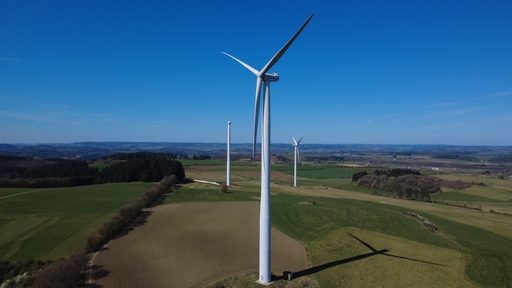

Pictures

Turbine 15700
Author: Gabriel Govaert - License: All right reserved
Picture reference: 15700 - Date: 2024
Turbine 15701
Author: Gabriel Govaert - License: All right reserved
Picture reference: 15701 - Date: 2024
Turbine 15702
Author: Gabriel Govaert - License: All right reserved
Picture reference: 15702 - Date: 2024
Turbine 15703
Author: Gabriel Govaert - License: All right reserved
Picture reference: 15703 - Date: 2024
Turbine 15704
Author: Gabriel Govaert - License: All right reserved
Picture reference: 15704 - Date: 2024
Turbine 15705
Author: Gabriel Govaert - License: All right reserved
Picture reference: 15705 - Date: 2024
Turbine 15706
Author: Gabriel Govaert - License: All right reserved
Picture reference: 15706 - Date: 2024
Turbine 15707
Author: Gabriel Govaert - License: All right reserved
Picture reference: 15707 - Date: 2024
Turbine 15708
Author: Gabriel Govaert - License: All right reserved
Picture reference: 15708 - Date: 2024
Turbine 15709
Author: Gabriel Govaert - License: All right reserved
Picture reference: 15709 - Date: 2024
Turbine 15710
Author: Gabriel Govaert - License: All right reserved
Picture reference: 15710 - Date: 2024
Turbine 15711
Author: Gabriel Govaert - License: All right reserved
Picture reference: 15711 - Date: 2024
Turbine 15712
Author: Gabriel Govaert - License: All right reserved
Picture reference: 15712 - Date: 2024
Turbine 15713
Author: Gabriel Govaert - License: All right reserved
Picture reference: 15713 - Date: 2024
Turbine 15714
Author: Gabriel Govaert - License: All right reserved
Picture reference: 15714 - Date: 2024
Turbine 15715
Author: Gabriel Govaert - License: All right reserved
Picture reference: 15715 - Date: 2024
Turbine 15716
Author: Gabriel Govaert - License: All right reserved
Picture reference: 15716 - Date: 2024
Turbine 15717
Author: Gabriel Govaert - License: All right reserved
Picture reference: 15717 - Date: 2024
Turbine 15718
Author: Gabriel Govaert - License: All right reserved
Picture reference: 15718 - Date: 2024
Turbine 15719
Author: Gabriel Govaert - License: All right reserved
Picture reference: 15719 - Date: 2024
Turbine 15720
Author: Gabriel Govaert - License: All right reserved
Picture reference: 15720 - Date: 2024
Turbine 15721
Author: Gabriel Govaert - License: All right reserved
Picture reference: 15721 - Date: 2024
Turbine 15722
Author: Gabriel Govaert - License: All right reserved
Picture reference: 15722 - Date: 2024
