General data

  • Manufacturer: Vergnet (France)
  • Model: GEV 26/200
  • Rated power: 200 kW
  • Rotor diameter: 26 m
  • No more available
  • Offshore model: no
  • Swept area: 531 m²
  • Specific area: 2.66 m²/kW
  • Number of blades: 2

Weights

  • Nacelle: 5,4 tons
  • Tower: 12 tons
  • Rotor + hub: 2 tons
  • Total: 19,4 tons

Rotor

  • Maximum rotor speed: 51 rd/min
  • Cut-in wind speed: 5 m/s
  • Rated wind speed: 13 m/s
  • Cut-off wind speed: 29 m/s
  • Manufacturer: Vergnet

Gear box

  • Gear box: yes
  • Stages: 2
  • Gear ratio: 30
  • Manufacturer: CMD

Generator

  • Type: ASYNC
  • Number: 1
  • Maximum speed: 1500 rounds/minute
  • Voltage: 400 V
  • Manufacturer: Leroy Somer

Tower

  • Minimum hub height: 50 m
  • Maximum hub height: 60 m

GEV 26/200 - Vergnet - 200 kW
Michaël Pierrot - The Wind Power

Wind farms in the database


Pictures

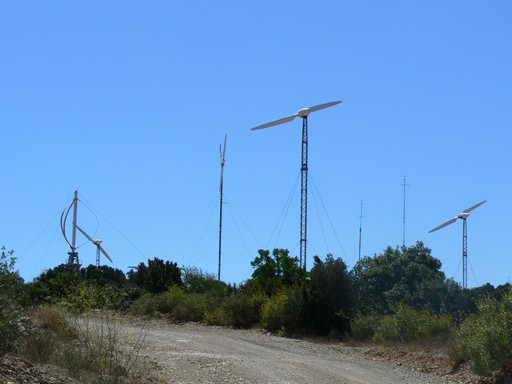

Turbine 1601
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1601

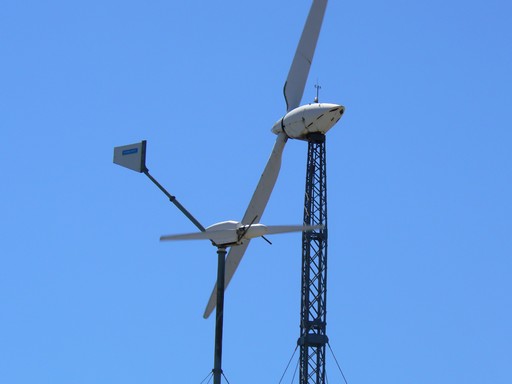

Turbine 1603
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1603
Turbine 1604
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1604

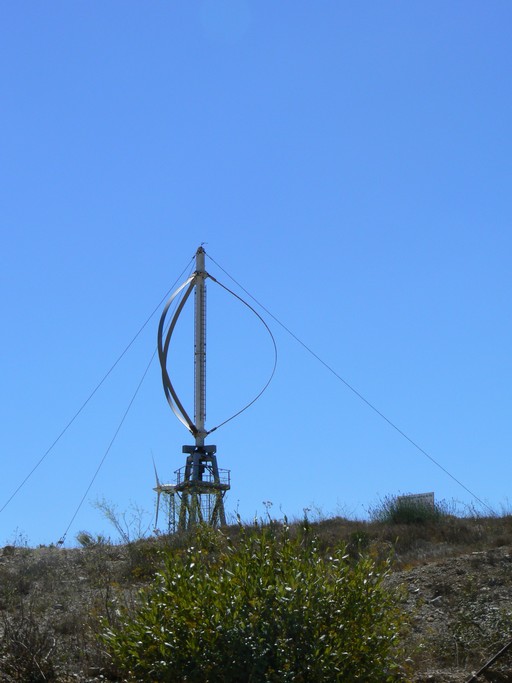

Turbine 1605
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1605

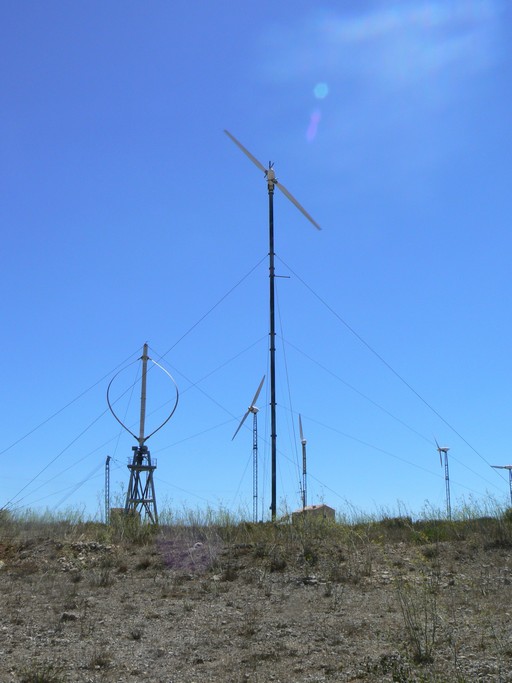

Turbine 1608
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1608

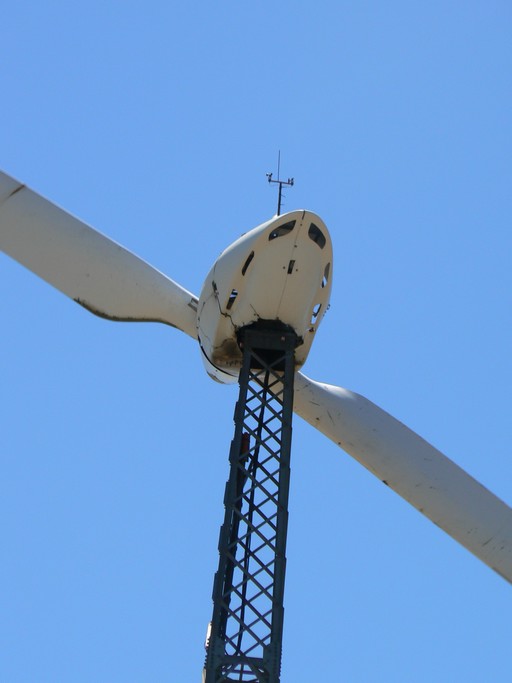

Turbine 1612
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1612

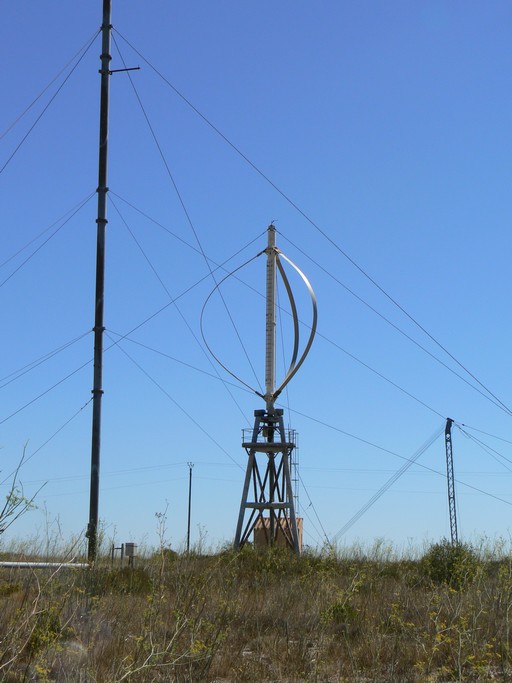

Turbine 1613
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1613

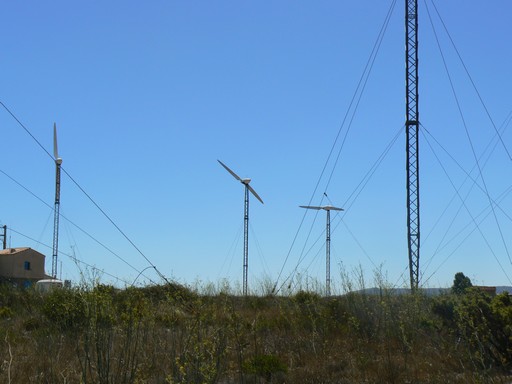

Turbine 1614
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1614

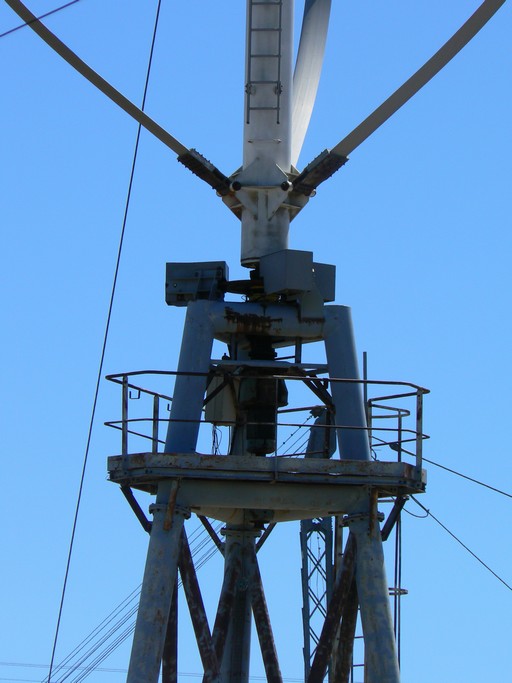

Turbine 1615
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1615

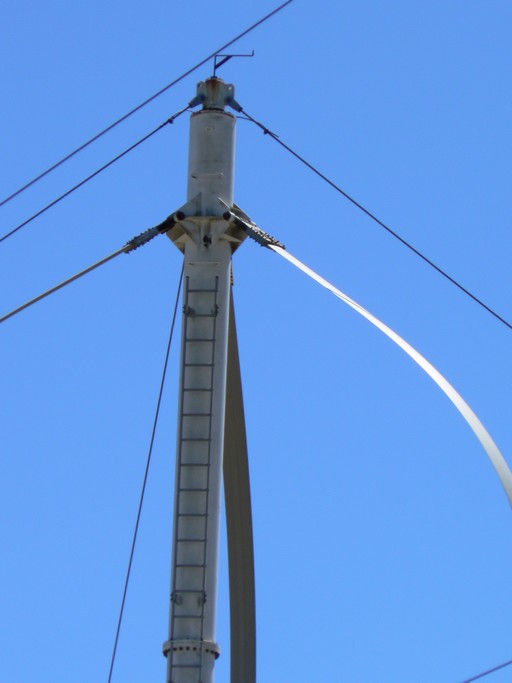

Turbine 1616
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1616

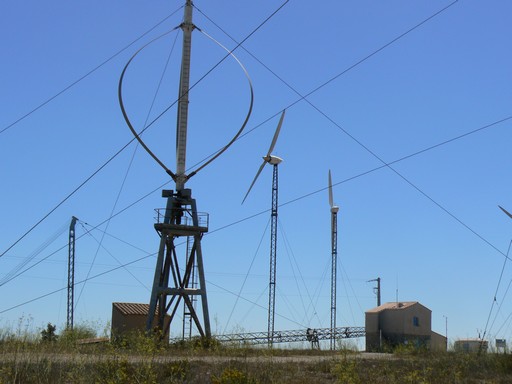

Turbine 1617
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1617
Turbine 1618
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1618

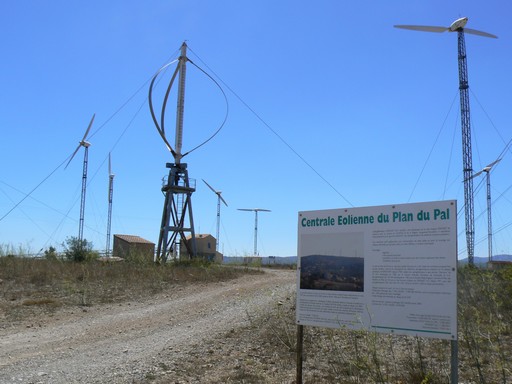

Turbine 1619
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1619

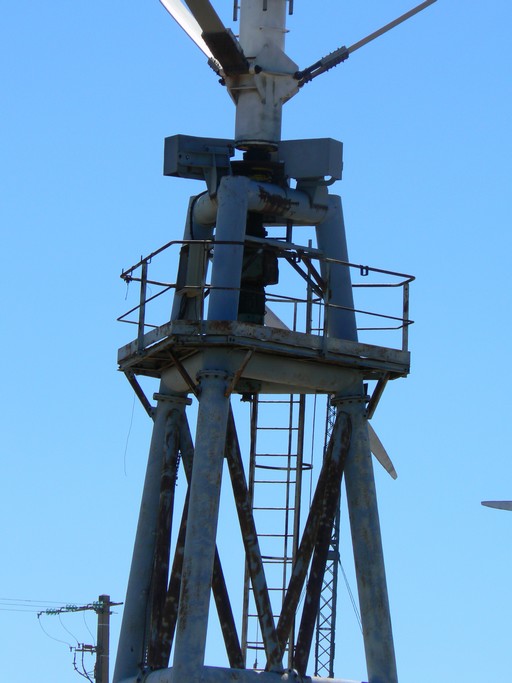

Turbine 1620
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1620
Turbine 1623
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1623


Update for this sheet: 8 January 2018
