General data

  • Manufacturer: Neg Micon (Danemark)
  • Model: NM52/900
  • Rated power: 900 kW
  • Rotor diameter: 52.2 m
  • No more available
  • Wind class: IEC I
  • Offshore model: no
  • Swept area: 2,141 m²
  • Specific area: 2.38 m²/kW
  • Number of blades: 3
  • Power control: Stall

Weights

  • Nacelle: 24,5 tons
  • Tower: 97 tons
  • Rotor + hub: 16,5 tons
  • Total: 138 tons

Rotor

  • Minimum rotor speed: 15 rd/min
  • Maximum rotor speed: 22,4 rd/min
  • Cut-in wind speed: 2,5 m/s
  • Rated wind speed: 15,5 m/s
  • Cut-off wind speed: 24 m/s
  • Manufacturer: LM Glasfiber

Gear box

  • Gear box: yes
  • Stages: 3
  • Gear ratio: 68
  • Manufacturer: Flender, Hansen

Generator

  • Type: ASYNC
  • Number: 1
  • Maximum speed: 1511 rounds/minute
  • Voltage: 690 V
  • Manufacturer: Leroy Sommer

Tower

  • Minimum hub height: 60 m
  • Maximum hub height: 74 m


NM52/900 - Neg Micon - 900 kW
André Debris

Power curve




Wind farms in the database


Full list (172 wind farms)



Pictures

Turbine 1859
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1859
Turbine 1860
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1860
Turbine 1861
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1861
Turbine 2062
Author: André Debris - License: All right reserved
Picture reference: 2062
Turbine 2063
Author: André Debris - License: All right reserved
Picture reference: 2063
Turbine 2064
Author: André Debris - License: All right reserved
Picture reference: 2064
Turbine 2065
Author: André Debris - License: All right reserved
Picture reference: 2065
Turbine 2066
Author: André Debris - License: All right reserved
Picture reference: 2066
Turbine 2067
Author: André Debris - License: All right reserved
Picture reference: 2067
Turbine 2068
Author: André Debris - License: All right reserved
Picture reference: 2068
Turbine 2069
Author: André Debris - License: All right reserved
Picture reference: 2069
Turbine 2070
Author: André Debris - License: All right reserved
Picture reference: 2070
Turbine 2071
Author: André Debris - License: All right reserved
Picture reference: 2071
Turbine 2072
Author: André Debris - License: All right reserved
Picture reference: 2072
Turbine 2073
Author: André Debris - License: All right reserved
Picture reference: 2073
Turbine 2074
Author: André Debris - License: All right reserved
Picture reference: 2074
Turbine 2075
Author: André Debris - License: All right reserved
Picture reference: 2075
Turbine 2076
Author: André Debris - License: All right reserved
Picture reference: 2076
Turbine 2077
Author: André Debris - License: All right reserved
Picture reference: 2077
Turbine 3362
Author: Charlélie Coutinho - License: All right reserved
Picture reference: 3362

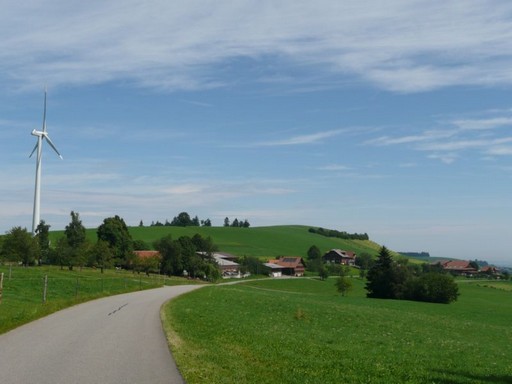

Turbine 3634
Author: Wim - License: All right reserved
Picture reference: 3634

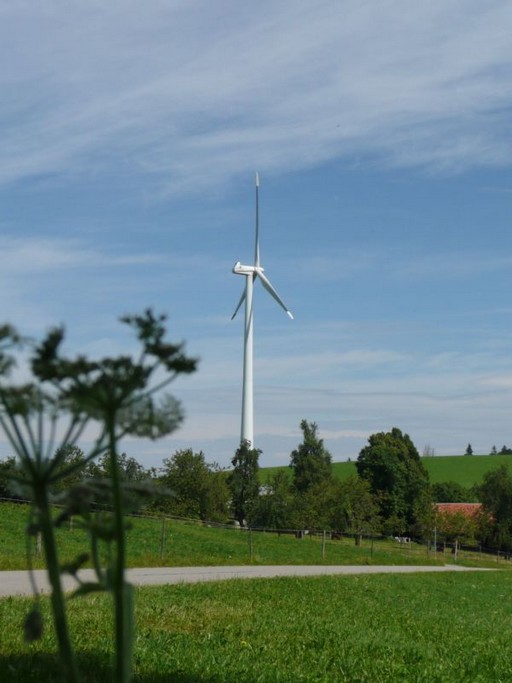

Turbine 3635
