General data

  • Manufacturer: Neg Micon (Danemark)
  • Model: NM64/1500
  • Rated power: 1,500 kW
  • Rotor diameter: 64 m
  • No more available
  • Offshore model: no
  • Swept area: 3,217 m²
  • Specific area: 2.15 m²/kW
  • Number of blades: 3

Weights

  • Nacelle: 43 tons
  • Tower: 113 tons

Rotor

  • Maximum rotor speed: 17 rd/min
  • Cut-in wind speed: 5 m/s
  • Rated wind speed: 15 m/s
  • Cut-off wind speed: 25 m/s
  • Manufacturer: LM Glasfiber

Gear box

  • Gear box: yes
  • Stages: 3
  • Gear ratio: 80

Generator

  • Type: ASYNC
  • Number: 2
  • Maximum speed: 1500 rounds/minute
  • Voltage: 690 V

Tower

  • Minimum hub height: 57 m
  • Maximum hub height: 70 m

NM64/1500 - Neg Micon - 1500 kW
Alien Technologie

Wind farms in the database


Full list (21 wind farms)



Pictures

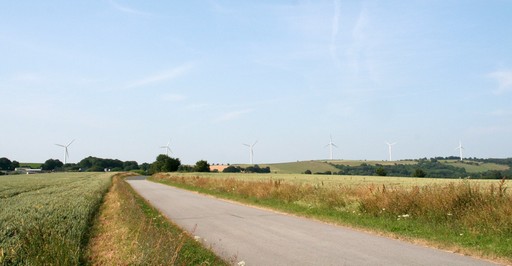

Turbine 1947
Source: Alien Technologie - License: All right reserved
Picture reference: 1947

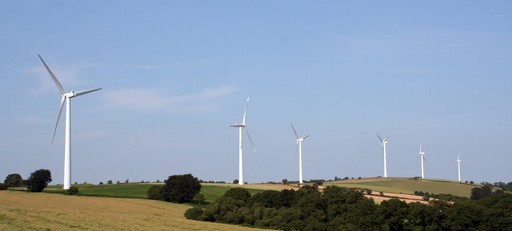

Turbine 1948
Source: Alien Technologie - License: All right reserved
Picture reference: 1948

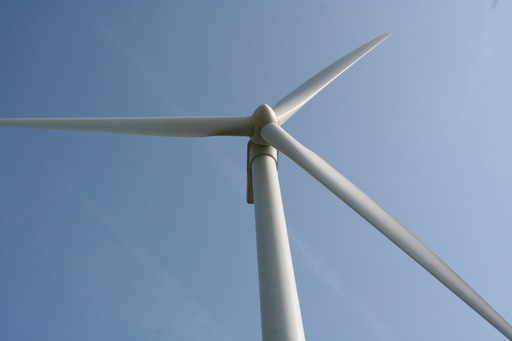

Turbine 1949
Source: Alien Technologie - License: All right reserved
Picture reference: 1949

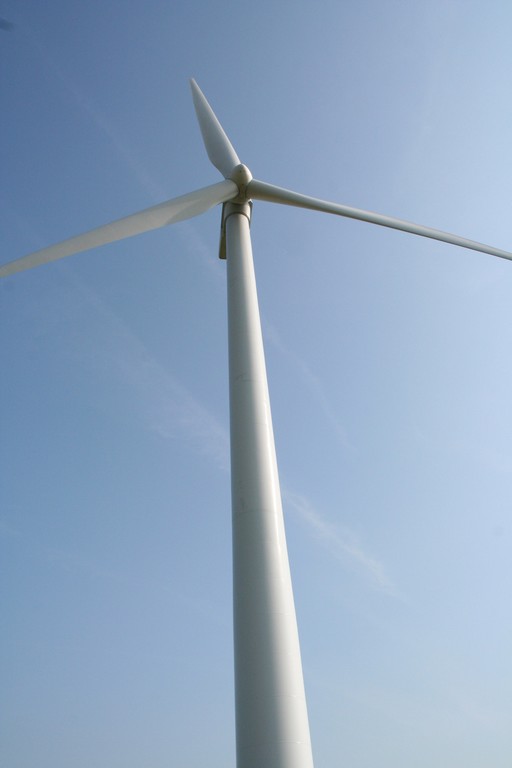

Turbine 1950
Source: Alien Technologie - License: All right reserved
Picture reference: 1950

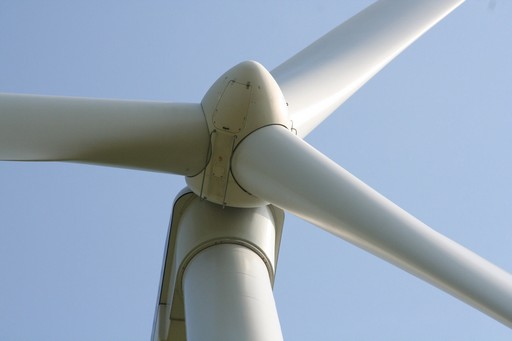

Turbine 1951
Source: Alien Technologie - License: All right reserved
Picture reference: 1951

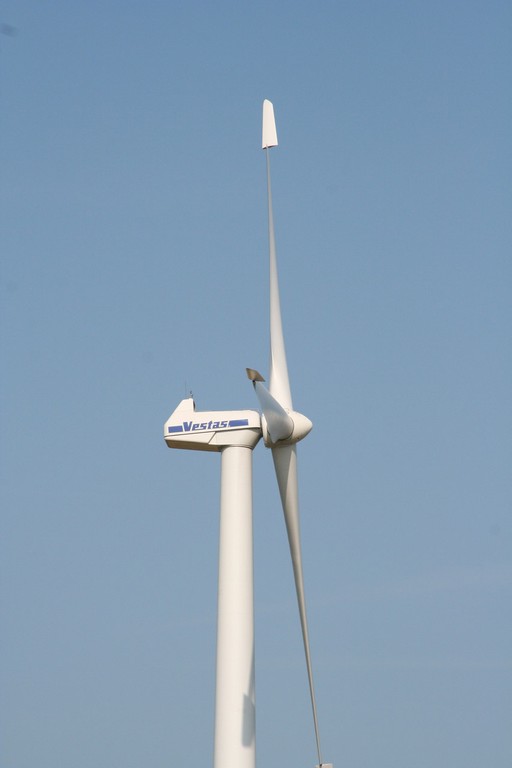

Turbine 1952
Source: Alien Technologie - License: All right reserved
Picture reference: 1952

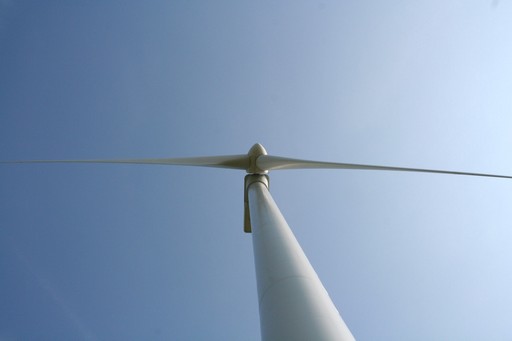

Turbine 1953
Source: Alien Technologie - License: All right reserved
Picture reference: 1953
Turbine 1954
Source: Alien Technologie - License: All right reserved
Picture reference: 1954

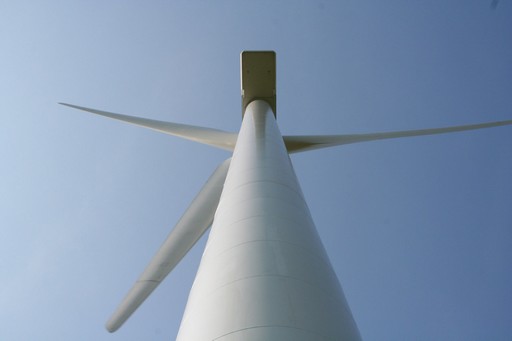

Turbine 1955
Source: Alien Technologie - License: All right reserved
Picture reference: 1955

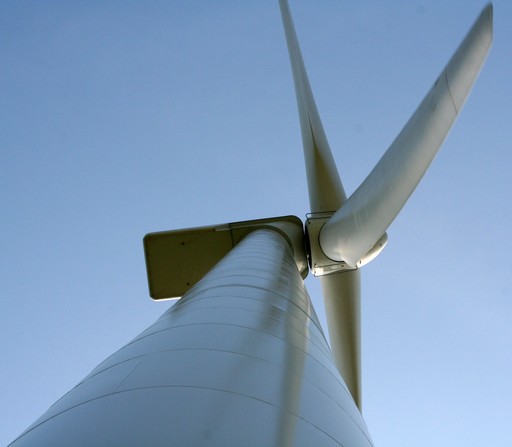

Turbine 1956
Source: Alien Technologie - License: All right reserved
Picture reference: 1956

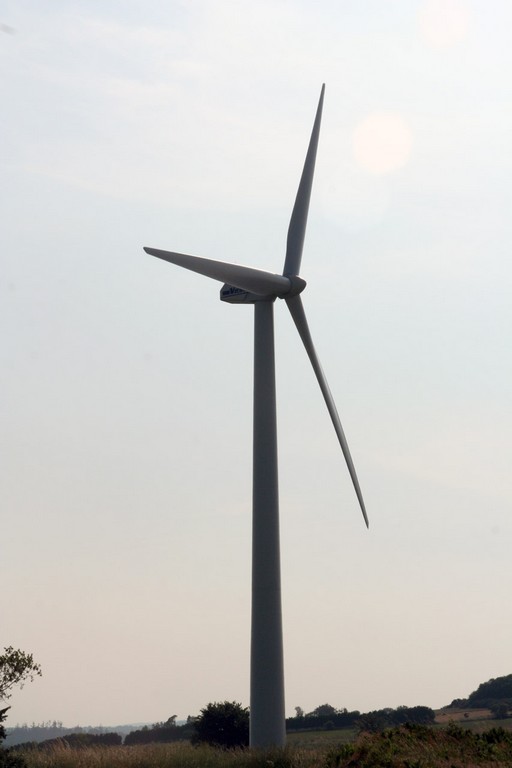

Turbine 1957
Source: Alien Technologie - License: All right reserved
Picture reference: 1957

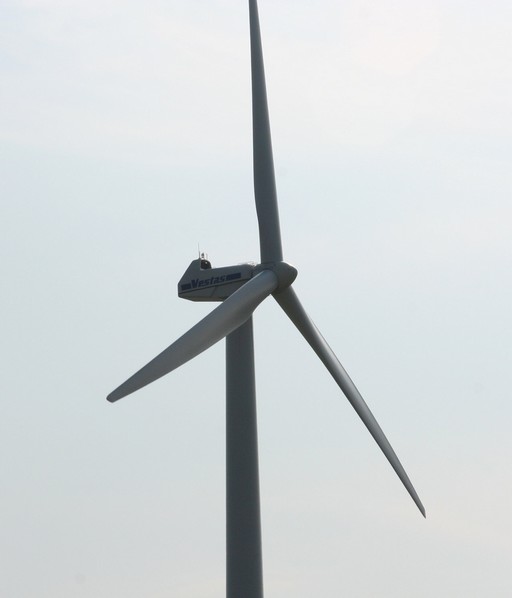

Turbine 1958
Source: Alien Technologie - License: All right reserved
Picture reference: 1958

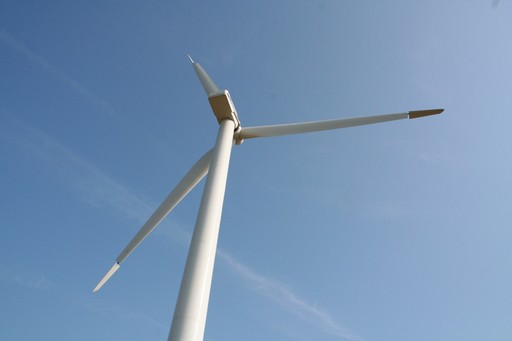

Turbine 1959
Source: Alien Technologie - License: All right reserved
Picture reference: 1959

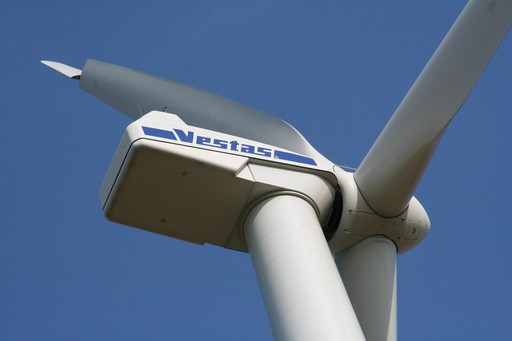

Turbine 1960
Source: Alien Technologie - License: All right reserved
Picture reference: 1960

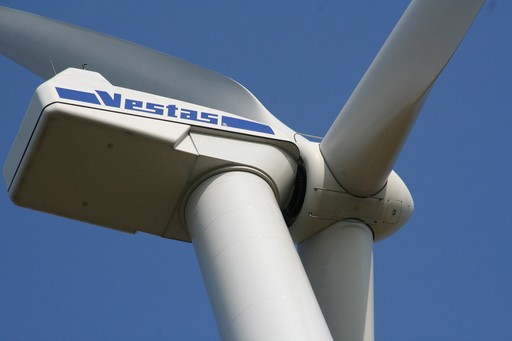

Turbine 1961
Source: Alien Technologie - License: All right reserved
Picture reference: 1961

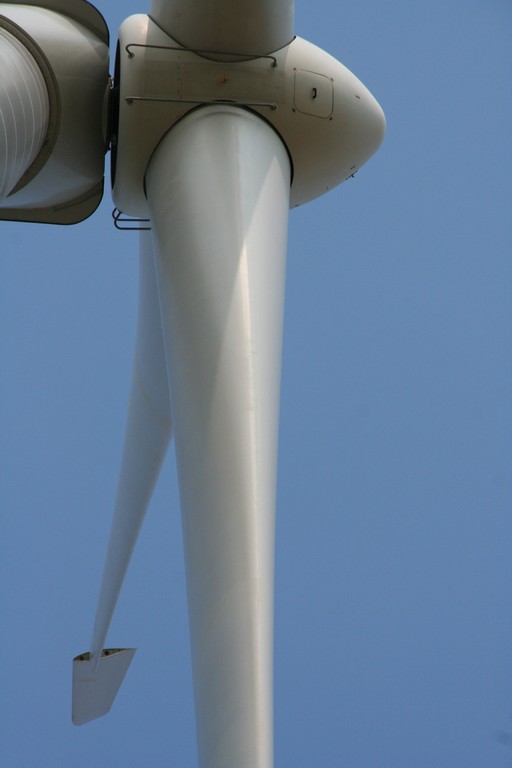

Turbine 1962
Source: Alien Technologie - License: All right reserved
Picture reference: 1962

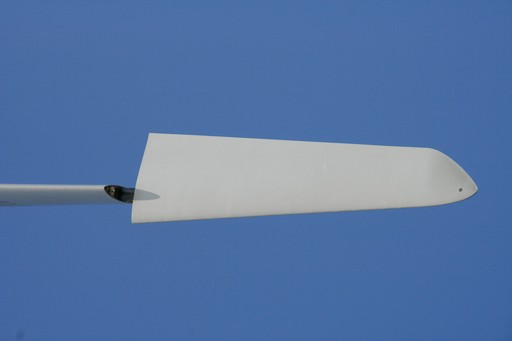

Turbine 1963
Source: Alien Technologie - License: All right reserved
Picture reference: 1963

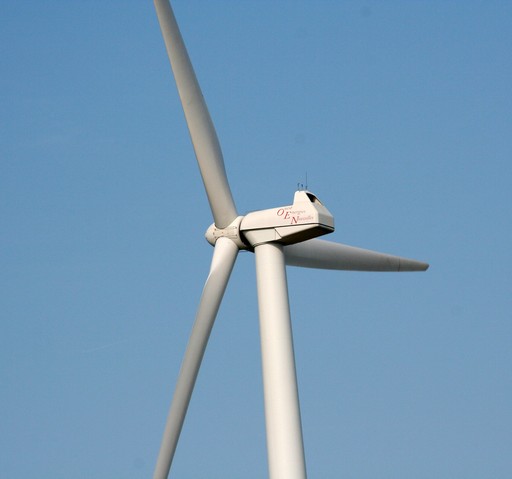

Turbine 1964
Source: Alien Technologie - License: All right reserved
Picture reference: 1964

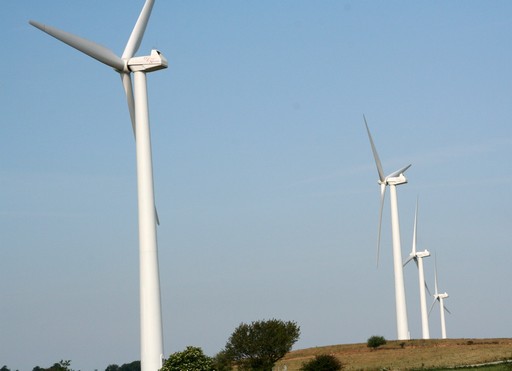

Turbine 1965
Source: Alien Technologie - License: All right reserved
Picture reference: 1965

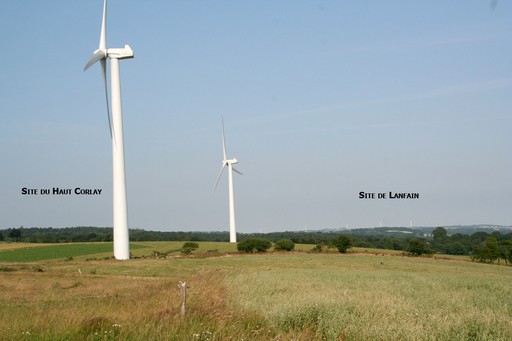

Turbine 1966
Source: Alien Technologie - License: All right reserved
Picture reference: 1966

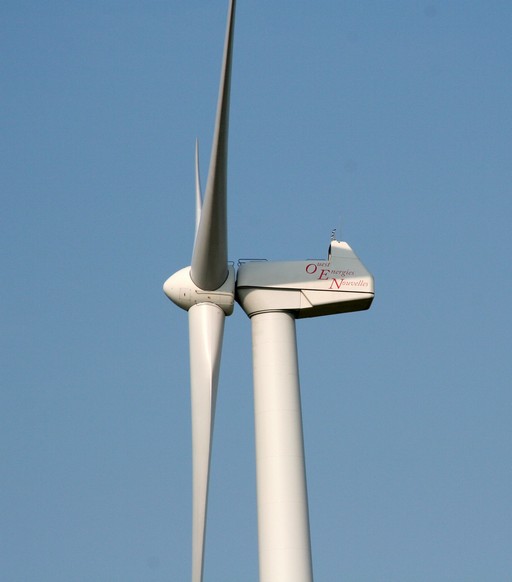

Turbine 1967
Source: Alien Technologie - License: All right reserved
Picture reference: 1967

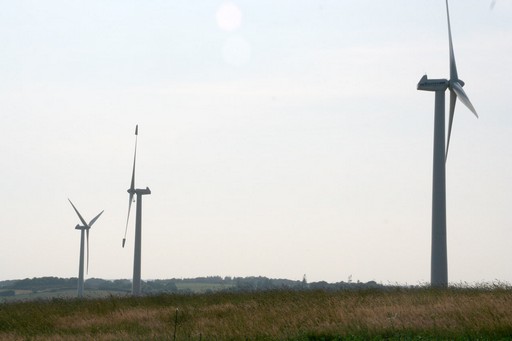

Turbine 1968
Source: Alien Technologie - License: All right reserved
Picture reference: 1968

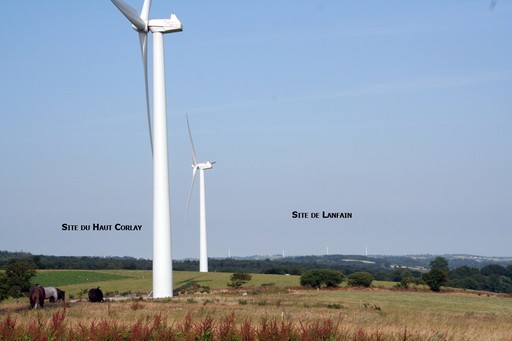

Turbine 1969
Source: Alien Technologie - License: All right reserved
Picture reference: 1969

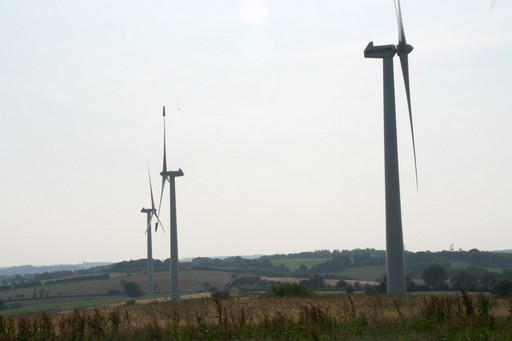

Turbine 1970
Source: Alien Technologie - License: All right reserved
Picture reference: 1970

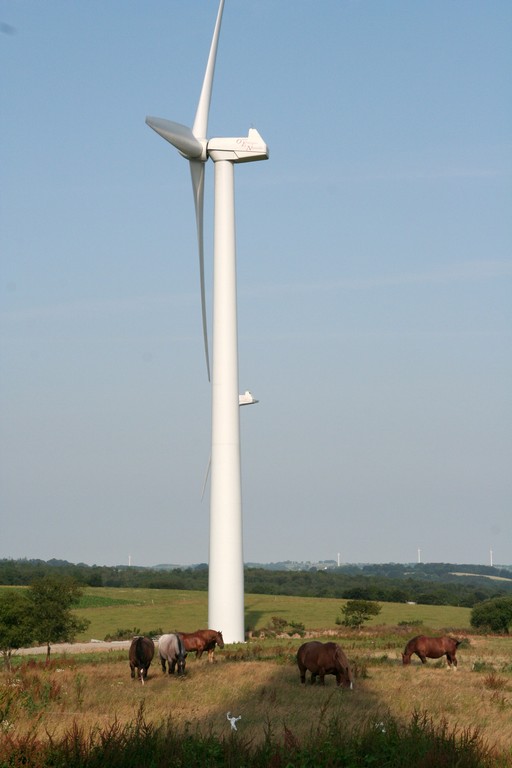

Turbine 1971
Source: Alien Technologie - License: All right reserved
Picture reference: 1971

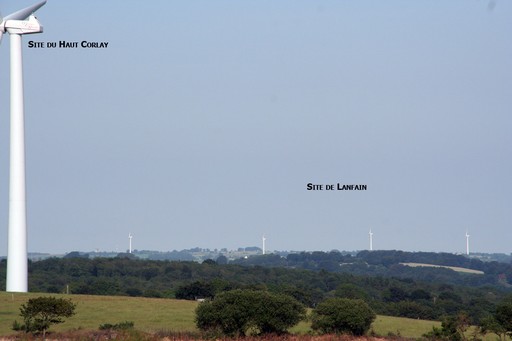

Turbine 1972
Source: Alien Technologie - License: All right reserved
Picture reference: 1972

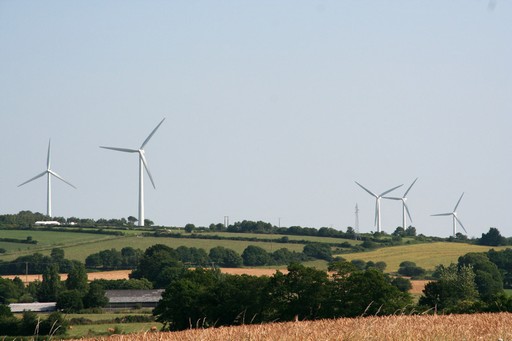

Turbine 1973
Source: Alien Technologie - License: All right reserved
Picture reference: 1973

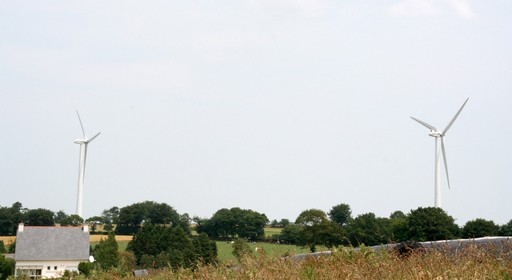

Turbine 1974
Source: Alien Technologie - License: All right reserved
Picture reference: 1974

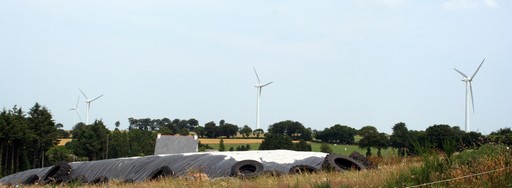

Turbine 1975
Source: Alien Technologie - License: All right reserved
Picture reference: 1975

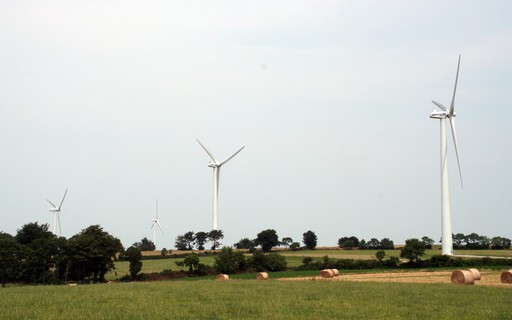

Turbine 1976
Source: Alien Technologie - License: All right reserved
Picture reference: 1976

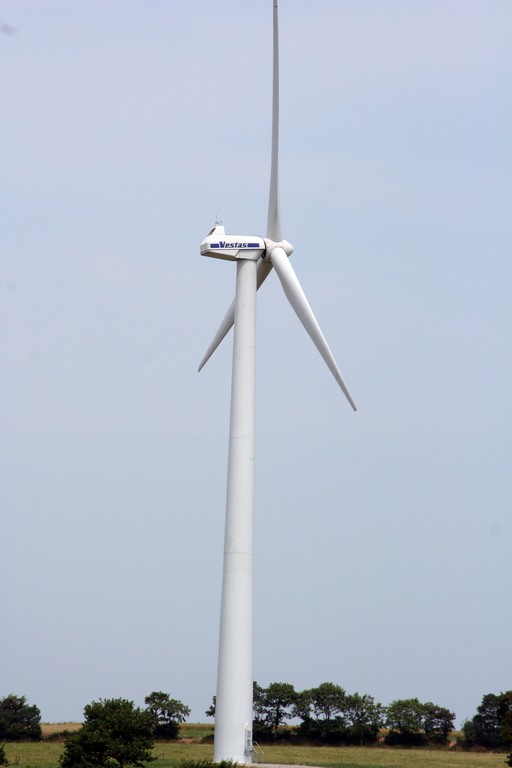

Turbine 1977
Source: Alien Technologie - License: All right reserved
Picture reference: 1977

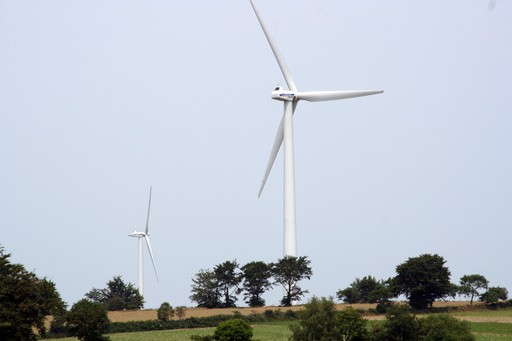

Turbine 1978
Source: Alien Technologie - License: All right reserved
Picture reference: 1978

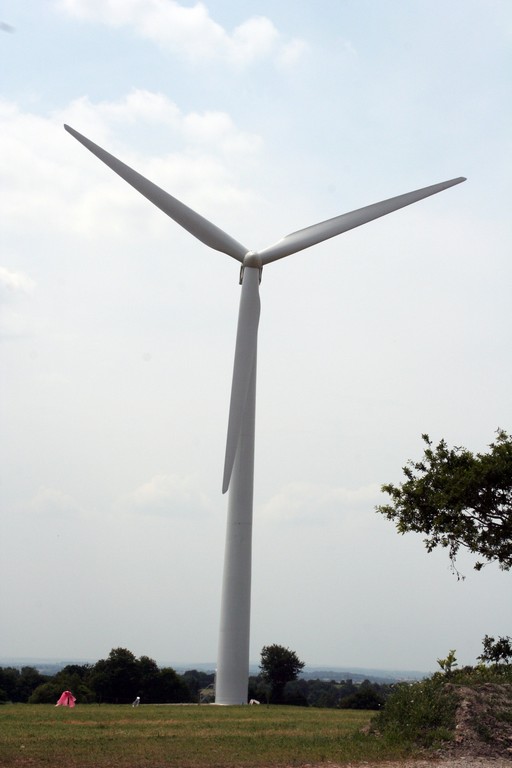

Turbine 1979
Source: Alien Technologie - License: All right reserved
Picture reference: 1979

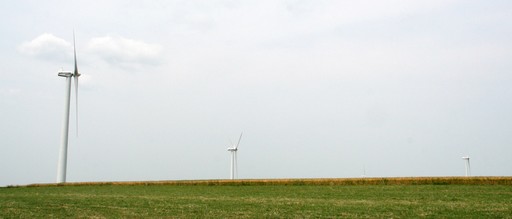

Turbine 1980
Source: Alien Technologie - License: All right reserved
Picture reference: 1980

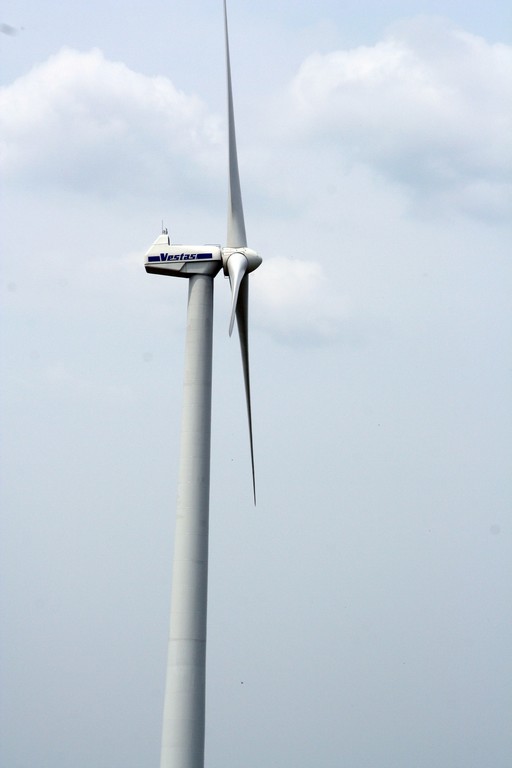

Turbine 1981
Source: Alien Technologie - License: All right reserved
Picture reference: 1981

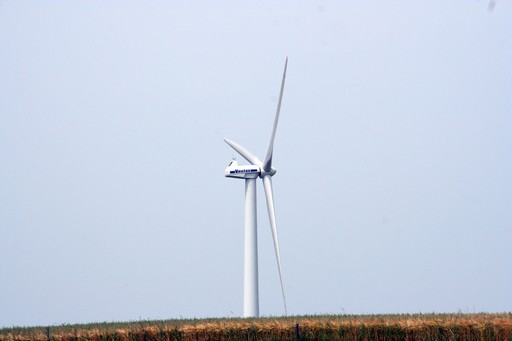

Turbine 1982
Source: Alien Technologie - License: All right reserved
Picture reference: 1982

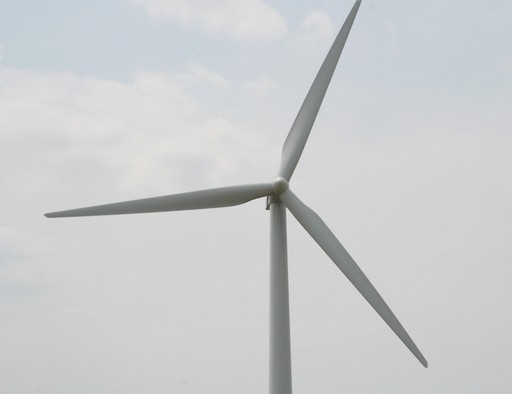

Turbine 1983
