General data

  • Manufacturer: Vestas (Danemark)
  • Model: V162/5.6MW
  • Rated power: 5,600 kW
  • Rotor diameter: 162 m
  • No more available
  • Wind class: IEC S
  • Offshore model: no
  • Swept area: 20,612 m²
  • Specific area: 3.69 m²/kW
  • Number of blades: 3
  • Power control: Pitch

Rotor

  • Cut-in wind speed: 3 m/s
  • Rated wind speed: 12 m/s
  • Cut-off wind speed: 24 m/s

Gear box

  • Gear box: yes
  • Stages: 2

Generator

  • Number: 1

Tower

  • Minimum hub height: 119 m
  • Maximum hub height: 169 m

Power curve




Wind farms in the database


Pictures

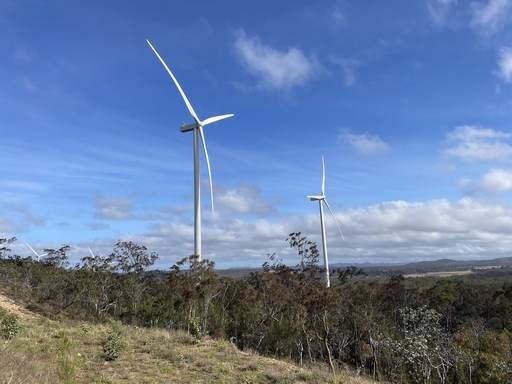

Turbine 15469
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 15469 - Date: 2023
Turbine 15470
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 15470 - Date: 2023

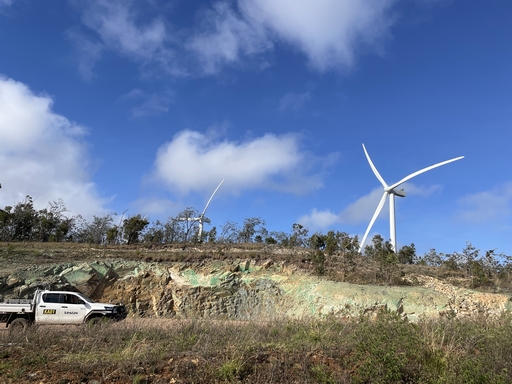

Turbine 15471
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 15471 - Date: 2023

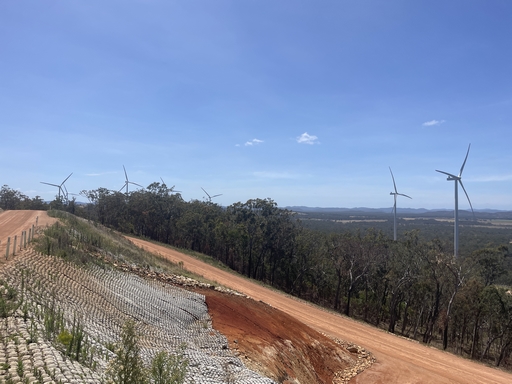

Turbine 15472
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 15472 - Date: 2023

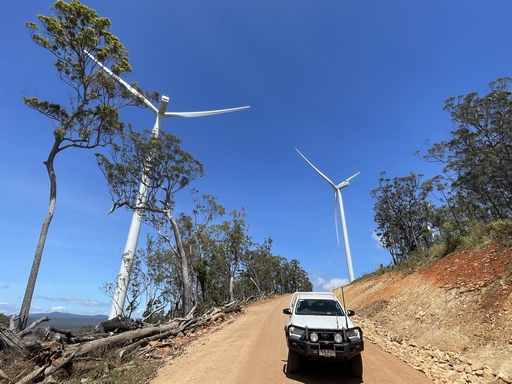

Turbine 15473
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 15473 - Date: 2023

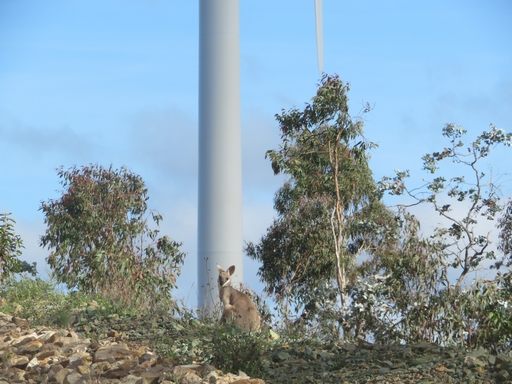

Turbine 15474
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 15474 - Date: 2023

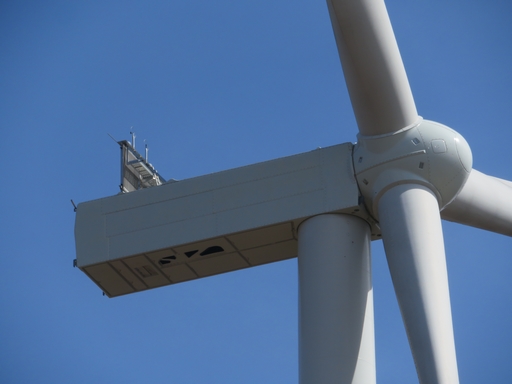

Turbine 15475
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 15475 - Date: 2023
Turbine 15634
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 15634 - Date: 2024
Turbine 15635
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 15635 - Date: 2024

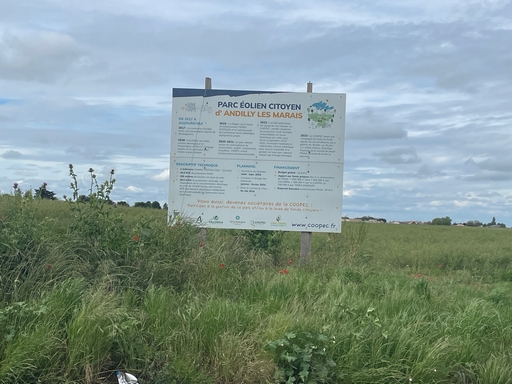

Turbine 15636
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 15636 - Date: 2024

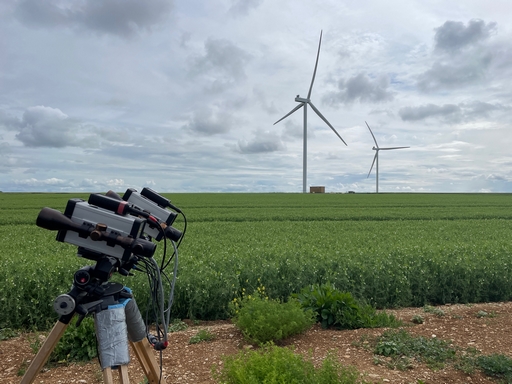

Turbine 15637
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 15637 - Date: 2024

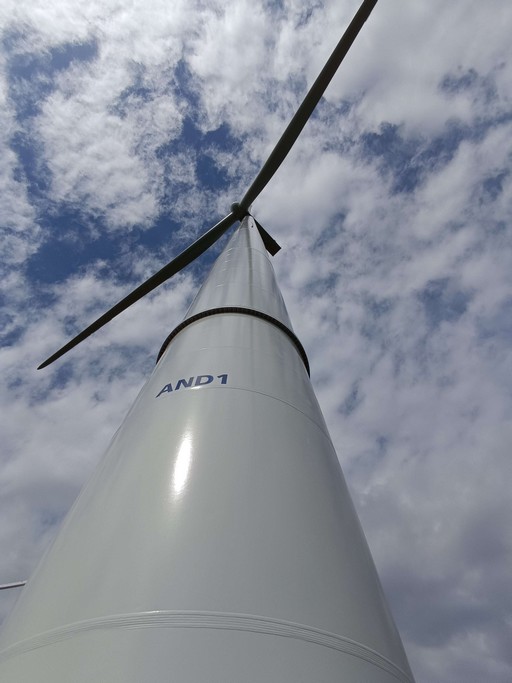

Turbine 16041
Author: Soan Goichon - License: All right reserved
Picture reference: 16041 - Date: 2024

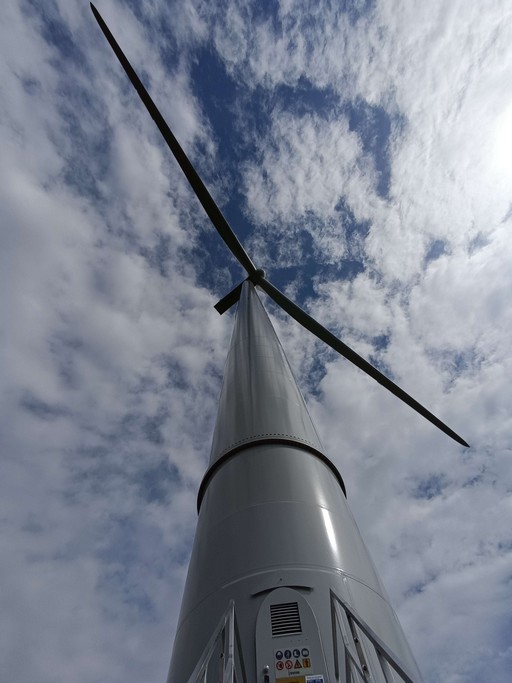

Turbine 16042
Author: Soan Goichon - License: All right reserved
Picture reference: 16042 - Date: 2024

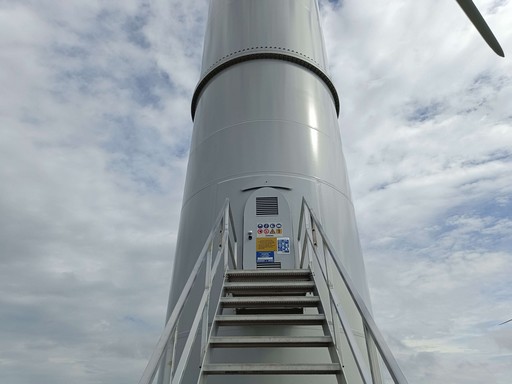

Turbine 16043
Author: Soan Goichon - License: All right reserved
Picture reference: 16043 - Date: 2024

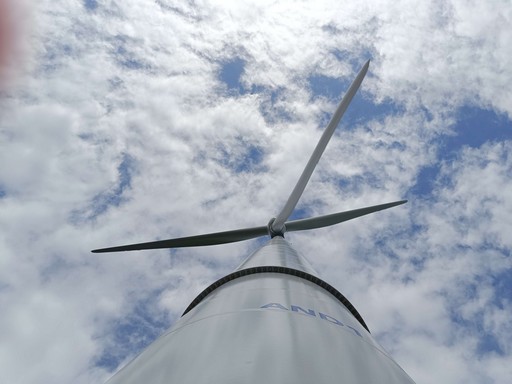

Turbine 16044
Author: Soan Goichon - License: All right reserved
Picture reference: 16044 - Date: 2024

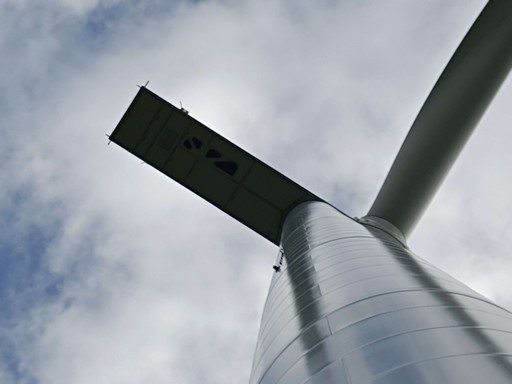

Turbine 16045
Author: Soan Goichon - License: All right reserved
Picture reference: 16045 - Date: 2024

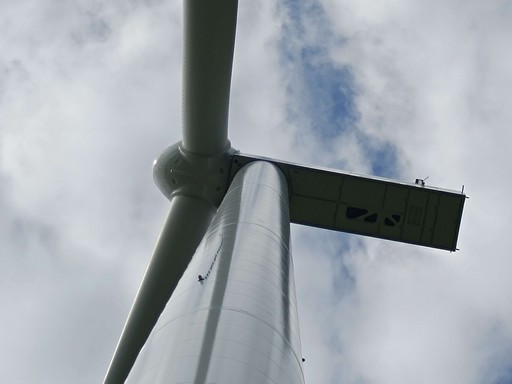

Turbine 16046
Author: Soan Goichon - License: All right reserved
Picture reference: 16046 - Date: 2024

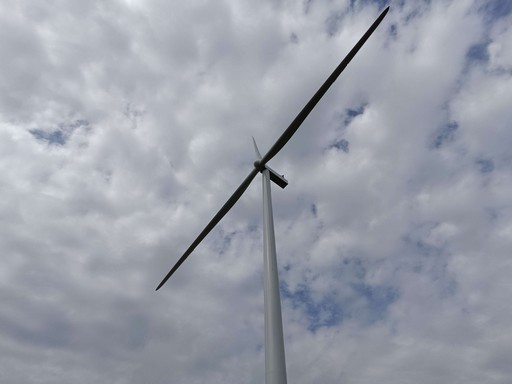

Turbine 16047
Author: Soan Goichon - License: All right reserved
Picture reference: 16047 - Date: 2024

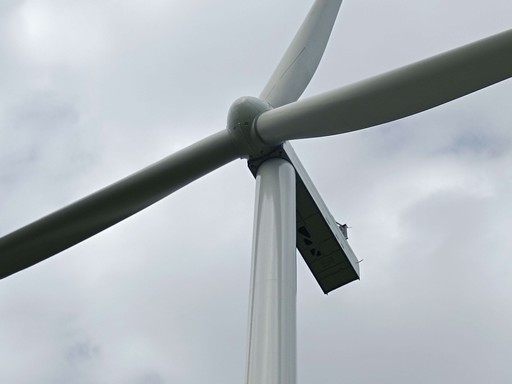

Turbine 16048
Author: Soan Goichon - License: All right reserved
Picture reference: 16048 - Date: 2024

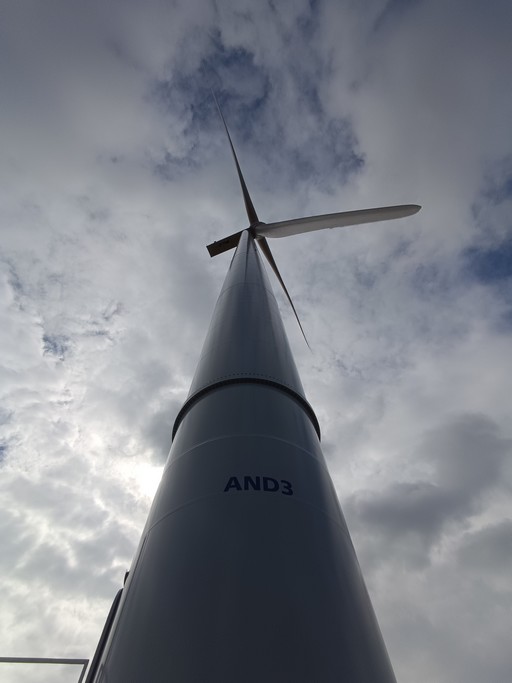

Turbine 16049
Author: Soan Goichon - License: All right reserved
Picture reference: 16049 - Date: 2024


Update for this sheet: 8 November 2024
