General data

  • Manufacturer: Jeumont (France)
  • Model: J48/750
  • Rated power: 750 kW
  • Rotor diameter: 48 m
  • No more available
  • Offshore model: no
  • Swept area: 1,810 m²
  • Specific area: 2.42 m²/kW
  • Number of blades: 3
  • Power control: Stall
  • Commissioning: 1999

Weights

  • Nacelle: 30 tons
  • Tower: 40 tons
  • Rotor + hub: 9 tons
  • Total: 79 tons

Rotor

  • Maximum rotor speed: 26 rd/min
  • Cut-in wind speed: 3 m/s
  • Rated wind speed: 13,5 m/s
  • Cut-off wind speed: 25 m/s

Gear box

  • Gear box: no
  • Stages: -
  • Gear ratio: -
  • Manufacturer: -

Generator

  • Type: SYNC PM
  • Maximum speed: 26 rounds/minute
  • Voltage: 690 V

Tower

  • Hub height: 46 m

J48/750 - Jeumont - 750 kW
Michaël Pierrot - The Wind Power

Wind farms in the database


Pictures

Turbine 55
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 55
Turbine 56
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 56
Turbine 57
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 57
Turbine 860
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 860
Turbine 861
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 861
Turbine 862
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 862
Turbine 863
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 863
Turbine 864
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 864
Turbine 865
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 865
Turbine 866
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 866
Turbine 867
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 867
Turbine 868
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 868
Turbine 869
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 869
Turbine 870
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 870
Turbine 871
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 871
Turbine 872
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 872
Turbine 873
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 873
Turbine 874
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 874
Turbine 875
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 875
Turbine 876
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 876
Turbine 877
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 877
Turbine 878
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 878
Turbine 879
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 879
Turbine 880
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 880
Turbine 881
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 881
Turbine 882
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 882
Turbine 883
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 883
Turbine 884
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 884
Turbine 885
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 885
Turbine 886
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 886
Turbine 887
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 887
Turbine 888
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 888
Turbine 889
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 889
Turbine 890
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 890

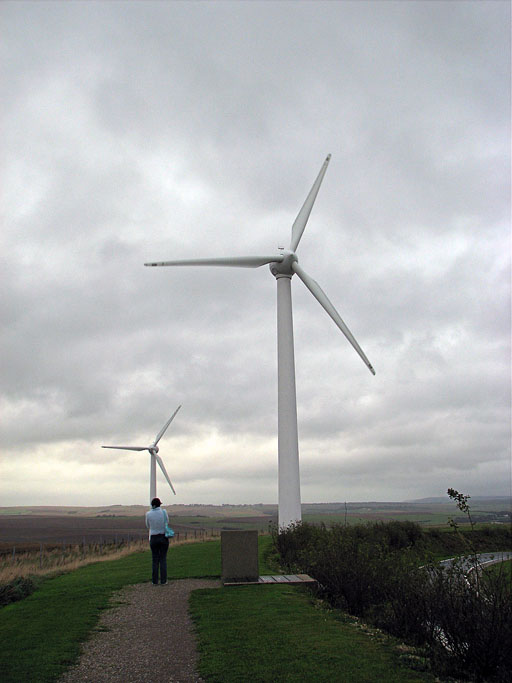

Turbine 1883
Source: Tigidi - License: All right reserved
Picture reference: 1883

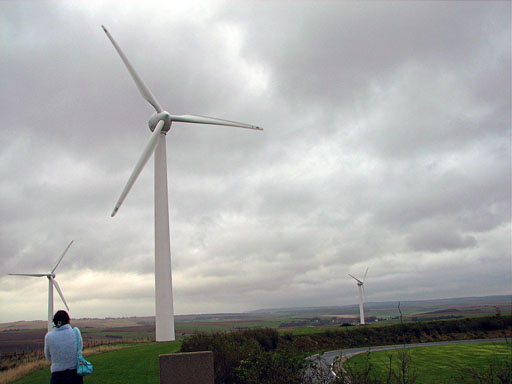

Turbine 1884
Source: Tigidi - License: All right reserved
Picture reference: 1884

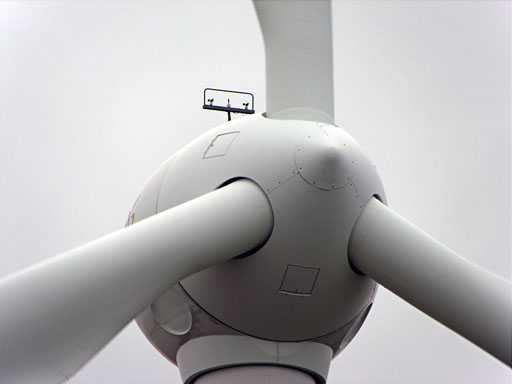

Turbine 1885
Source: Tigidi - License: All right reserved
Picture reference: 1885

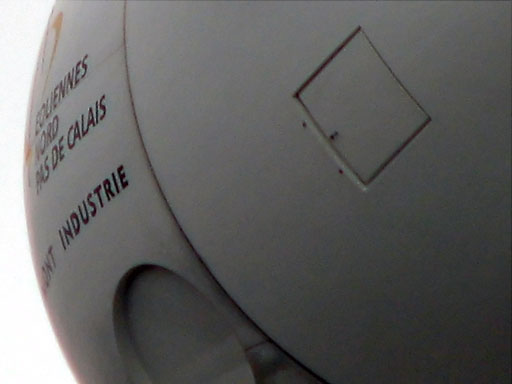

Turbine 1886
Source: Tigidi - License: All right reserved
Picture reference: 1886

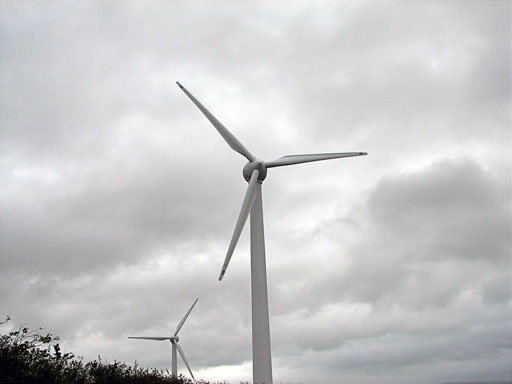

Turbine 1887
Source: Tigidi - License: All right reserved
Picture reference: 1887

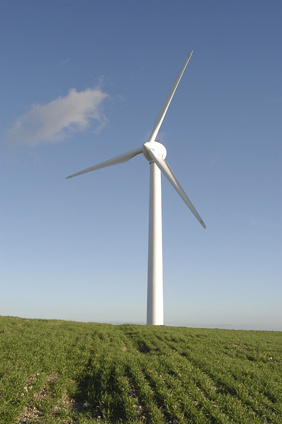

Turbine 2380
Author: Fr. Watbled - Source: Photographe à Paris - License: All right reserved
Picture reference: 2380

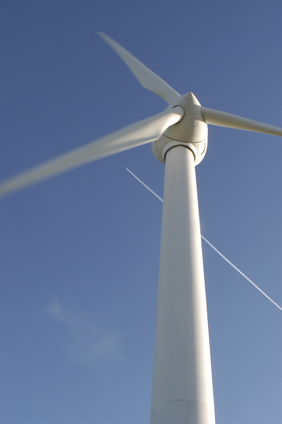

Turbine 2381
Author: Fr. Watbled - Source: Photographe à Paris - License: All right reserved
Picture reference: 2381

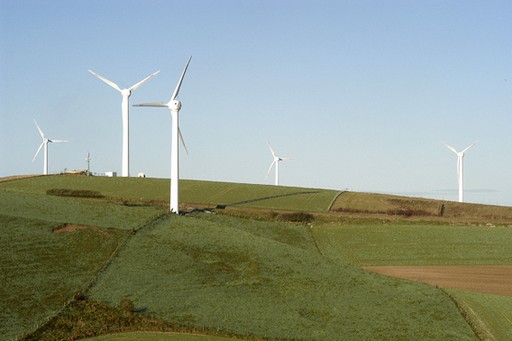

Turbine 2382
Author: Fr. Watbled - Source: Photographe à Paris - License: All right reserved
Picture reference: 2382
Turbine 3592
Author: Benoit D. - License: All right reserved
Picture reference: 3592
Turbine 3593
Author: Benoit D. - License: All right reserved
Picture reference: 3593
Turbine 3594
Author: Benoit D. - License: All right reserved
Picture reference: 3594
Turbine 3595
Author: Benoit D. - License: All right reserved
Picture reference: 3595
Turbine 3596
Author: Benoit D. - License: All right reserved
Picture reference: 3596

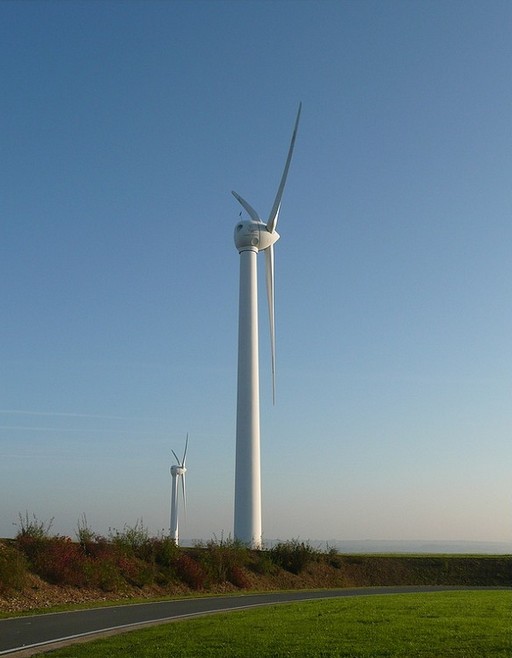

Turbine 4239
Author: Wim - License: All right reserved
Picture reference: 4239

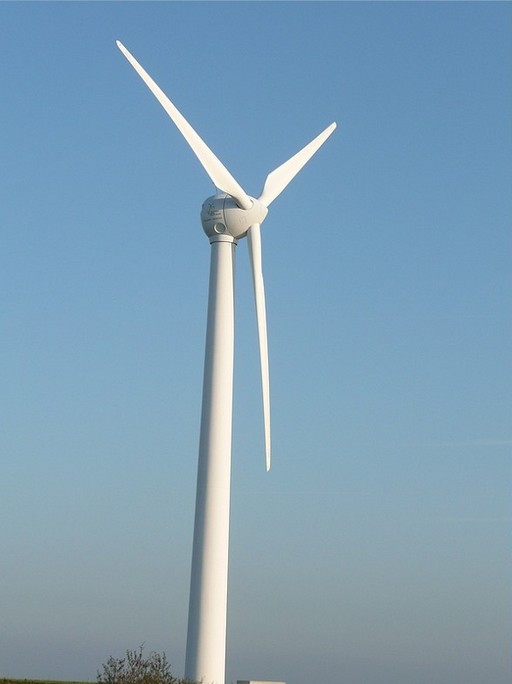

Turbine 4240
Author: Wim - License: All right reserved
Picture reference: 4240

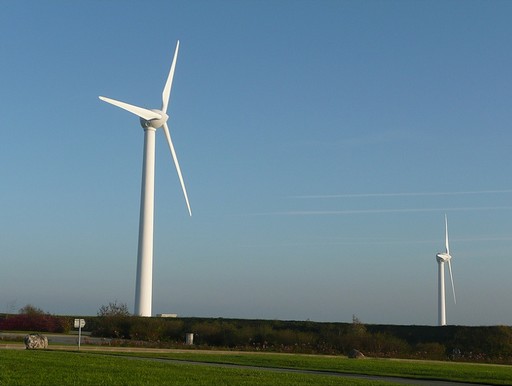

Turbine 4241
Author: Wim - License: All right reserved
Picture reference: 4241

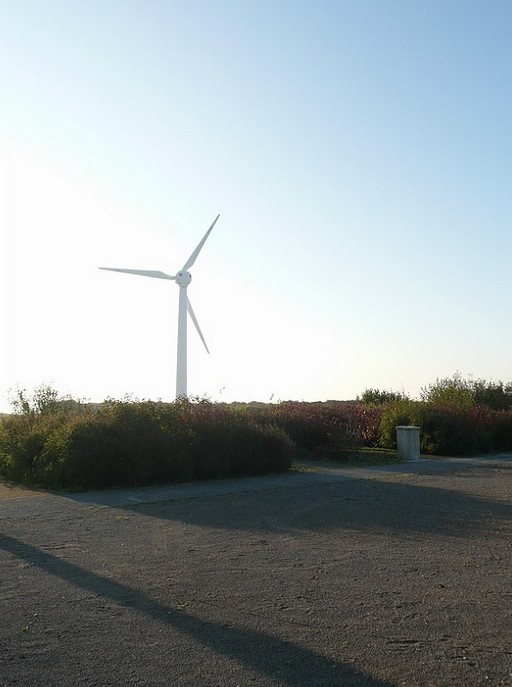

Turbine 4242
Author: Wim - License: All right reserved
Picture reference: 4242

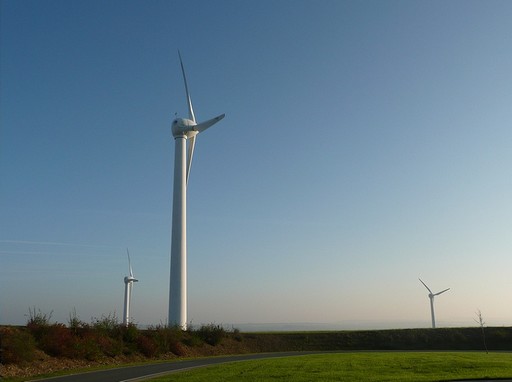

Turbine 4243
Author: Wim - License: All right reserved
Picture reference: 4243

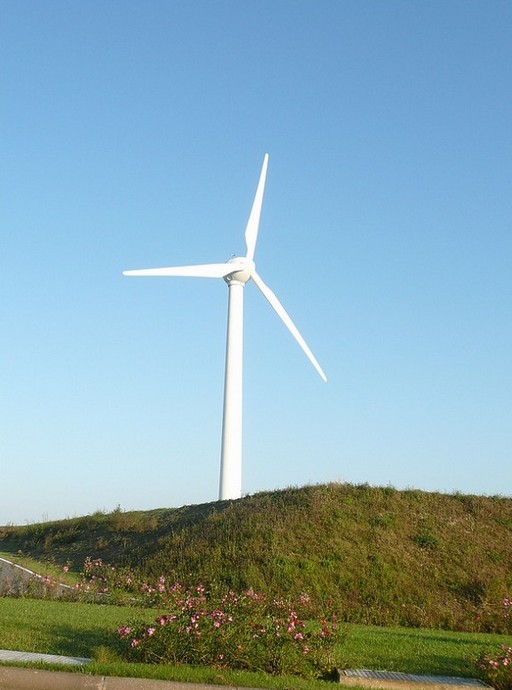

Turbine 4244
Author: Wim - License: All right reserved
Picture reference: 4244

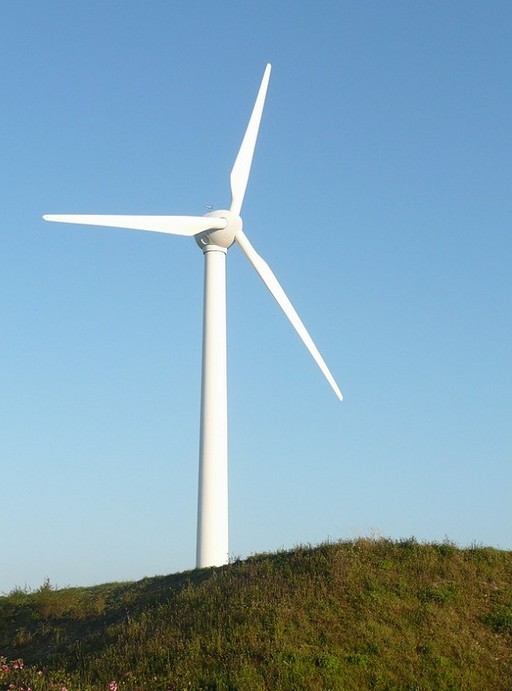

Turbine 4245
Author: Wim - License: All right reserved
Picture reference: 4245

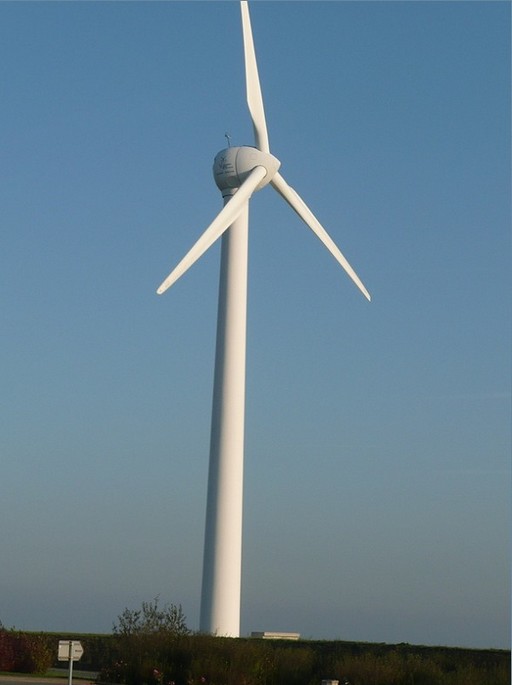

Turbine 4246
Author: Wim - License: All right reserved
Picture reference: 4246

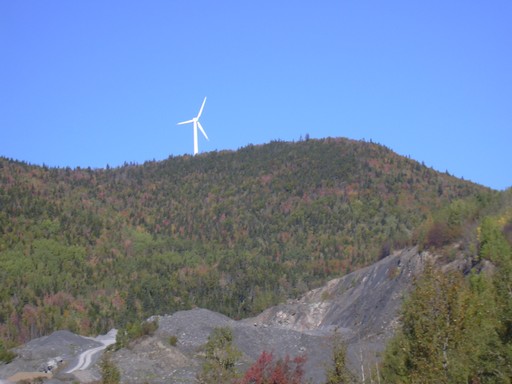

Turbine 8439
Author: Yassine Laaraj - License: All right reserved
Picture reference: 8439

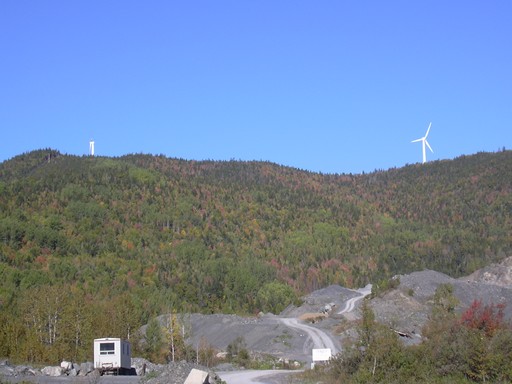

Turbine 8440
Author: Yassine Laaraj - License: All right reserved
Picture reference: 8440

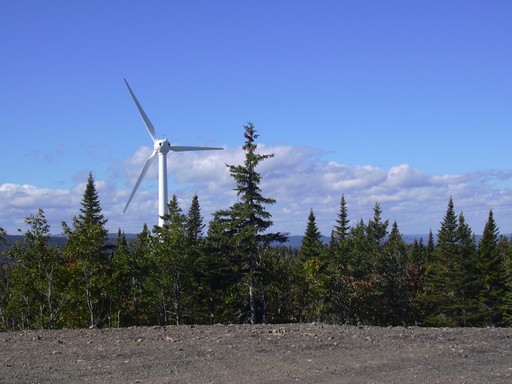

Turbine 8441
Author: Yassine Laaraj - License: All right reserved
Picture reference: 8441

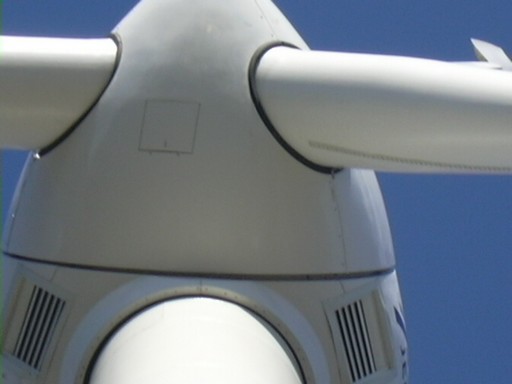

Turbine 8442
Author: Yassine Laaraj - License: All right reserved
Picture reference: 8442

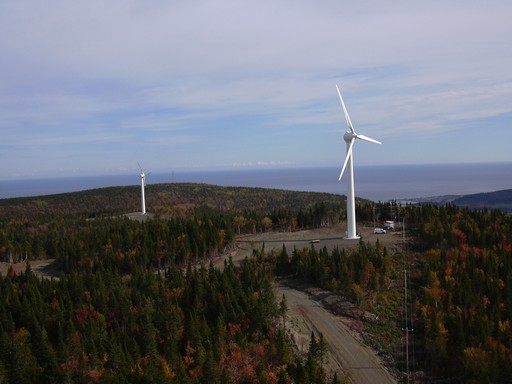

Turbine 8443
