General data

  • Manufacturer: Nordex (Allemagne)
  • Model: N50/800
  • Rated power: 800 kW
  • Rotor diameter: 50 m
  • No more available
  • Offshore model: no
  • Swept area: 1,964 m²
  • Specific area: 2.46 m²/kW
  • Number of blades: 3
  • Power control: Stall
  • Commissioning: 1999

Weights

  • Nacelle: 23,4 tons
  • Tower: 89 tons
  • Rotor + hub: 15,7 tons
  • Total: 128,1 tons

Rotor

  • Minimum rotor speed: 17,2 rd/min
  • Maximum rotor speed: 23,6 rd/min
  • Cut-in wind speed: 3 m/s
  • Rated wind speed: 15 m/s
  • Cut-off wind speed: 25 m/s

Gear box

  • Gear box: yes
  • Stages: 3
  • Gear ratio: 42,3

Generator

  • Type: ASYNC DF
  • Number: 1
  • Maximum speed: 1510 rounds/minute
  • Voltage: 690 V

Tower

  • Minimum hub height: 46 m
  • Maximum hub height: 70 m

N50/800 - Nordex - 800 kW
Michaël Pierrot - The Wind Power

Power curve




Wind farms in the database


Full list (49 wind farms)



Pictures

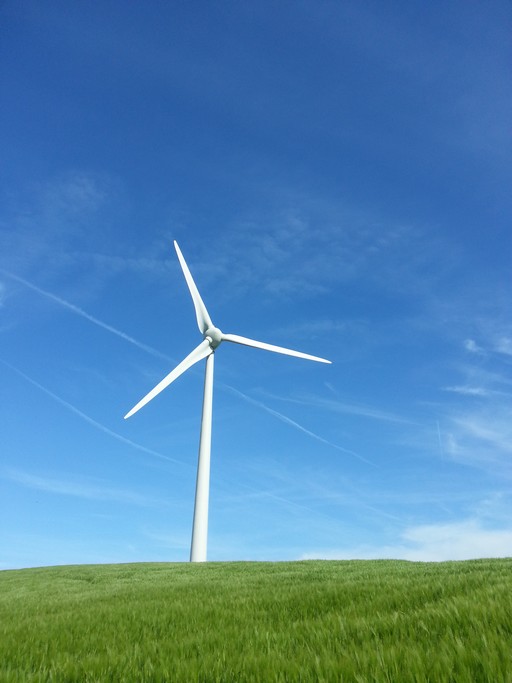

Turbine 14
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 14 - Date: 2013

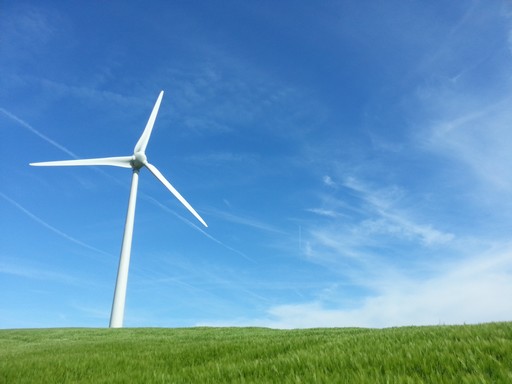

Turbine 18
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 18 - Date: 2013

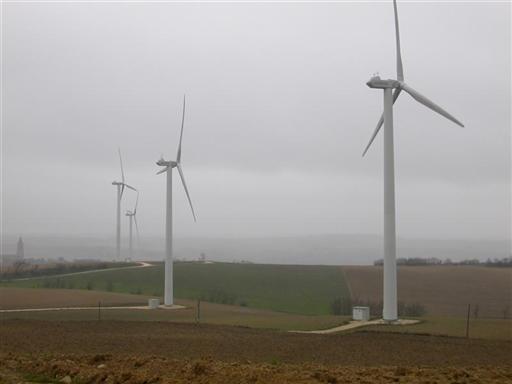

Turbine 141
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 141

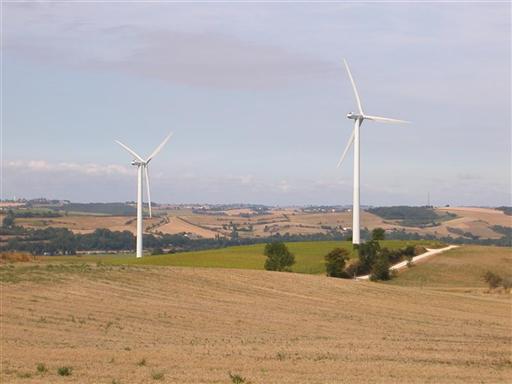

Turbine 142
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 142

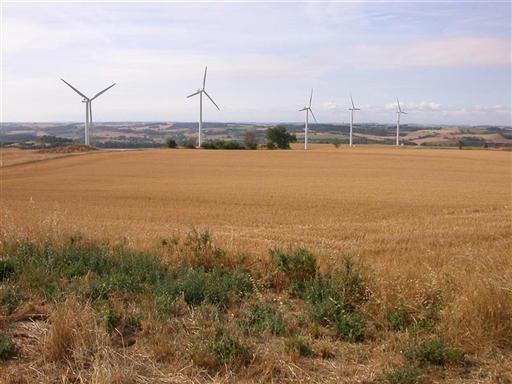

Turbine 143
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 143

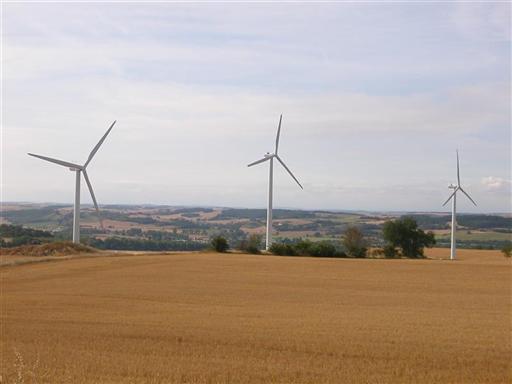

Turbine 144
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 144

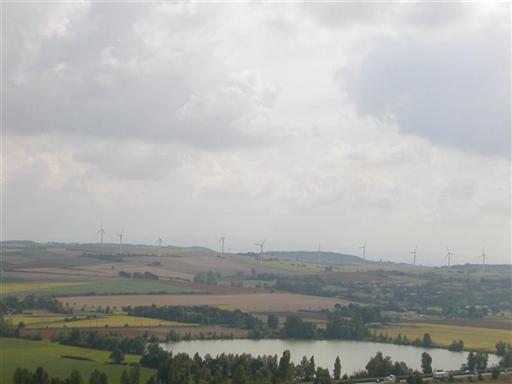

Turbine 145
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 145

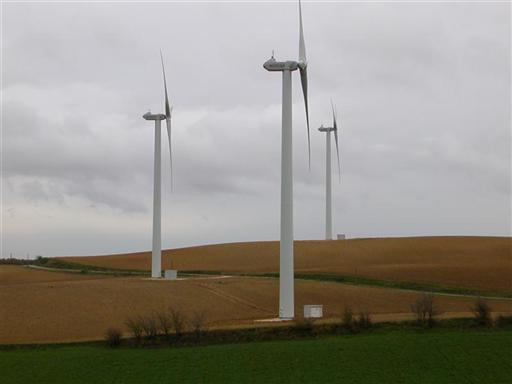

Turbine 146
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 146

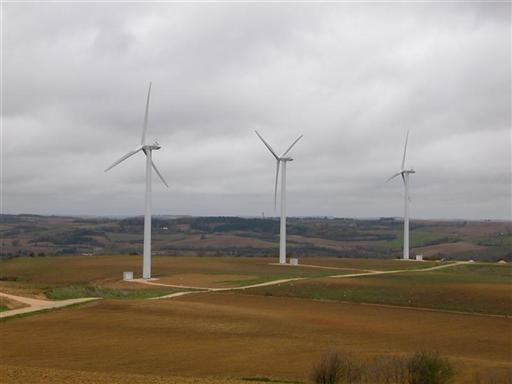

Turbine 147
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 147

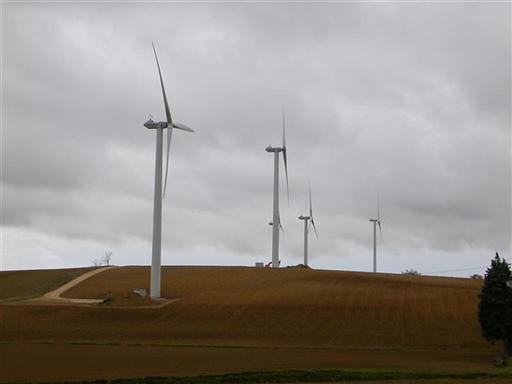

Turbine 148
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 148

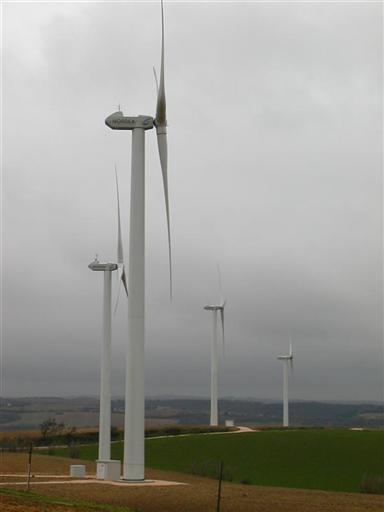

Turbine 149
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 149

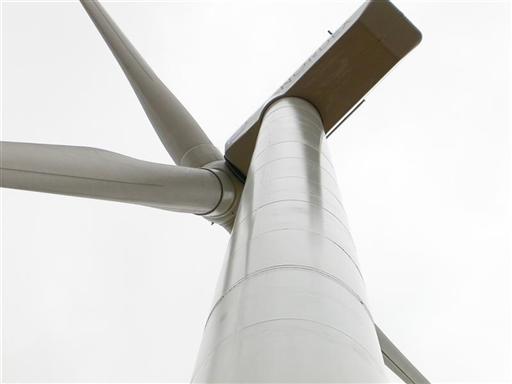

Turbine 150
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 150

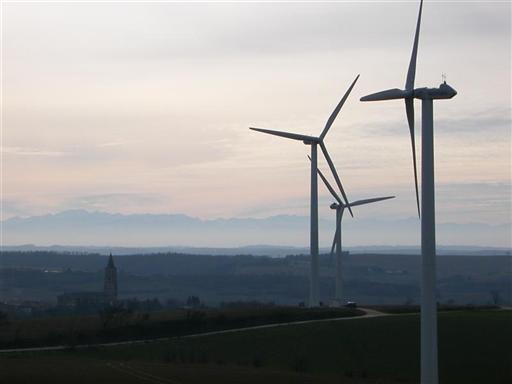

Turbine 151
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 151

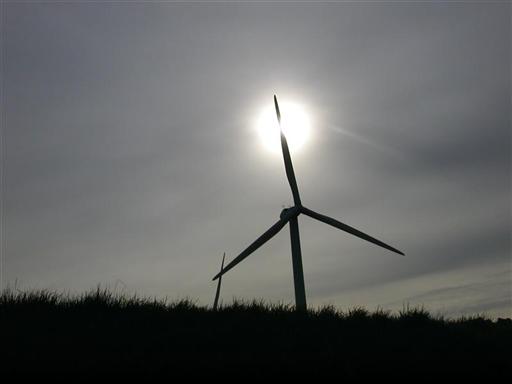

Turbine 152
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 152

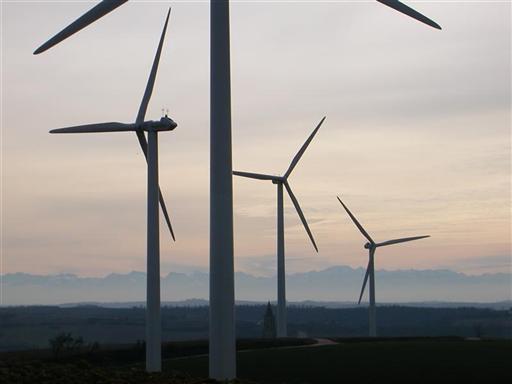

Turbine 153
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 153

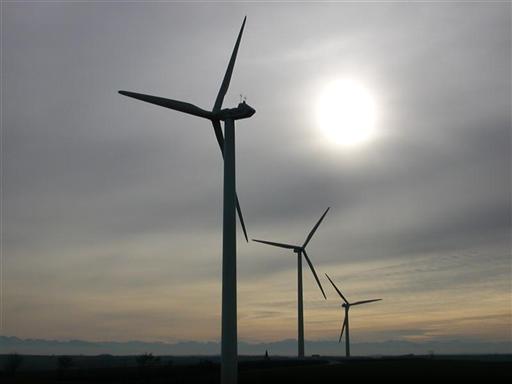

Turbine 154
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 154

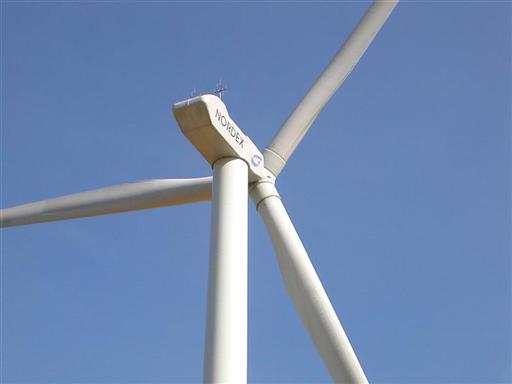

Turbine 155
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 155

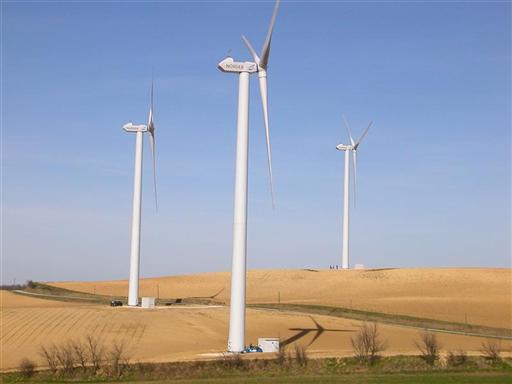

Turbine 156
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 156

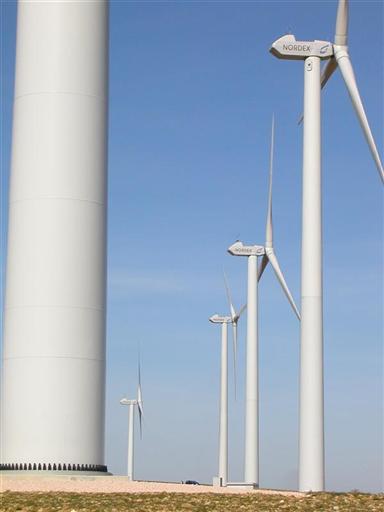

Turbine 157
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 157

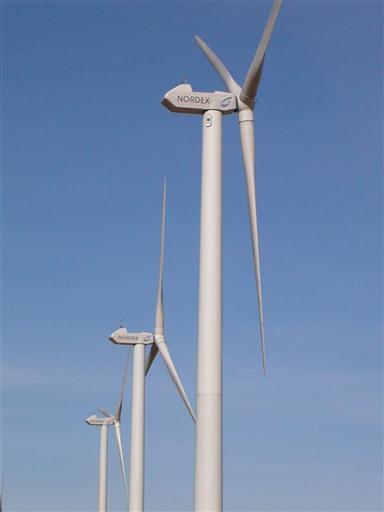

Turbine 158
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 158

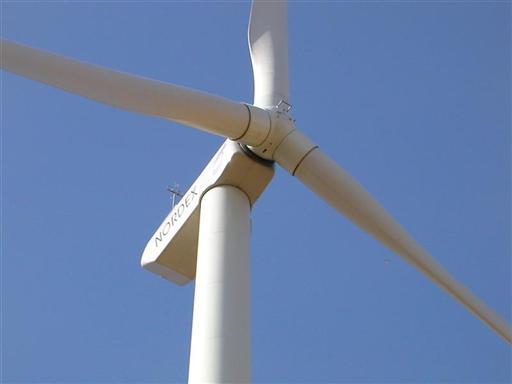

Turbine 159
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 159

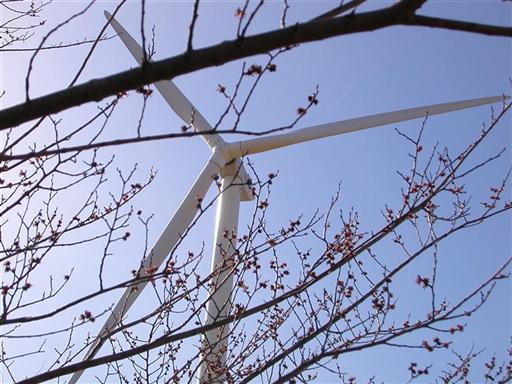

Turbine 160
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 160

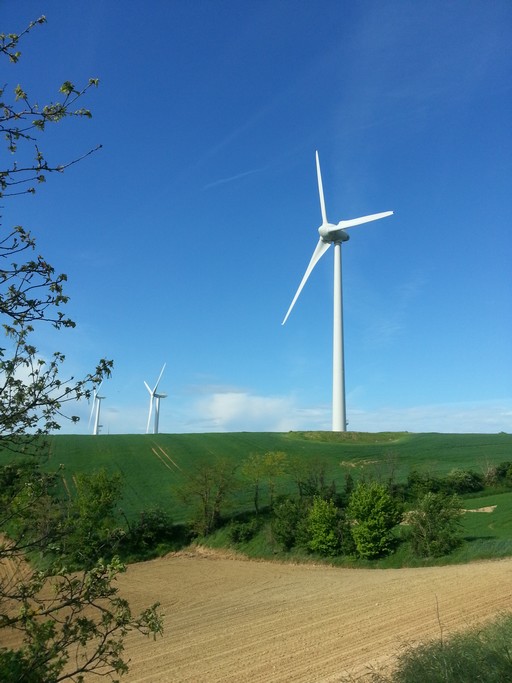

Turbine 200
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 200 - Date: 2013

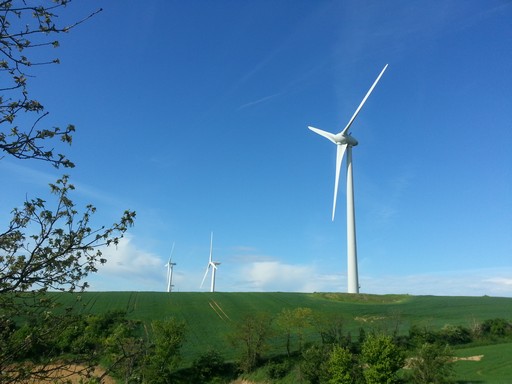

Turbine 201
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 201 - Date: 2013

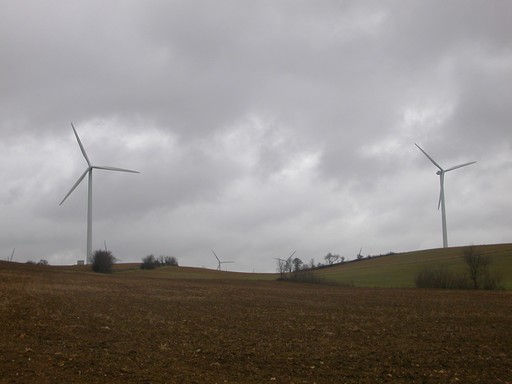

Turbine 228
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 228

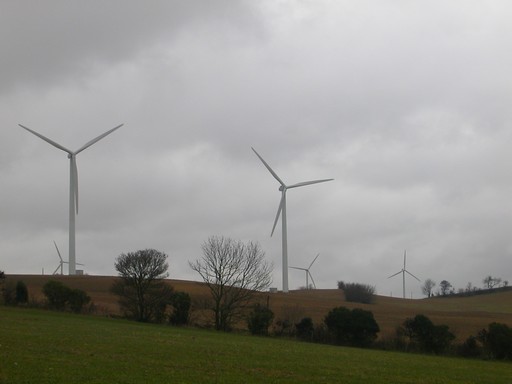

Turbine 229
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 229

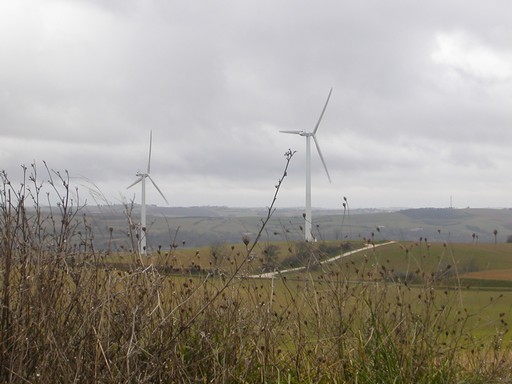

Turbine 230
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 230

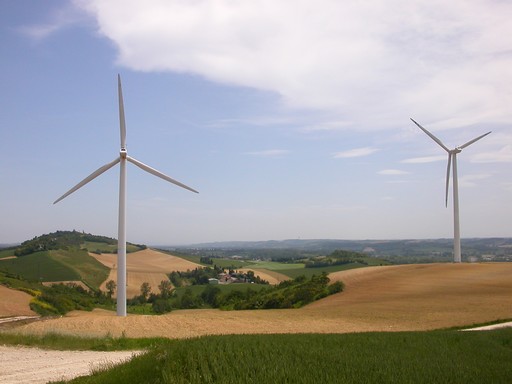

Turbine 704
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 704

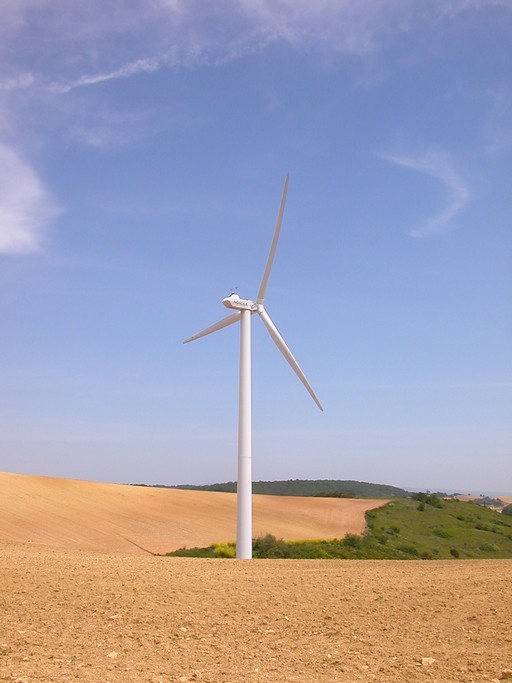

Turbine 705
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 705

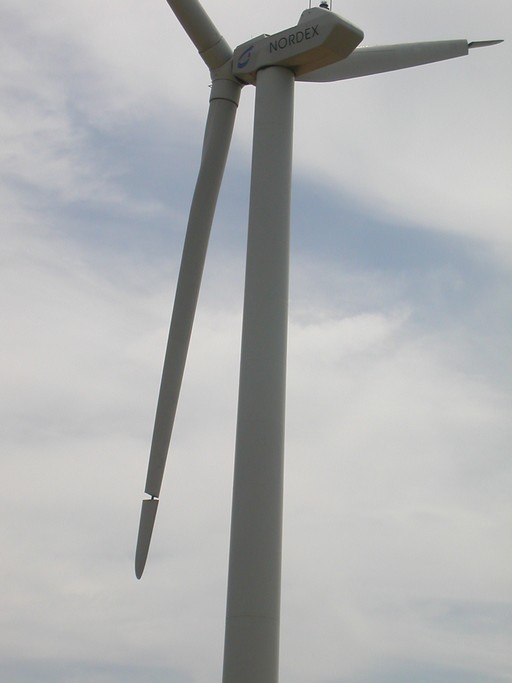

Turbine 706
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 706

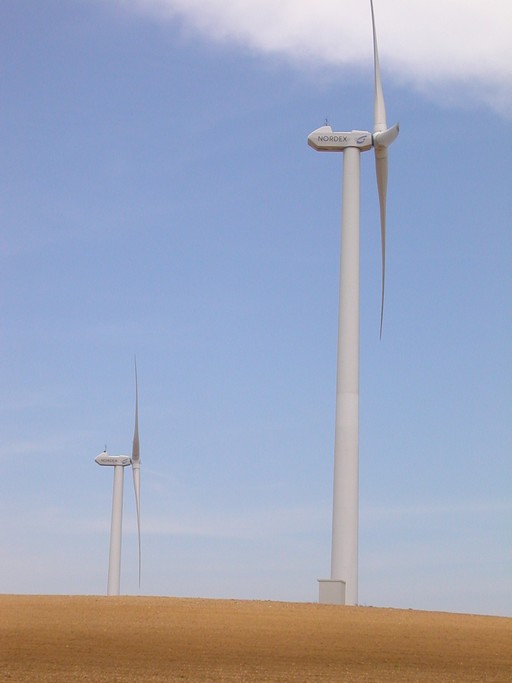

Turbine 707
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 707

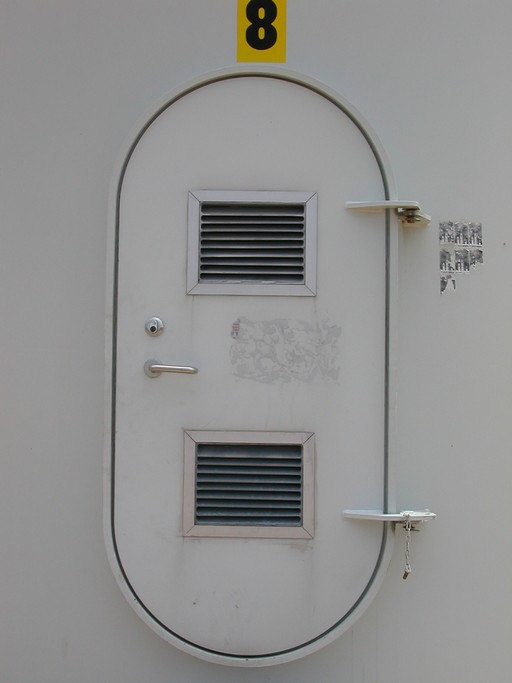

Turbine 708
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 708

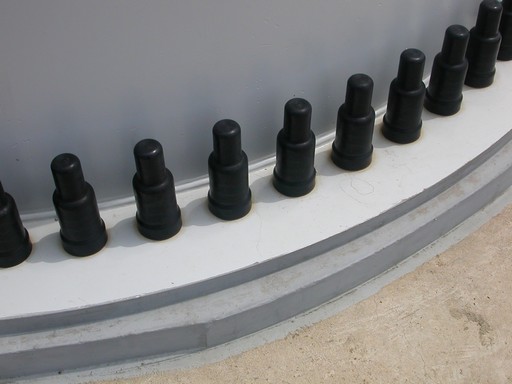

Turbine 709
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 709

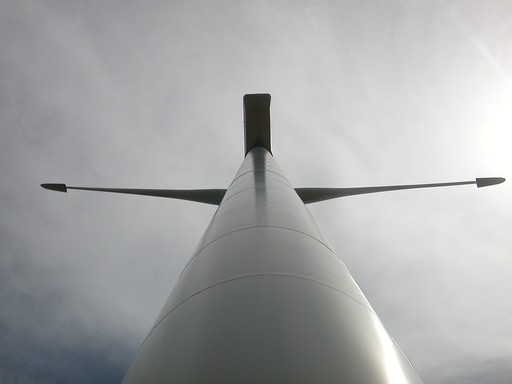

Turbine 710
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 710

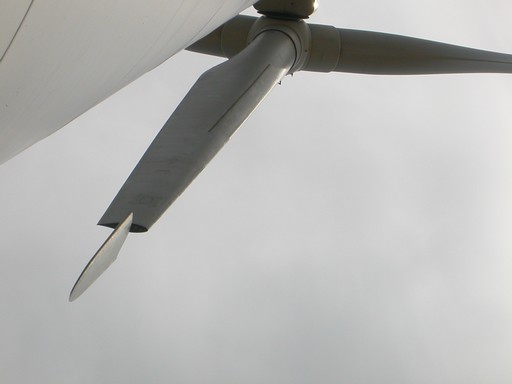

Turbine 711
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 711

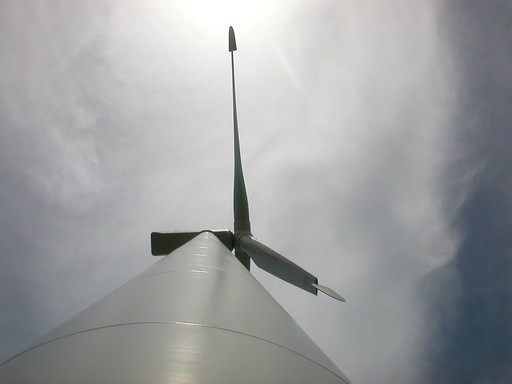

Turbine 712
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 712

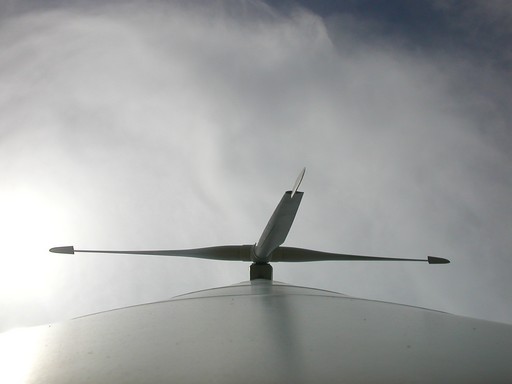

Turbine 713
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 713

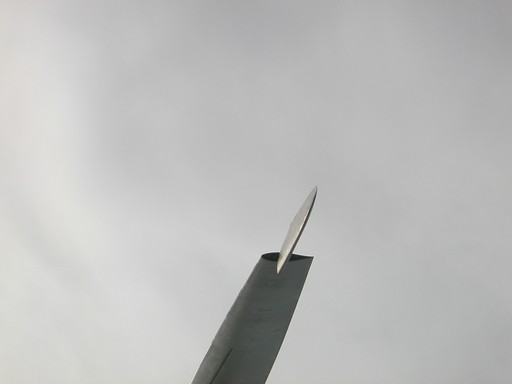

Turbine 714
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 714

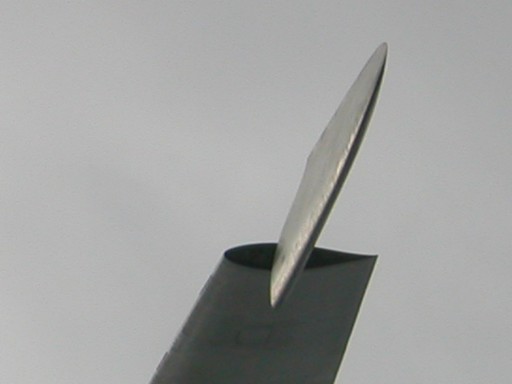

Turbine 715
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 715

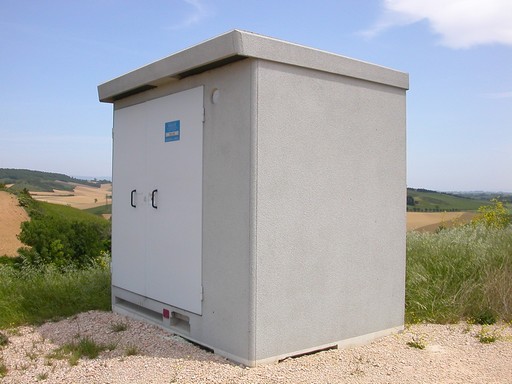

Turbine 716
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 716

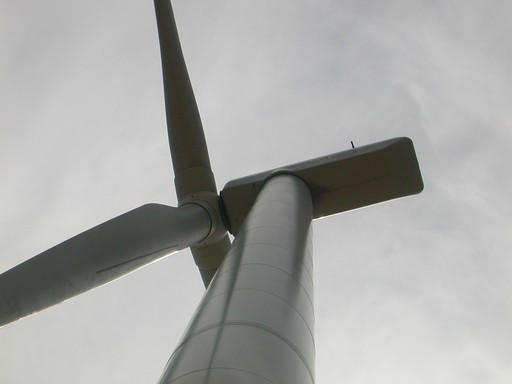

Turbine 717
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 717

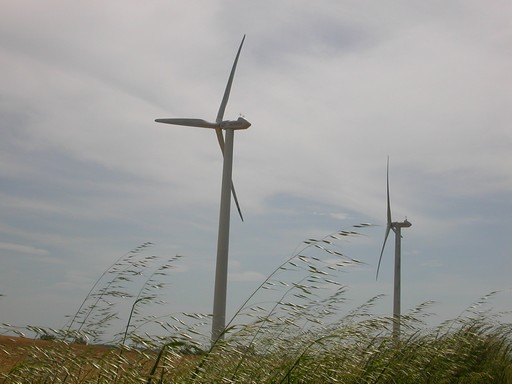

Turbine 718
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 718

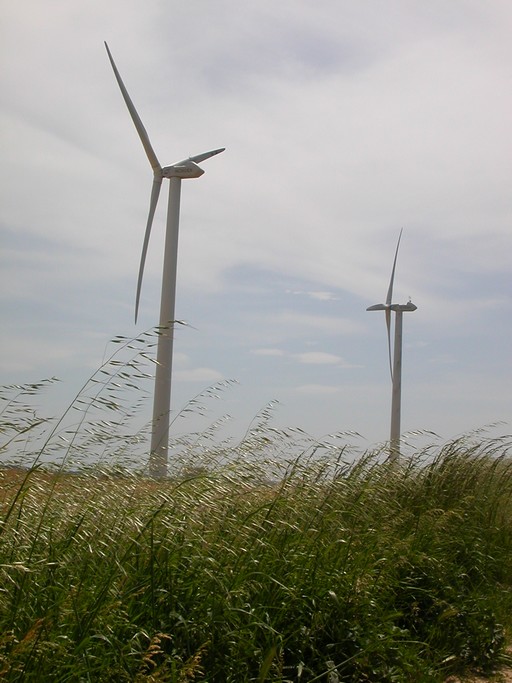

Turbine 719
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 719

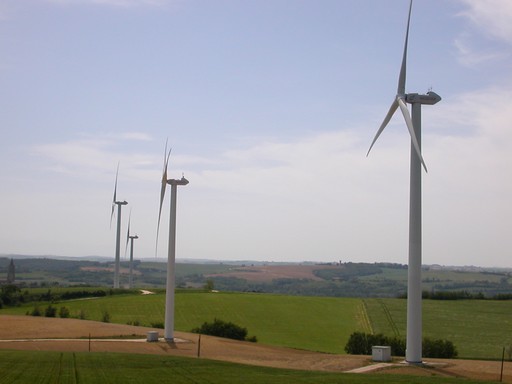

Turbine 720
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 720

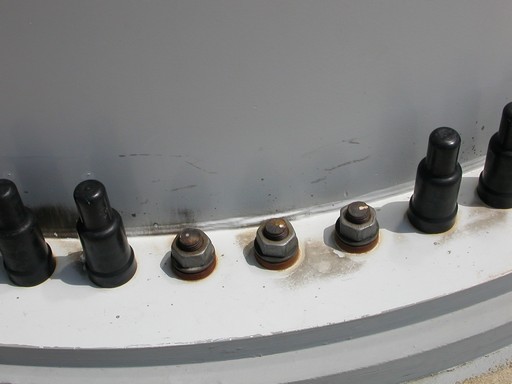

Turbine 721
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 721

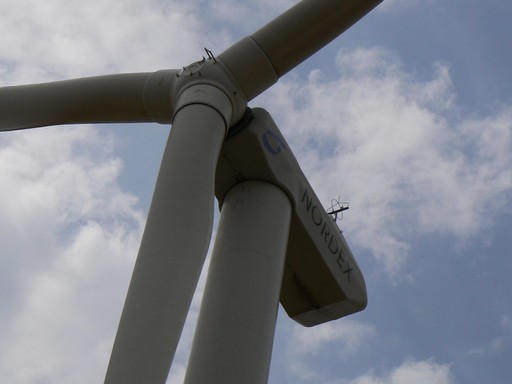

Turbine 1541
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1541

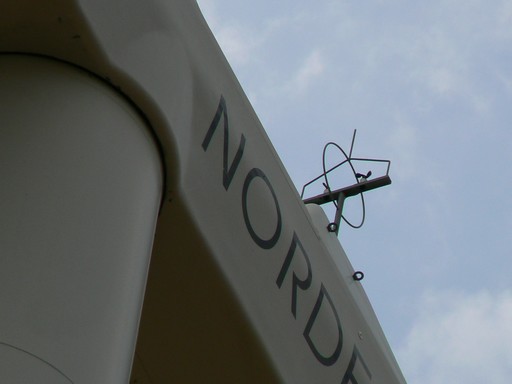

Turbine 1542
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1542

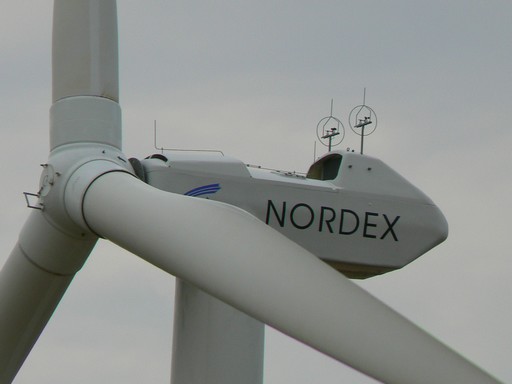

Turbine 1543
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1543

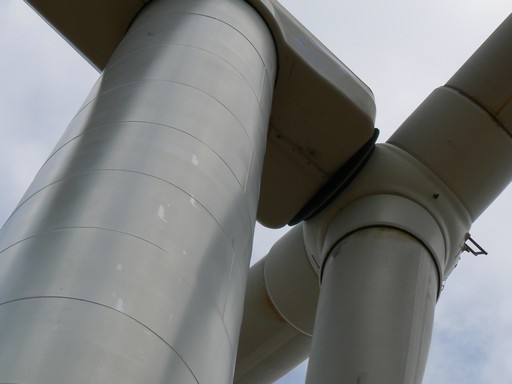

Turbine 1544
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1544

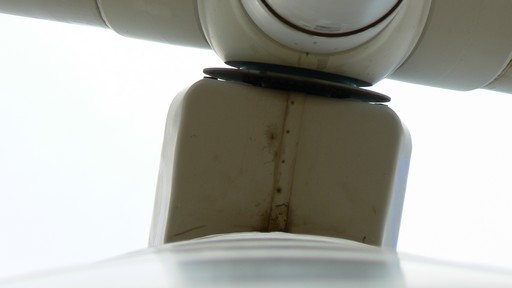

Turbine 1545
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1545

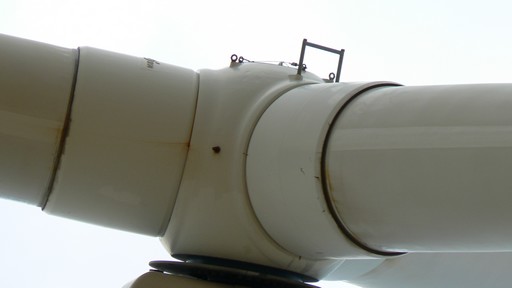

Turbine 1546
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1546

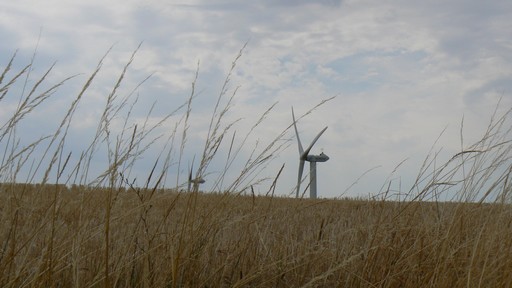

Turbine 1547
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1547
Turbine 1548
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1548

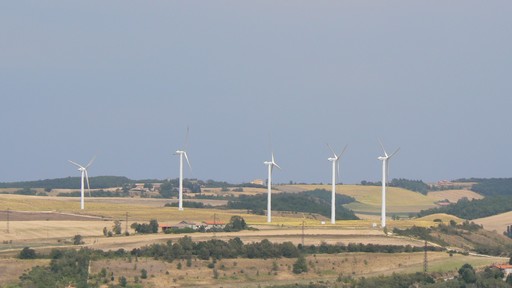

Turbine 1549
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1549

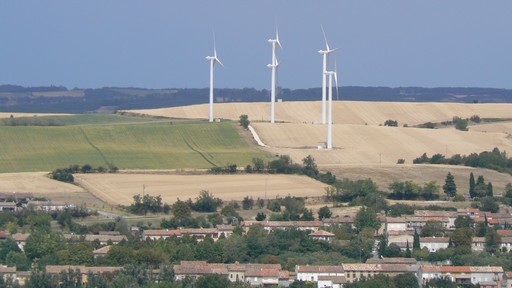

Turbine 1550
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1550

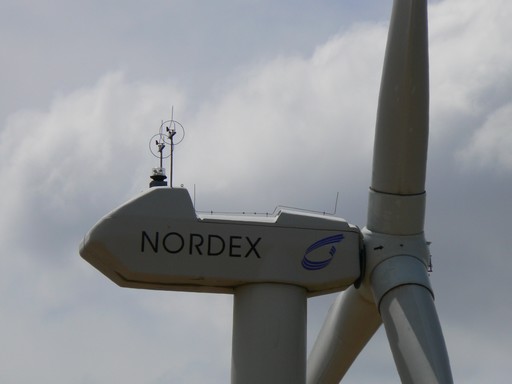

Turbine 1551
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1551

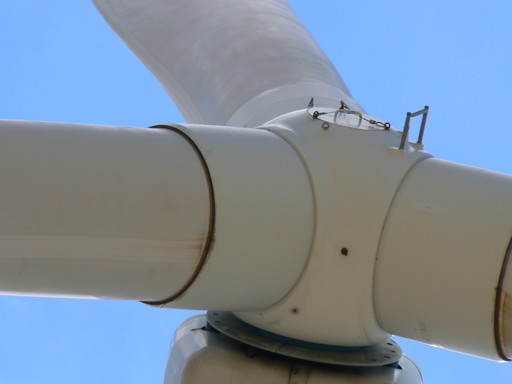

Turbine 1552
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1552

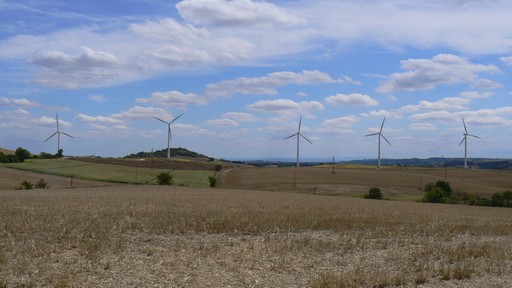

Turbine 1553
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1553

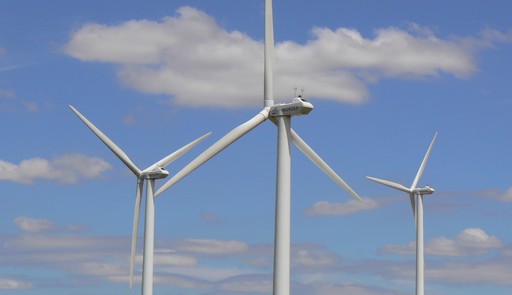

Turbine 1554
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1554

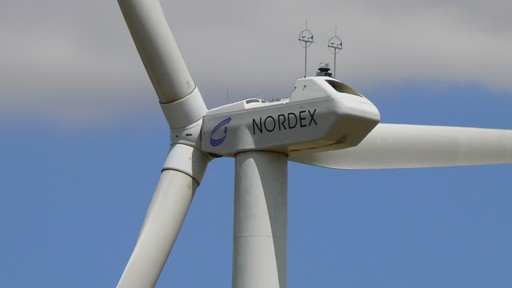

Turbine 1555
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1555

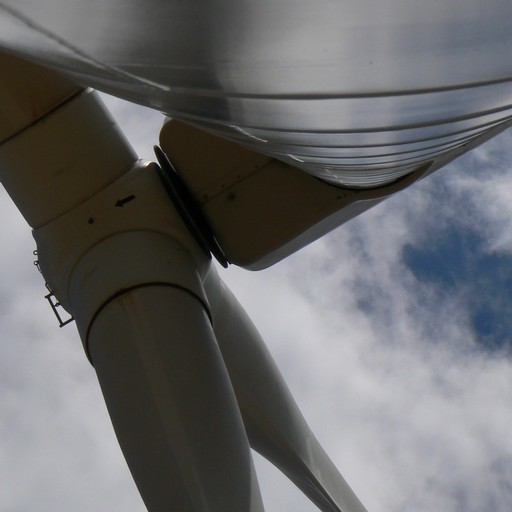

Turbine 1556
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1556

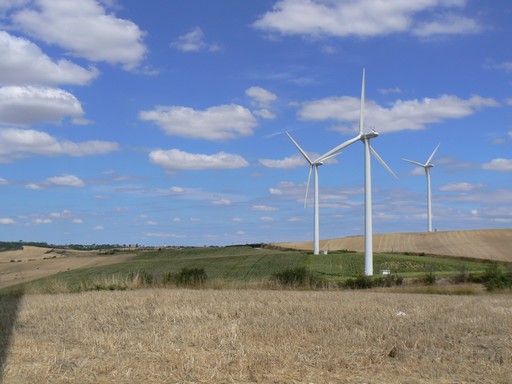

Turbine 1557
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1557

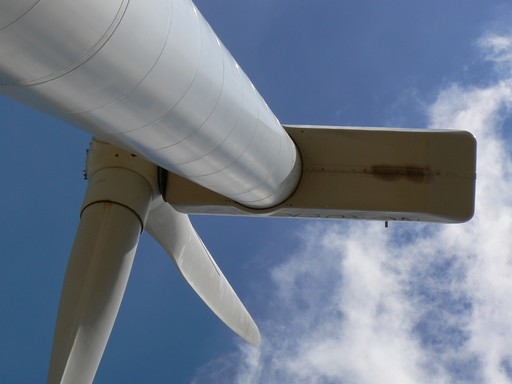

Turbine 1558
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1558

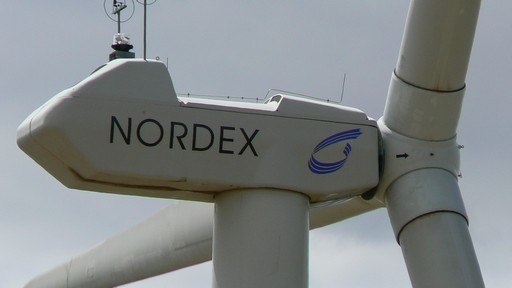

Turbine 1559
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1559

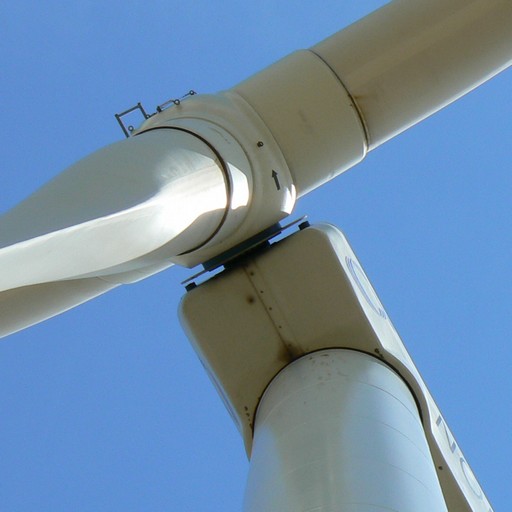

Turbine 1560
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1560

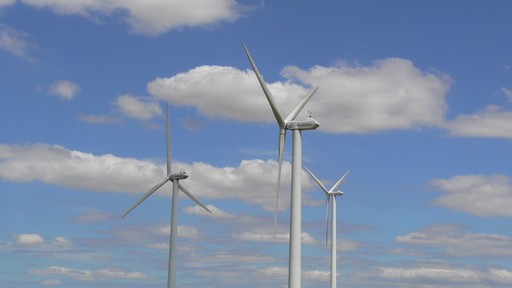

Turbine 1561
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1561

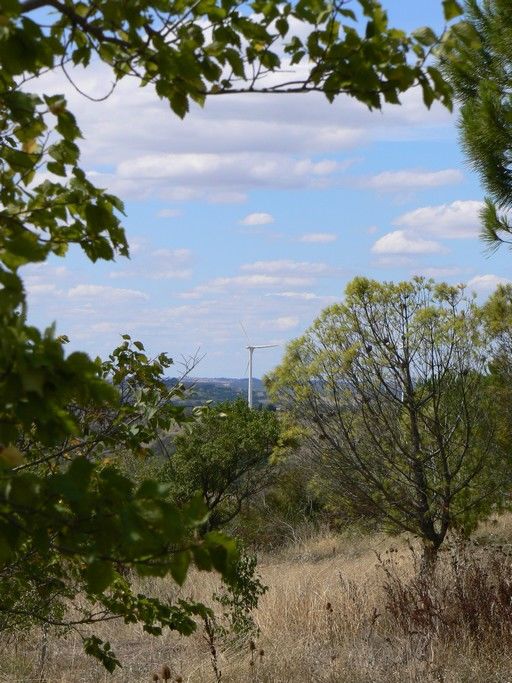

Turbine 1562
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1562
Turbine 1563
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1563

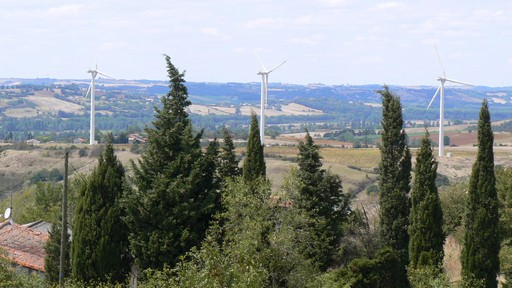

Turbine 1564
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1564

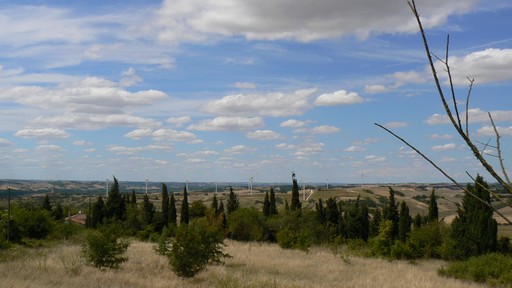

Turbine 1565
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1565

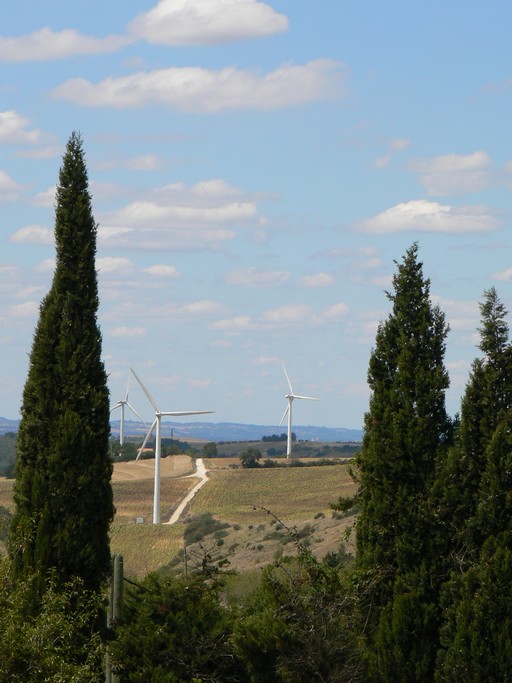

Turbine 1566
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1566

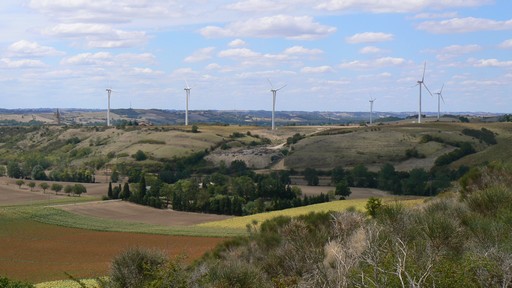

Turbine 1567
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1567

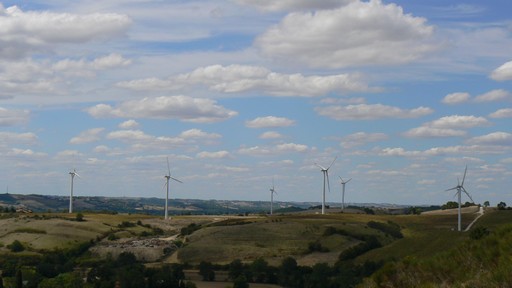

Turbine 1568
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1568

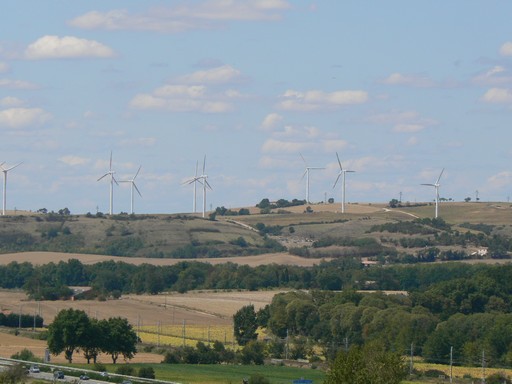

Turbine 1569
Author: Michaël Pierrot - Source: The Wind Power - License: All right reserved
Picture reference: 1569

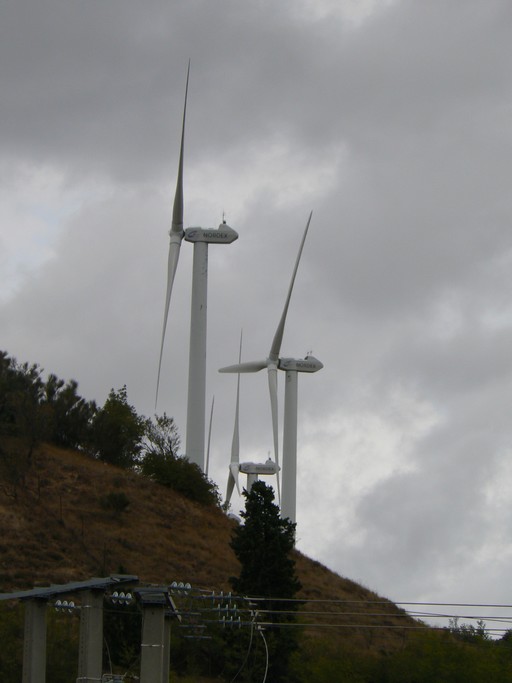

Turbine 1592
