General data

  • Manufacturer: Nordex (Allemagne)
  • Model: N131
  • Rated power: 3,000 kW
  • Rotor diameter: 131 m
  • No more available
  • Wind class: IEC IIIa (DIBt II)
  • Offshore model: no
  • Swept area: 13,479 m²
  • Specific area: 4.5 m²/kW
  • Number of blades: 3
  • Power control: Pitch
  • Commissioning: 2014

Rotor

  • Minimum rotor speed: 6,5 rd/min
  • Maximum rotor speed: 11,6 rd/min
  • Cut-in wind speed: 3 m/s
  • Rated wind speed: 11,5 m/s
  • Cut-off wind speed: 20 m/s

Generator

  • Type: ASYNC DF
  • Voltage: 660 V

Tower

  • Minimum hub height: 99 m
  • Maximum hub height: 134 m

N131 - Nordex - 3000 kW
Laurent Jobart - Alpha Wind

Power curve



(Calculated)


Wind farms in the database


Full list (51 wind farms)

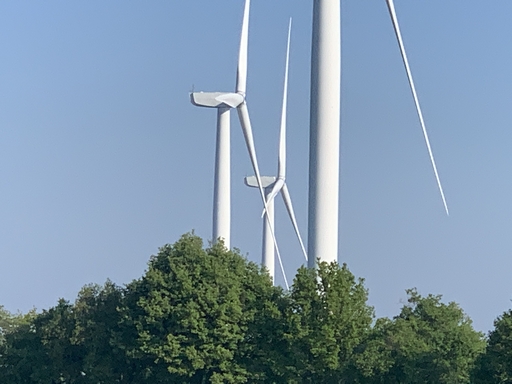

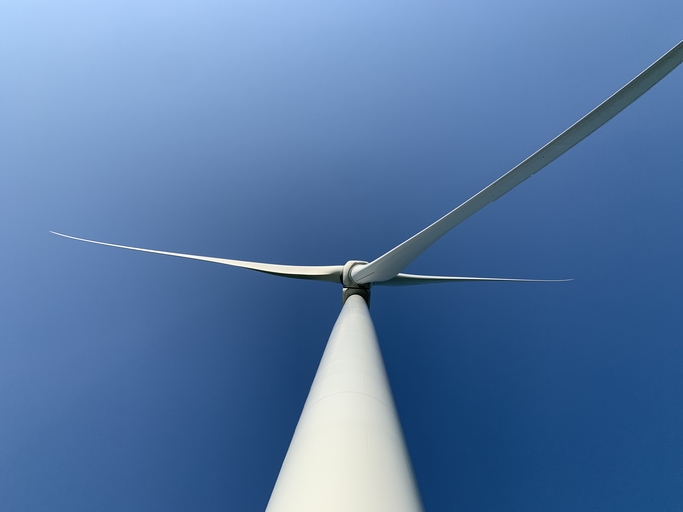

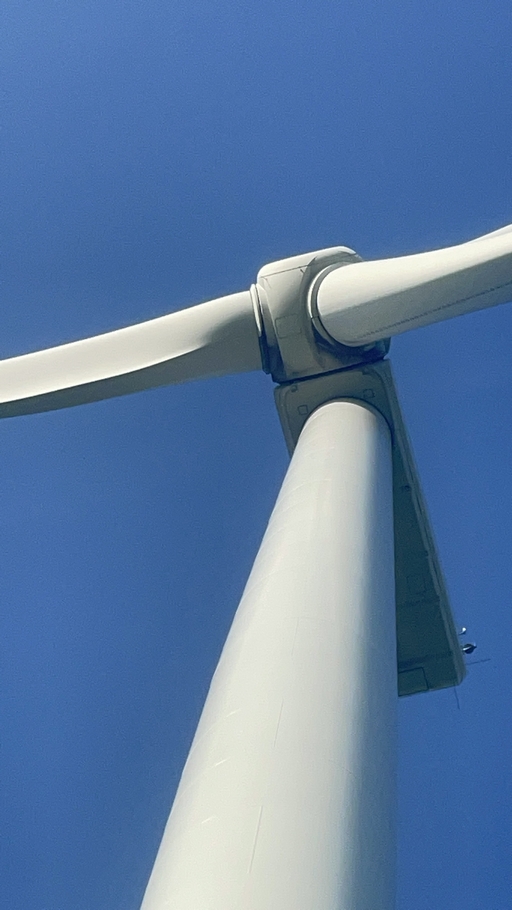

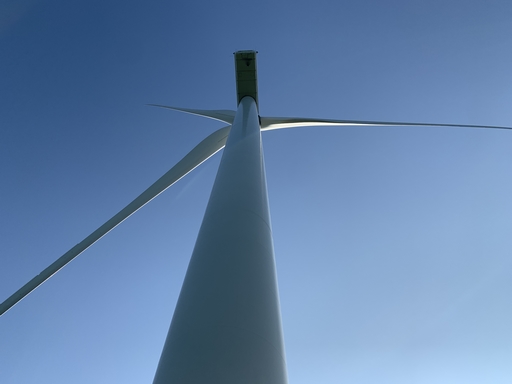

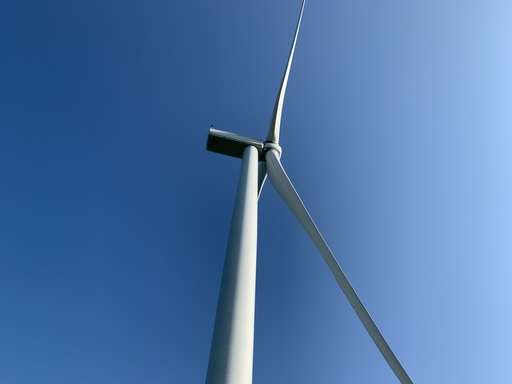

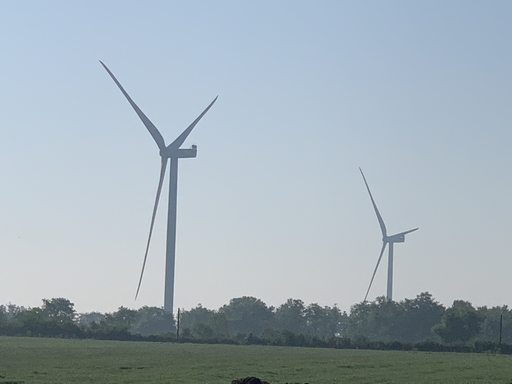

Pictures
