General data

  • Manufacturer: Vestas (Danemark)
  • Model: V136/3450
  • Product page
  • Rated power: 3,450 kW
  • Rotor diameter: 136 m
  • Available model
  • Wind class: IEC IIa (DIBt II)
  • Offshore model: no
  • Swept area: 14,527 m²
  • Specific area: 4.22 m²/kW
  • Number of blades: 3
  • Power control: Pitch
  • Commissioning: 2015

Rotor

  • Cut-in wind speed: 2,5 m/s
  • Rated wind speed: 11 m/s
  • Cut-off wind speed: 22 m/s

Gear box

  • Gear box: yes
  • Stages: 3

Generator

  • Number: 1

Tower

  • Minimum hub height: 112 m
  • Maximum hub height: 166 m

Power curve




Wind farms in the database


Full list (159 wind farms)



Pictures

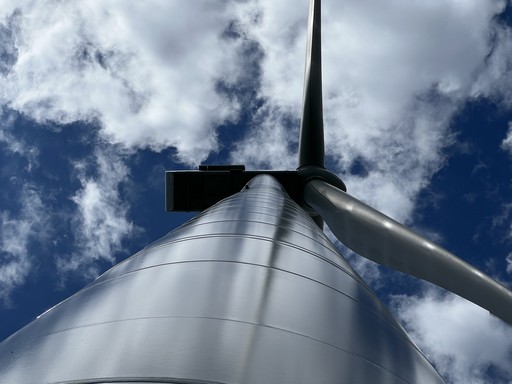

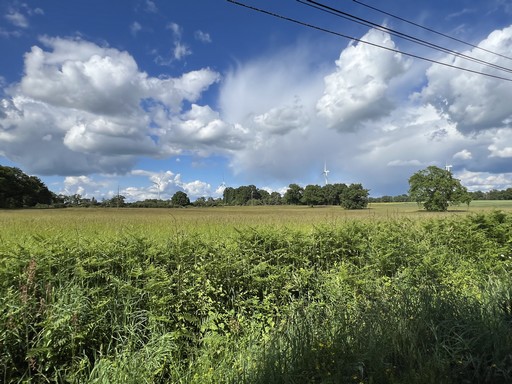

Turbine 15201
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 15201 - Date: 2023

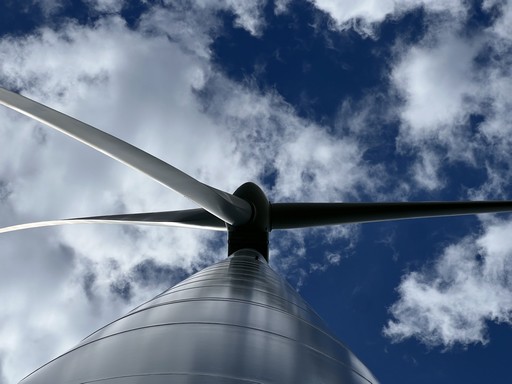

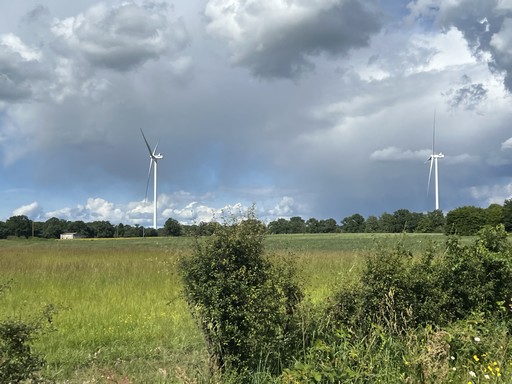

Turbine 15202
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 15202 - Date: 2023

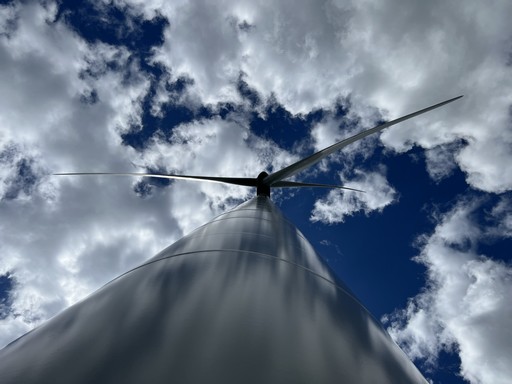

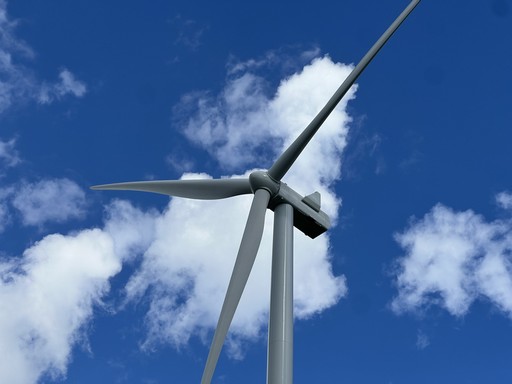

Turbine 15203
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 15203 - Date: 2023

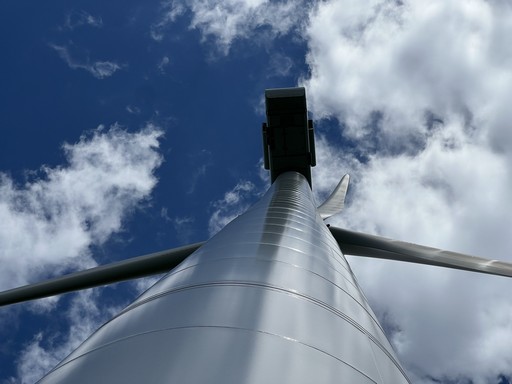

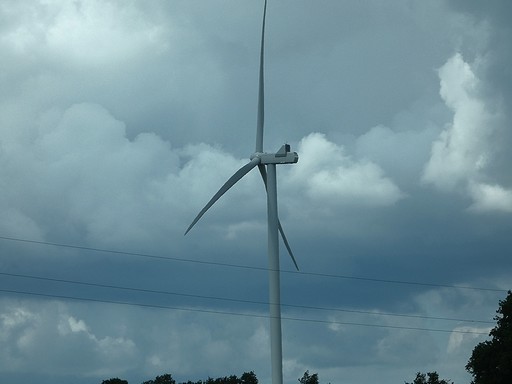

Turbine 15204
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 15204 - Date: 2023

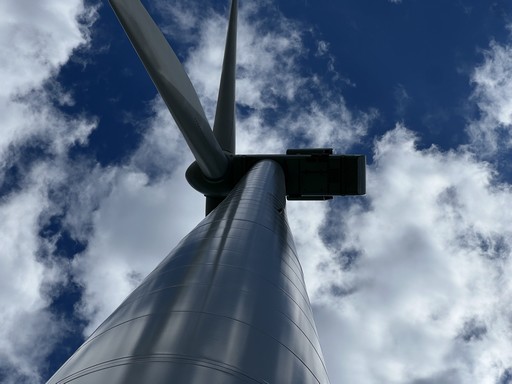

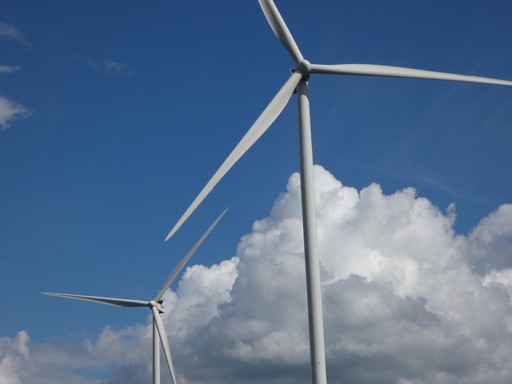

Turbine 15205
Author: Laurent Jobart - Source: Alpha Wind - License: All right reserved
Picture reference: 15205 - Date: 2023

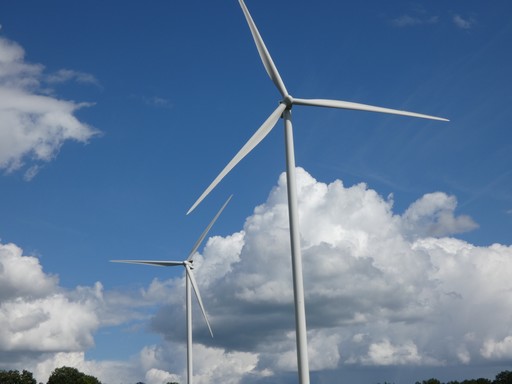

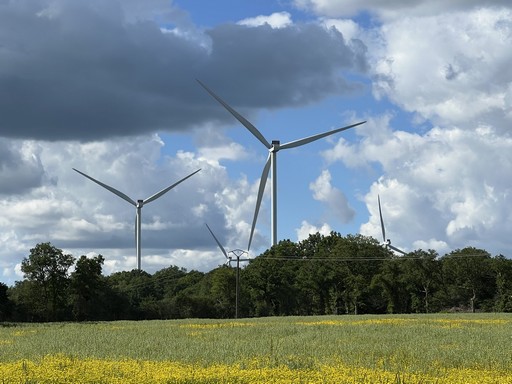

Turbine 15955
Author: Gabriel Govaert - License: All right reserved
Picture reference: 15955 - Date: 2023

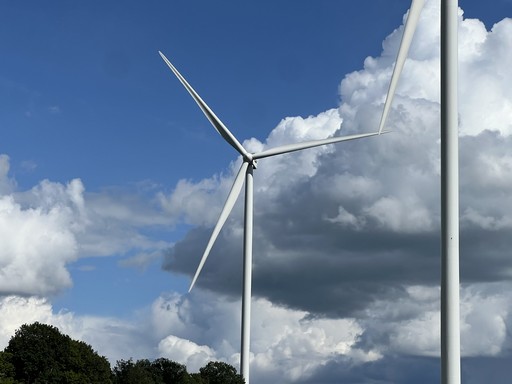

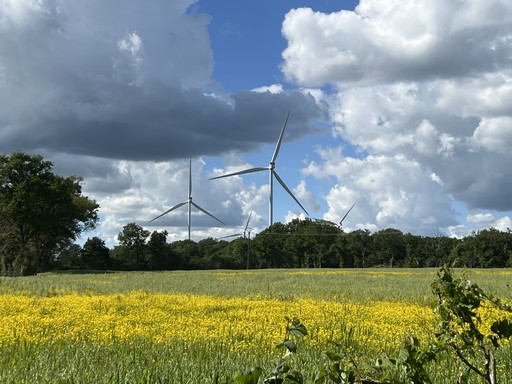

Turbine 15956
Author: Gabriel Govaert - License: All right reserved
Picture reference: 15956 - Date: 2023

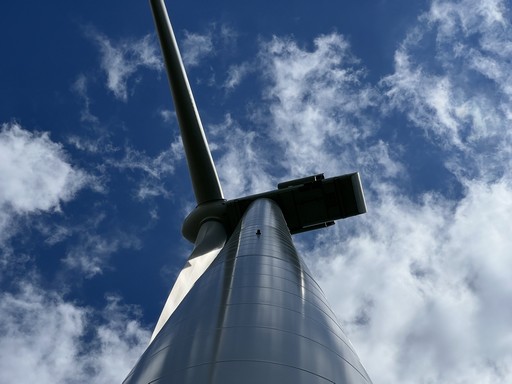

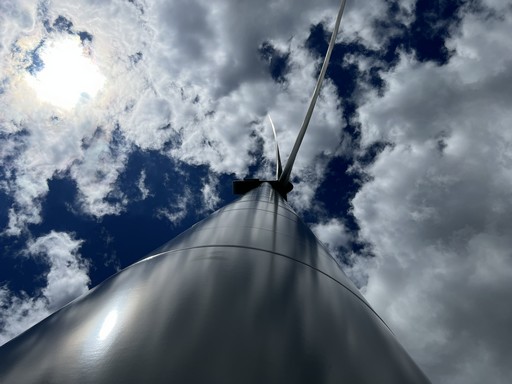

Turbine 15957
Author: Gabriel Govaert - License: All right reserved
Picture reference: 15957 - Date: 2023
Turbine 15958
Author: Gabriel Govaert - License: All right reserved
Picture reference: 15958 - Date: 2023
Turbine 15959
Author: Gabriel Govaert - License: All right reserved
Picture reference: 15959 - Date: 2023
Turbine 15960
Author: Gabriel Govaert - License: All right reserved
Picture reference: 15960 - Date: 2023
Turbine 15961
Author: Gabriel Govaert - License: All right reserved
Picture reference: 15961 - Date: 2023
Turbine 15962
Author: Gabriel Govaert - License: All right reserved
Picture reference: 15962 - Date: 2023
Turbine 15963
Author: Gabriel Govaert - License: All right reserved
Picture reference: 15963 - Date: 2023
Turbine 15964
Author: Gabriel Govaert - License: All right reserved
Picture reference: 15964 - Date: 2023
Turbine 15965
Author: Gabriel Govaert - License: All right reserved
Picture reference: 15965 - Date: 2023
Turbine 15966
Author: Gabriel Govaert - License: All right reserved
Picture reference: 15966 - Date: 2023
Turbine 16121
Author: Gabriel Govaert - License: All right reserved
Picture reference: 16121 - Date: 2024
Turbine 16122
Author: Gabriel Govaert - License: All right reserved
Picture reference: 16122 - Date: 2024
Turbine 16123
Author: Gabriel Govaert - License: All right reserved
Picture reference: 16123 - Date: 2024
Turbine 16124
Author: Gabriel Govaert - License: All right reserved
Picture reference: 16124 - Date: 2024
Turbine 16125
Author: Gabriel Govaert - License: All right reserved
Picture reference: 16125 - Date: 2024
Turbine 16126
Author: Gabriel Govaert - License: All right reserved
Picture reference: 16126 - Date: 2024
Turbine 16127
Author: Gabriel Govaert - License: All right reserved
Picture reference: 16127 - Date: 2024
Turbine 16128
Author: Gabriel Govaert - License: All right reserved
Picture reference: 16128 - Date: 2024
Turbine 16129
Author: Gabriel Govaert - License: All right reserved
Picture reference: 16129 - Date: 2024
Turbine 16130
Author: Gabriel Govaert - License: All right reserved
Picture reference: 16130 - Date: 2024
Turbine 16131
Author: Gabriel Govaert - License: All right reserved
Picture reference: 16131 - Date: 2024
Turbine 16132
Author: Gabriel Govaert - License: All right reserved
Picture reference: 16132 - Date: 2024


Update for this sheet: 8 November 2024
